Section 22 A/D Converter
Rev. 2.00 Sep. 24, 2008 Page 1096 of 1468
REJ09B0412-0200
AVCC
*1
*1
Vref
AN0 to AN7
AVSS
Notes:
Values are reference values.
1.
2. Rin: Input impedance
Rin*2
100
Ω
0.1 µF
0.01 µF
10 µF

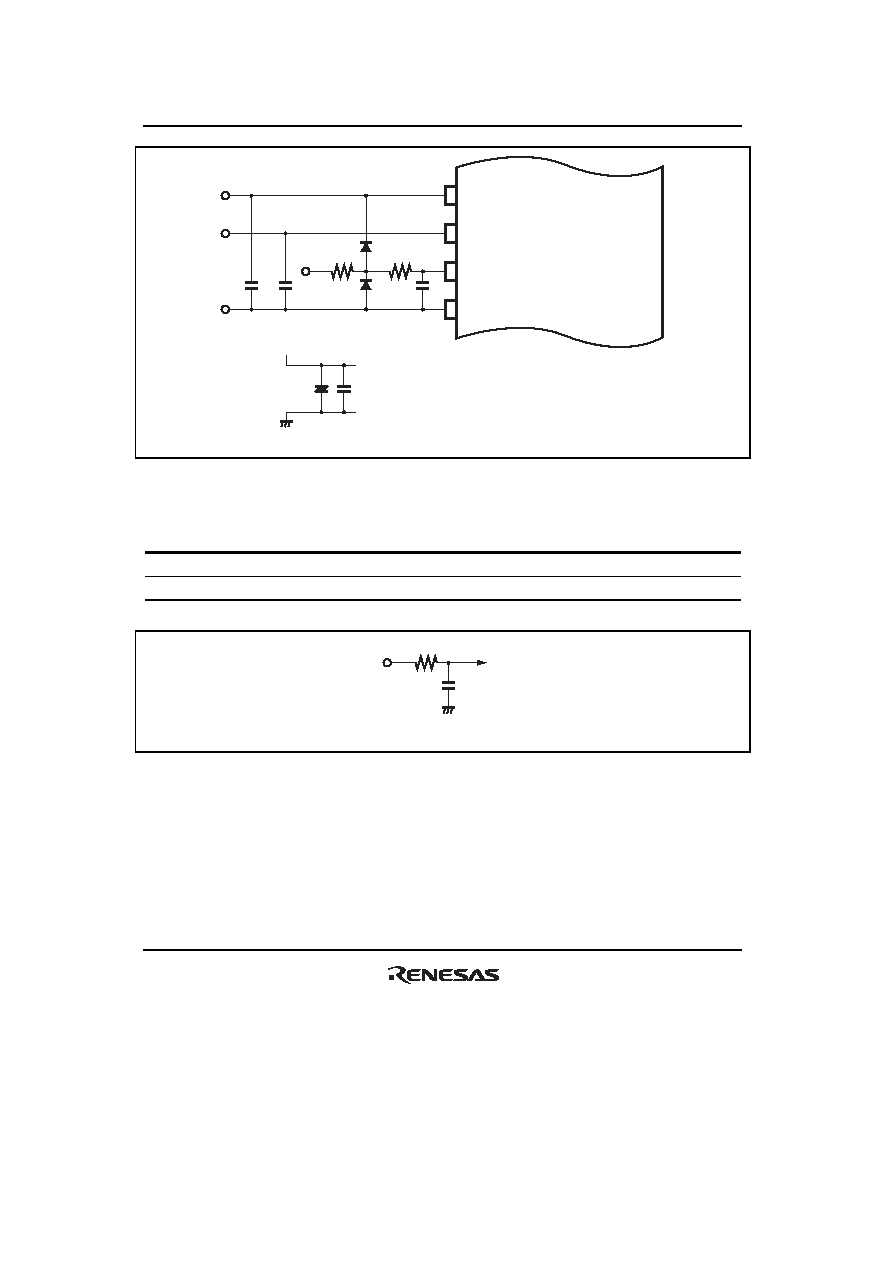

Figure 22.13 Example of Analog Input Protection Circuit
Table 22.8
Analog Pin Specifications
Item
Min.
Max.
Unit
Analog input capacitance
20
pF
Permissible signal source impedance
5
k
Ω
20 pF
To A/D converter
AN0 to AN7
5 k
Ω
Note: Values are reference values.
Figure 22.14 Analog Input Pin Equivalent Circuit
