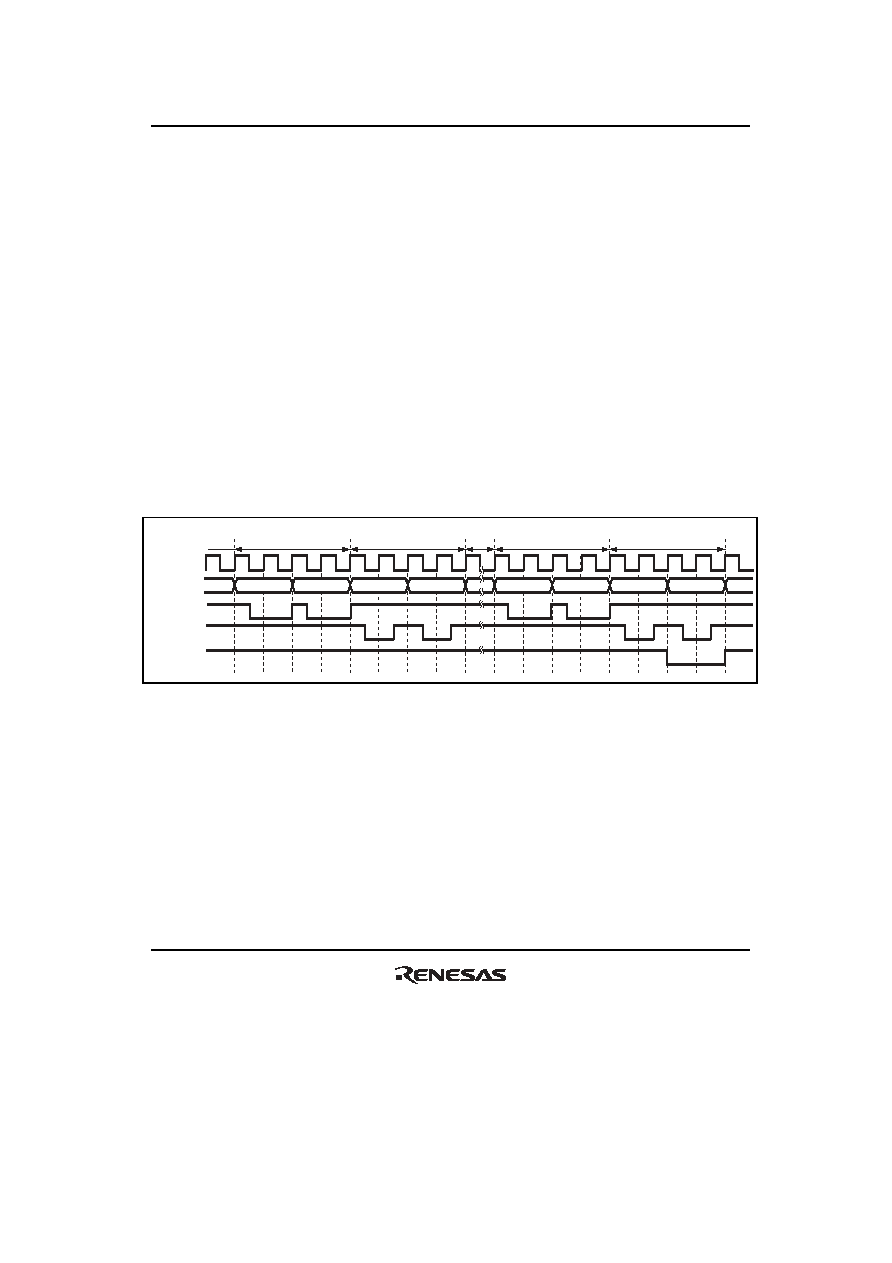

569 / 1504 page  Section 11 EXDMA Controller (EXDMAC) Rev. 2.00 Sep. 24, 2008 Page 537 of 1468 REJ09B0412-0200 11.6.3 Caution for Combining with Extended Repeat Area Function As with the block transfer mode, the address register value must be set in cluster transfer mode, so that the end of the cluster size coincides with the end of the extended repeat area range. When an extended repeat area overflow occurs during a cluster-size transfer in the cluster transfer mode, the extended repeat area overflow interrupt request is held pending until the end of a cluster-size transfer, and transfer overrun will occur. 11.6.4 Bus Cycles in Cluster Transfer Dual Address Mode (1) Cluster transfer mode In cluster transfer mode, a cluster-size transfer is processed in response to one transfer request. In an example shown in figure 11.61, the ETEND pin output is enabled, and word-size transfer is performed with 4-byte cluster size in cluster transfer mode from the external 16-bit, 2-state access space to the external 16-bit, 2-state access space. EXDMA read EXDMA read EXDMA write EXDMA write Bus release B φ Address bus LHWR, LLWR ETEND RD Figure 11.61 Example of Cluster Transfer Mode Transfer |
|
