Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 748 of 1468
REJ09B0412-0200

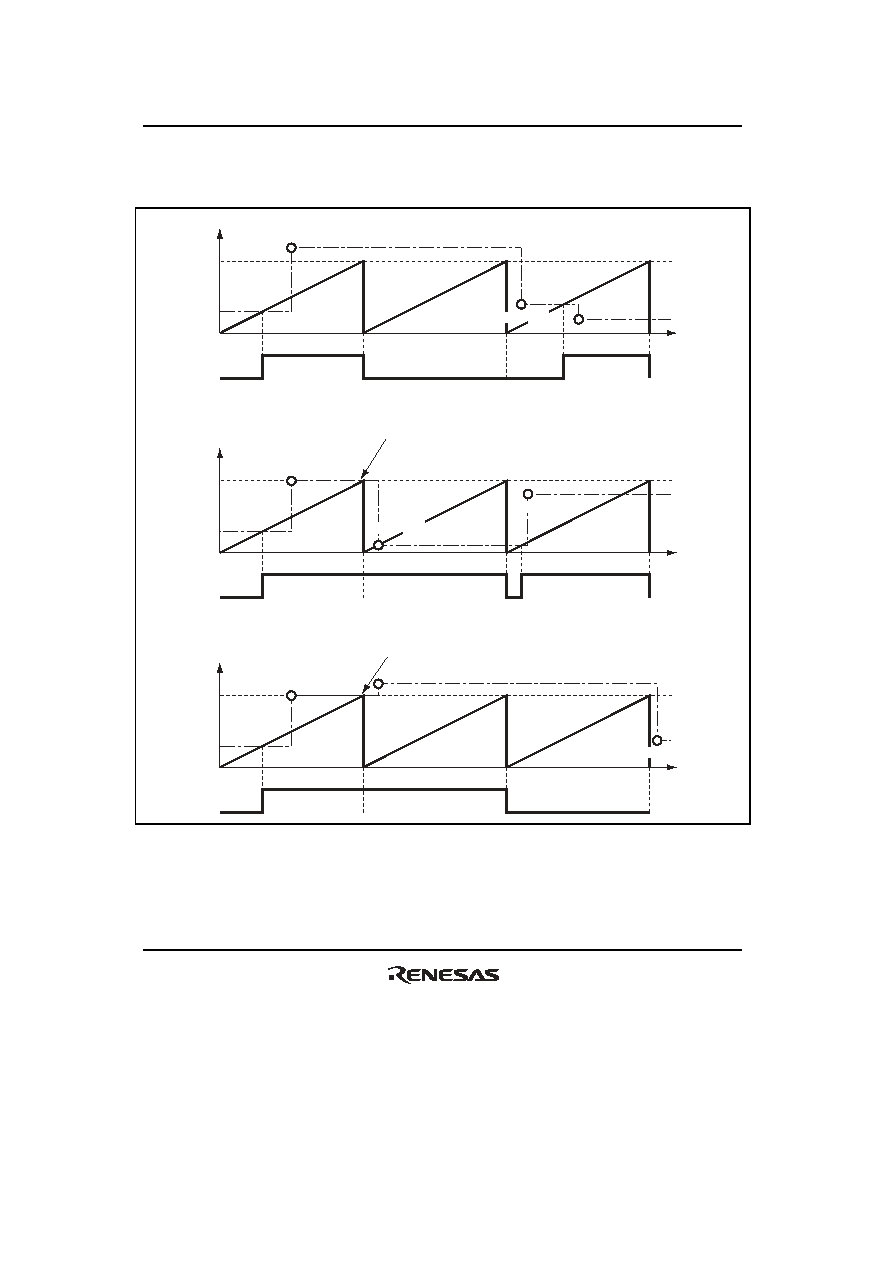

Figure 14.24 shows examples of PWM waveform output with 0% duty cycle and 100% duty cycle
in PWM mode.
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
0% duty
TGRB changed
TGRB
changed
TGRB changed
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
100% duty
TGRB changed
TGRB changed
TGRB changed
Output does not change when compare matches in cycle register
and duty register occur simultaneously
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
100% duty
TGRB changed
TGRB changed
TGRB changed
Output does not change when compare matches in cycle register
and duty register occur simultaneously
0% duty
Figure 14.24 Example of PWM Mode Operation (3)
