Section 15 Programmable Pulse Generator (PPG)
Rev. 2.00 Sep. 24, 2008 Page 808 of 1468
REJ09B0412-0200
15.4.8
Pulse Output Triggered by Input Capture
Pulse output of PPG0 can be triggered by TPU0 input capture as well as by compare match. If
TGRA functions as an input capture register in the TPU0 channel selected by PCR, pulse output
will be triggered by the input capture signal.

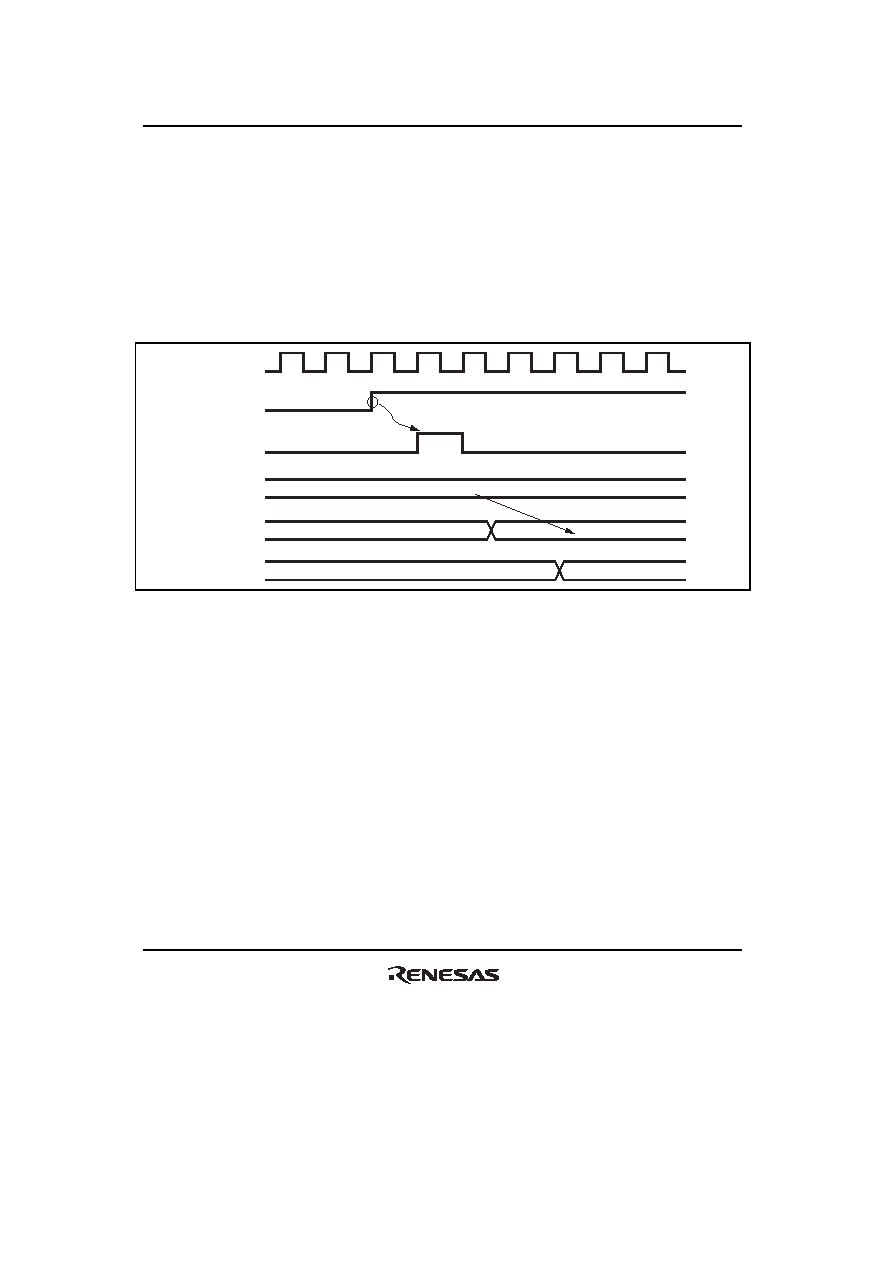

Figure 15.14 shows the timing of this output.
PPG1 cannot be used to trigger pulse output by input capturer.
P
φ
N
MN
TIOC pin
Input capture
signal
NDR
PODR
MN
PO
Figure 15.14 Pulse Output Triggered by Input Capture (Example)
