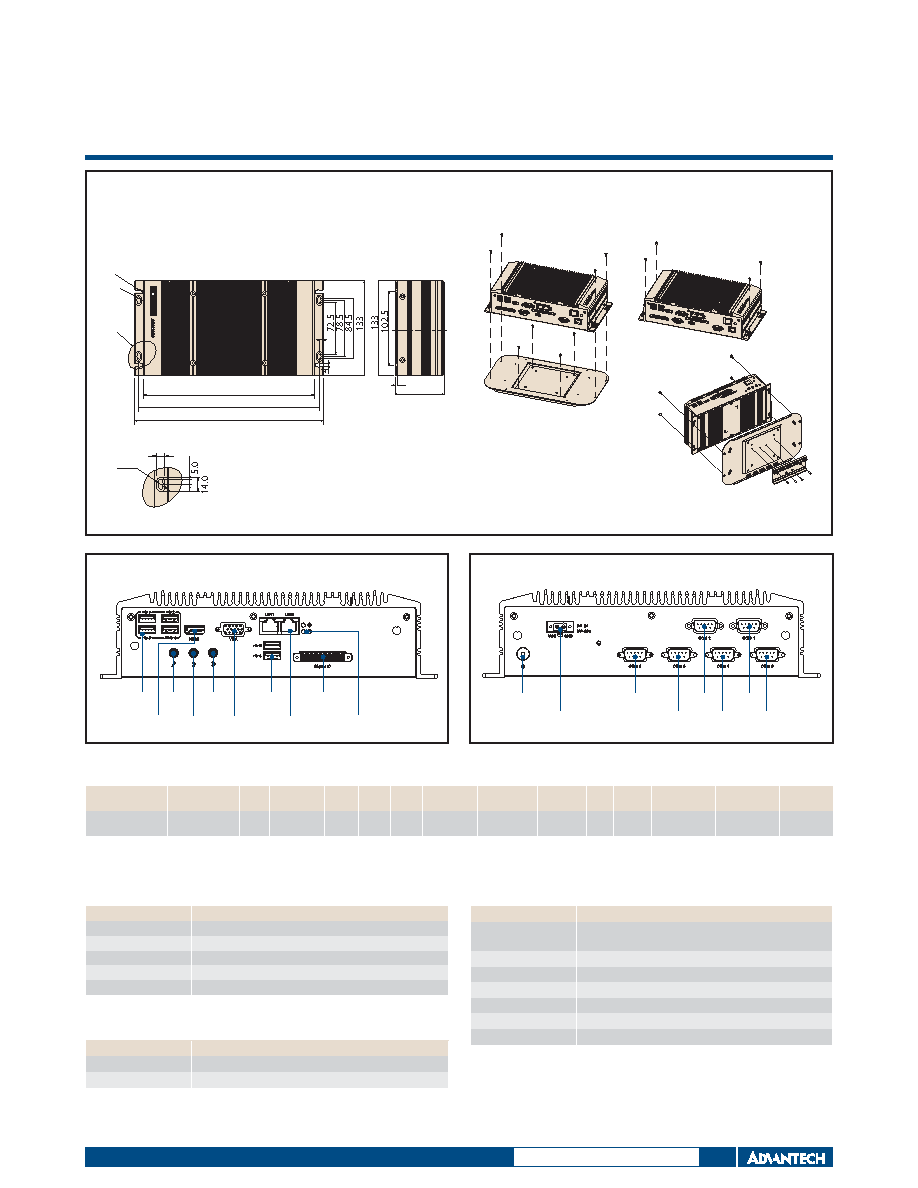

Dimensions

Unit: mm

ARK-2121F

Packing List

Part Number

Description

-

1 x ARK-2121 Unit

-

1 x User Manual (Simplified Chinese)

-

1 x China RoHS

1700009001

1x 2-pin Phoenix to DC-Jack power cable

1960069484N000

2 x LAN clip

Embedded OS

Part Number

Description

2070013717

WES7E 64bit ENG/JP/TC/SC

2070013716

WES8E 64bit ENG/JP/TC/SC

Optional Items

Part Number

Description

96PSA-A65W19P2-2

AC-to-DC Adapter, DC 19V/3.42A 65W, 0 ~ 40° C for

Home and Office Use

1700001524

Power cable 3-pin 183cm, USA type

170203183C

Power cable 3-pin 183cm, EU type

170203180A

Power cable 3-pin 183cm, UK type

AMK-V004E

VESA mounting kit

AMK-R004E

DIN-rail mounting kit

1652003235

10pin DIO Plug in block

Front Panel External I/O Mechanical Layout/Drawing

Rear Panel External I/O Mechanical Layout/Drawing

Ø4

Ø2.5

6

Detail A

Ø4.6

8.0

264.5

238.2

252.5

Detail A

68.4

3.5

Ordering Information

Part No.

CPU

VGA HDMI/DP* GbE

USB

2.0

USB

3.0

RS-232/

422/485

Audio

Full-size

MiniPCIe SIM mSATA

2.5" SATA II

HDD Bay

Power Input

Operating

Temp.

ARK-2121F-U0A1E Intel Celeron

J1900 2.0GHz

Yes

Yes

2

5

1

6

Lin-out,

Line-in, MIC

2

1

1

1

-20 ~ 70° C

Note: Memory, storage and operating system bundled by request.

*DP is support by project only.

HDMI

HDD LED

PWR LED

MIC

LINE-IN

LAN1 LAN2

Digital IO

USB6

USB5

VGA

USB1 USB2

USB3 USB4

LINE-OUT

COM2

COM1

COM3

COM4

COM5

COM6

ON/OFF

DC INPUT

VESA mount

Wall mount

DIN Rail
