Shielded High Current Power Choke

PCXA603

15

ALLIED COMPONENTS INTERNATIONAL

949-356-1780

www.alliedcomponents.com

RoHS

04/13/2017

PAGE 3 OF 3

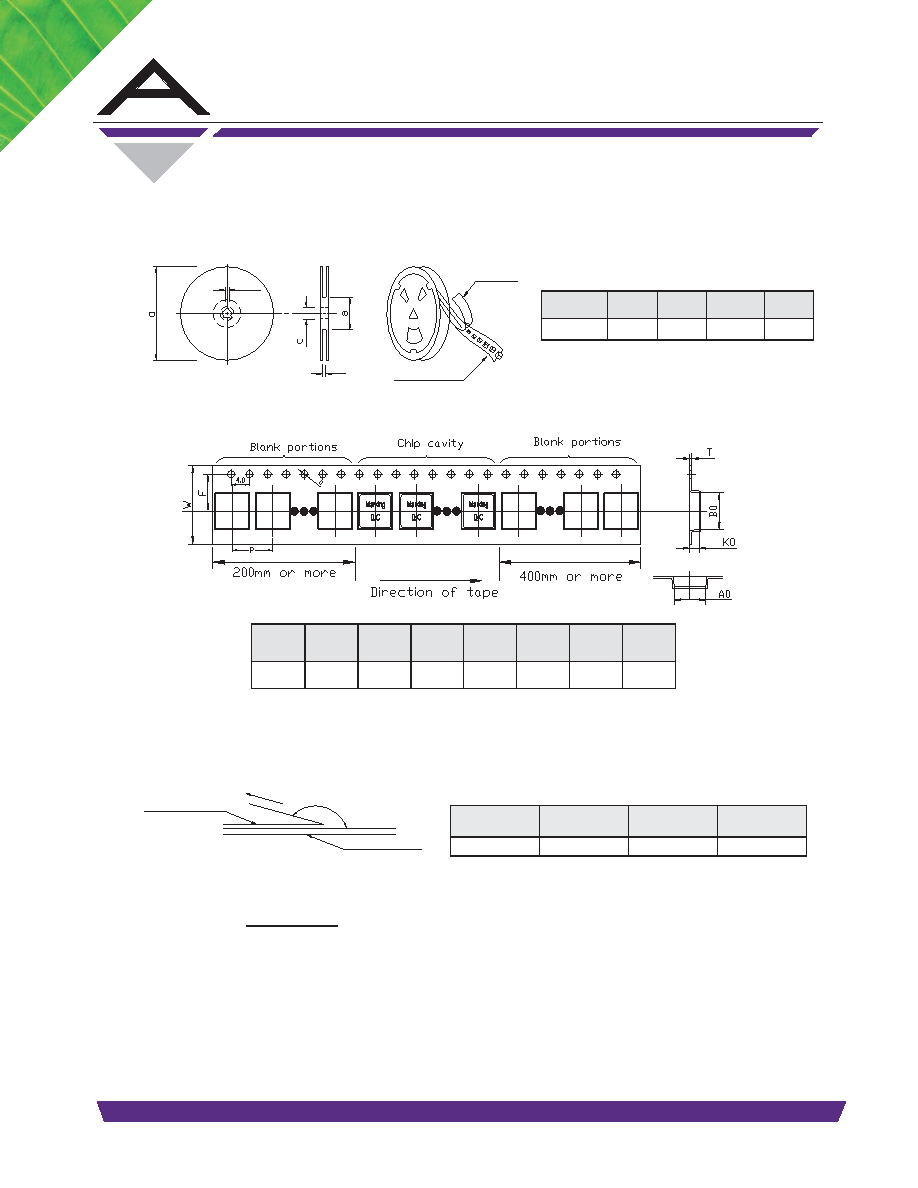

Reel Dimension

Tape Dimension

Tearing Off Force

Top cover tape

165° to180°

Base tape

F

2.0±0.5

EMBOSSED CARRIER

A

COVER TAPE

Type

A(mm) B(mm) C(mm) D(mm)

330x12mm

100±2

13+0.5/-0.2

330

The force for tearing off cover tape is 10 to 130 grams in the arrow

direction under the following conditions(referenced

ANSI/EIA-481-D-2008 of 4.11 standard).

Room Temp.

( )

℃

Room Humidity

(%)

Room atm

(hPa)

Tearing Speed

mm/min

Bo(mm) Ao(mm) Ko(mm) P(mm) W(mm) F(mm) T(mm) D(mm)

16.4+2/-0

PackagingInformation

6.8±0.1

7.0±0.1

3.3±0.1

12.0±0.1

16.±0.3

7.5±0.1

0.35±0.05

1.5±0.1

5~35

45~85

860~1060

300

Application Notice

‧

Storage Conditions

To maintain the solderability of terminal electrodes:

1. PCXA603Series meets IPC/JEDEC J-STD-020D standard-MSL, level 1.

2. Temperature and humidity conditions: Less than 40℃ and 60% RH.

3. Recommended products should be used within 12 months form the time of delivery.

4. The packaging material should be kept where no chlorine or sulfur exists in the air.

‧

Transportation

1. Products should be handled with care to avoid damage or contamination from perspiration and skin oils.

2. The use of tweezers or vacuum pick up is strongly recommended for individual components.

3. Bulk handling should ensure that abrasion and mechanical shock are minimized.
