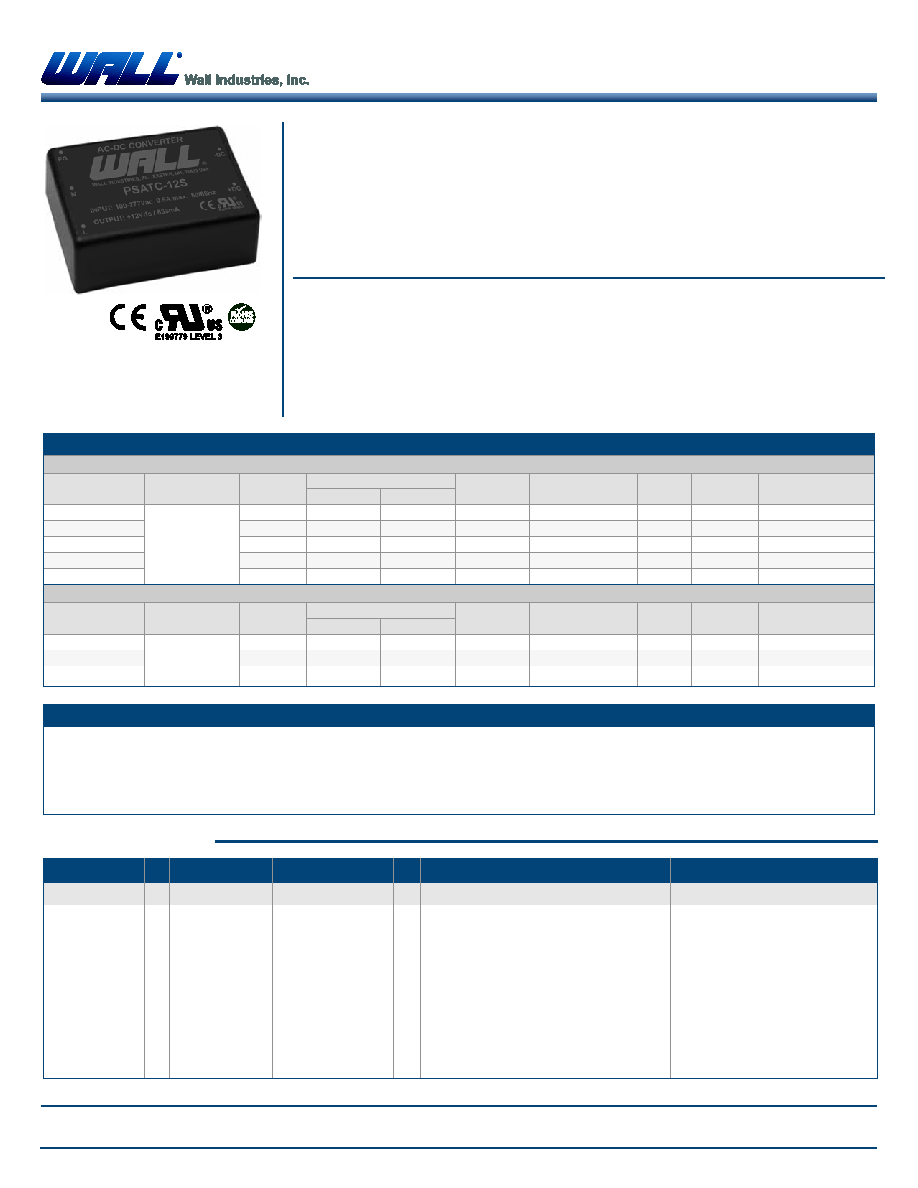

Rev H

PSATC SERIES

10 Watt AC/DC Encapsulated PCB Mount Power

Supplies

09/03/2013

Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-

9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

Page 1 of 5

Size:

Weight:

2.52 x 1.77 x 0.85 inches 3.25oz (92g)

64.0 x 45.0 x 21.5 mm

FEATURES

DESCRIPTION

The PSATC series of AC/DC switching power supplies provides 10 watts of output power in a

2.52” x 1.77” x 0.85” encapsulated PCB mountable package. This series consists of single and

dual output models with a universal input range of 90-264VAC (120-370VDC). Some features

include low ripple and noise, -25°C to +70°C operating temperature range, and over power, over

voltage, and short circuit protection. The PSATC series also has two types of screw terminal

mechanical options and an extended operating temperature option available. All models are RoHS

compliant and have UL/cUL and CE safety approvals.

MODEL SELECTION TABLE

SINGLE OUTPUT MODELS

Model Number

Input Voltage

Output

Voltage

Output Current

Line

Regulation

Load Regulation

(5% - 100%)

Output

Power

Efficiency

Maximum

Capacitive Load

PSATC-3.3S

90~264 VAC

(120~370

VDC)

3.3 VDC

4%

3000mA

±0.5%

±1%

10W

65%

70,000µF

PSATC-5S

5 VDC

5%

2000mA

±0.5%

±1%

10W

71%

35,

000μF

PSATC-12S

12 VDC

5%

833mA

±0.5%

±1%

10W

76%

11,

000μF

PSATC-15S

15 VDC

3%

666mA

±0.5%

±1%

10W

75%

70

00μF

PSATC-24S

24 VDC

5%

426mA

±0.5%

±1%

10W

75%

23

00μF

DUAL OUTPUT MODELS

Model Number

Input Voltage

Output

Voltage

Output Current

Line

Regulation

Load Regulation

(5% - 100%)

Output

Power

Efficiency

Maximum

Capacitive Load

PSATC-5D

90~264 VAC

(120~370

VDC)

±5 VDC

1%

±800mA

±0.5%

±1%

8W

73%

±22,000µF

PSATC-12D

±12 VDC

3%

±380mA

±0.5%

±1%

10W

75%

±3000µF

PSATC-15D

±15 VDC

1%

±300mA

±0.5%

±1%

10W

74%

±2000µF

NOTES

1. Some models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will

not damage these devices; however, they may not meet all listed specifications.

2. For -40°C to +70°C extended operating temperature range please add the suffix –E1 to the model number (Ex: PSATC-12S-E1).

3. Screw terminal mechanical options available (see page 4). Please call factory for ordering details.

Due to advances in technology, specifications subject to change without notice.

MODEL NUMBER SET

PSATC

-

12

S

-

E1

A2

Series Name

Output Voltage

Output Quantity

Operating Temperature Options

Screw Terminal Options

3.3: 3.3 VDC

S: Single Output

None:

-25°C to +70°C Operating

Temp.

None:

Encapsulated PCB

Mount

5: 5 VDC

E1:

-40°C to +70°C Operating

Temp.

A2: See page 4

12: 12 VDC

A5: See page 4

15: 15 VDC

24: 24 VDC

5: ±5 VDC

D: Dual Output

12: ±12 VDC

15: ±15 VDC
