EV3385-R-00A: 4 STRING WHITE LED CONTROLLER WITH I
2C INTERFACE
EV3385-R-00A Rev.1.1
www.MonolithicPower.com
4
5/21/2015
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2015 MPS. All Rights Reserved.

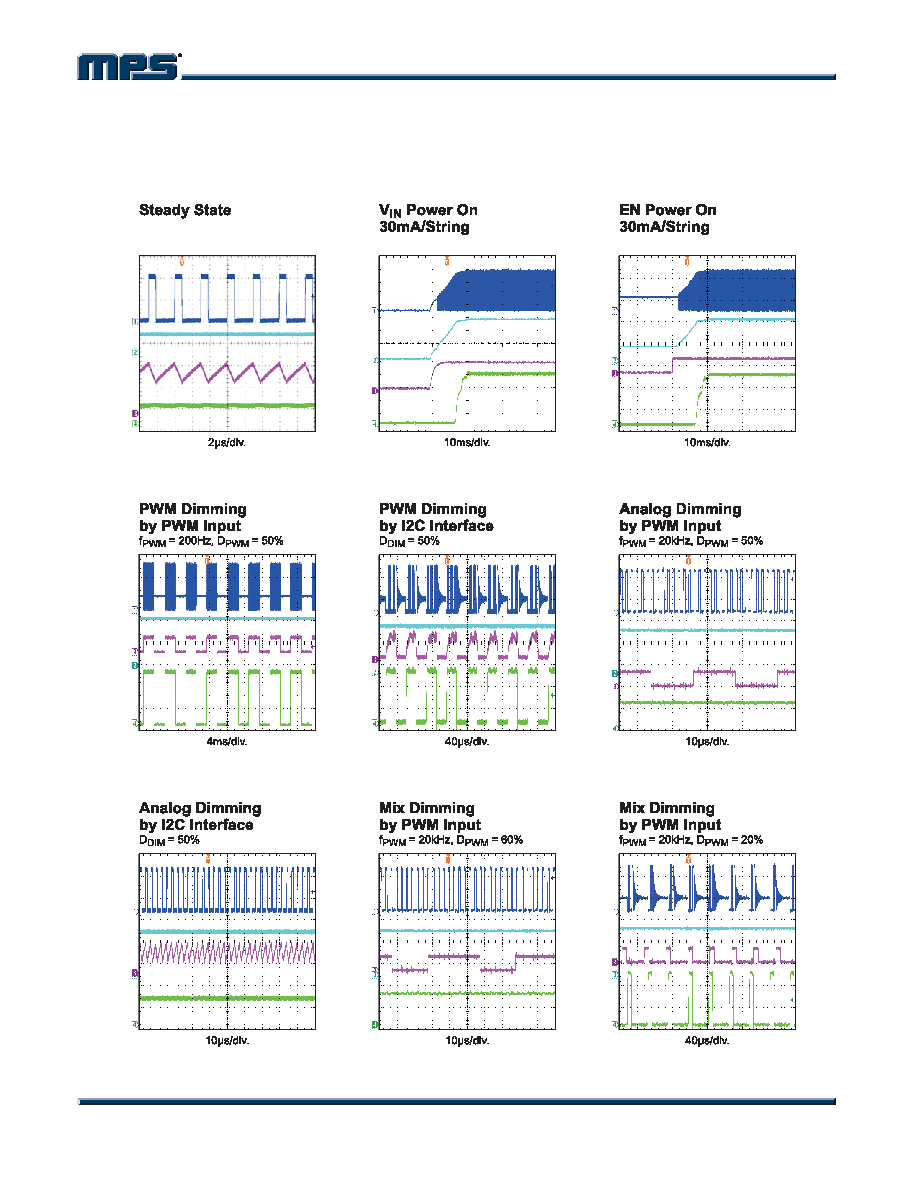

EVB TEST RESULTS
Performance waveforms are tested on the evaluation board.
VIN =12V, VEN = 3.3V, 120mA/string, 4string, 14LEDs, TA = 25°C, unless otherwise noted.
VSW
20V/div.
VOUT
50V/div.
IL
1A/div.
ILED
500mA/div.
VSW
20V/div.
VOUT
20V/div.
VIN
10V/div.
IL
50mA/div.
VSW
20V/div.
VOUT
20V/div.
VEN
5V/div.
ILED
50mA/div.
VSW
20V/div.
VOUT
20V/div.
VPWM
5V/div.
ILED
200mA/div.
VSW
20V/div.
VOUT
20V/div.
VPWM
5V/div.
ILED
200mA/div.
VSW
20V/div.
VOUT
20V/div.
IL
2A/div.
ILED
200mA/div.
VSW
20V/div.
VOUT
20V/div.
IL
1A/div.
ILED
200mA/div.
VSW
20V/div.
VOUT
20V/div.
VPWM
5V/div.
ILED
200mA/div.
VSW
20V/div.
VOUT
20V/div.
VPWM
5V/div.
ILED
200mA/div.
