ADRF6516
Data Sheet
Rev. C | Page 14 of 29
352
354
356
358
360
362
364
366
368
370
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
DIGITAL GAIN = 000
DIGITAL GAIN = 111
BANDWIDTH = 31MHz

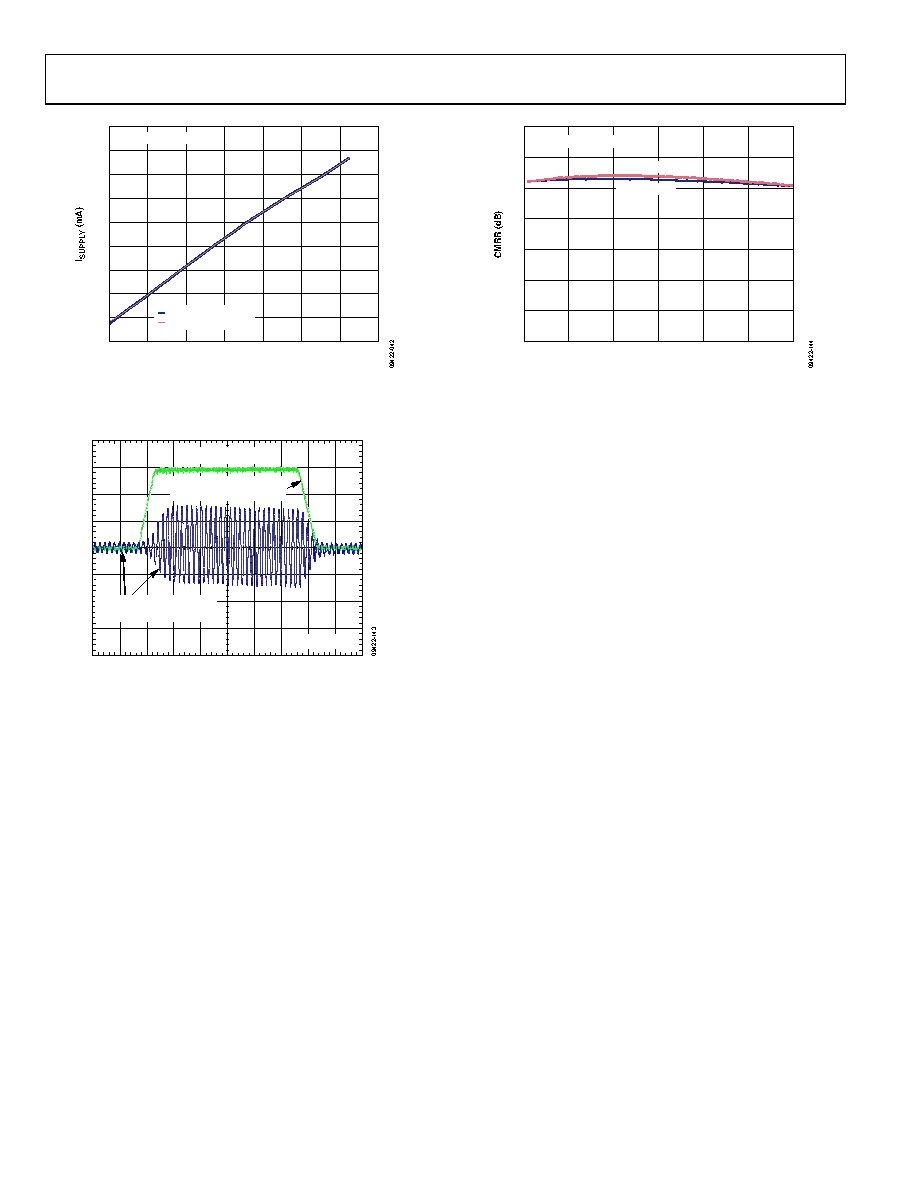

Figure 41. Current Consumption at Minimum and Maximum Digital Gain
vs. Temperature (Bandwidth Setting = 31 MHz, Gain = 30 dB)
28MHz SIGNAL = 60mV p-p
TO 600mV p-p
200ns/DIV
20dB GAIN STEP
VGAIN = 750mV TO 450mV
BANDWIDTH = 31MHz
Figure 42. Gain Step Response
0
10
20
30
40
50
60
70
0
5
10
15
20
25
30
FREQUENCY (MHz)
BANDWIDTH = 31MHz
GAIN = 20dB
GAIN = 40dB
Figure 43. Common-Mode Rejection Ratio (CMRR) vs. Frequency
(Bandwidth Setting = 31 MHz)
