HMC974LC3CTR-R5 Datasheet(PDF) 11 Page - Analog Devices

Part # HMC974LC3CTR-R5
Description  High Speed, 10 GHz Window Comparator
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

HMC974LC3CTR-R5 Datasheet(HTML) 11 Page - Analog Devices

Back Button HMC974LC3CTR-R5 Datasheet HTML 4Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 5Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 6Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 7Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 8Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 9Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 10Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 11Page - Analog Devices HMC974LC3CTR-R5 Datasheet HTML 12Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 11 / 12 page
background image
Data Sheet
HMC974LC3C
Rev. E | Page 11 of 12
1
2
3
4
12
11
10
9
C6
100pF
TP4
C5
100pF
C7
330pF
C13
4.7µF
J1
VCCI
C8
100pF
JP1
TP1
RT
J2-WIN
TP2-WIT
C1
100pF
JP2
C9
100pF
JP3
TP3
RB
J1
VCCI
J1
VCCI
1
2
3
4
5
6
7
8
C10
100pF
J6
LE
J7
LE
J1
VEE
C14
4.7µF
C11
330pF
C12
4.7µF
C4
330pF
C2
100pF
C3
100pF
C15
100pF
J1
VCCO
J1
VEE
J3
ORB
J4
WOUTB
J5
URB
J1
VCCO
J8
GND
VEE
GND
VEE
VCC0
VEE
JP8
SLUG
VEE
PACKAGE
BASE

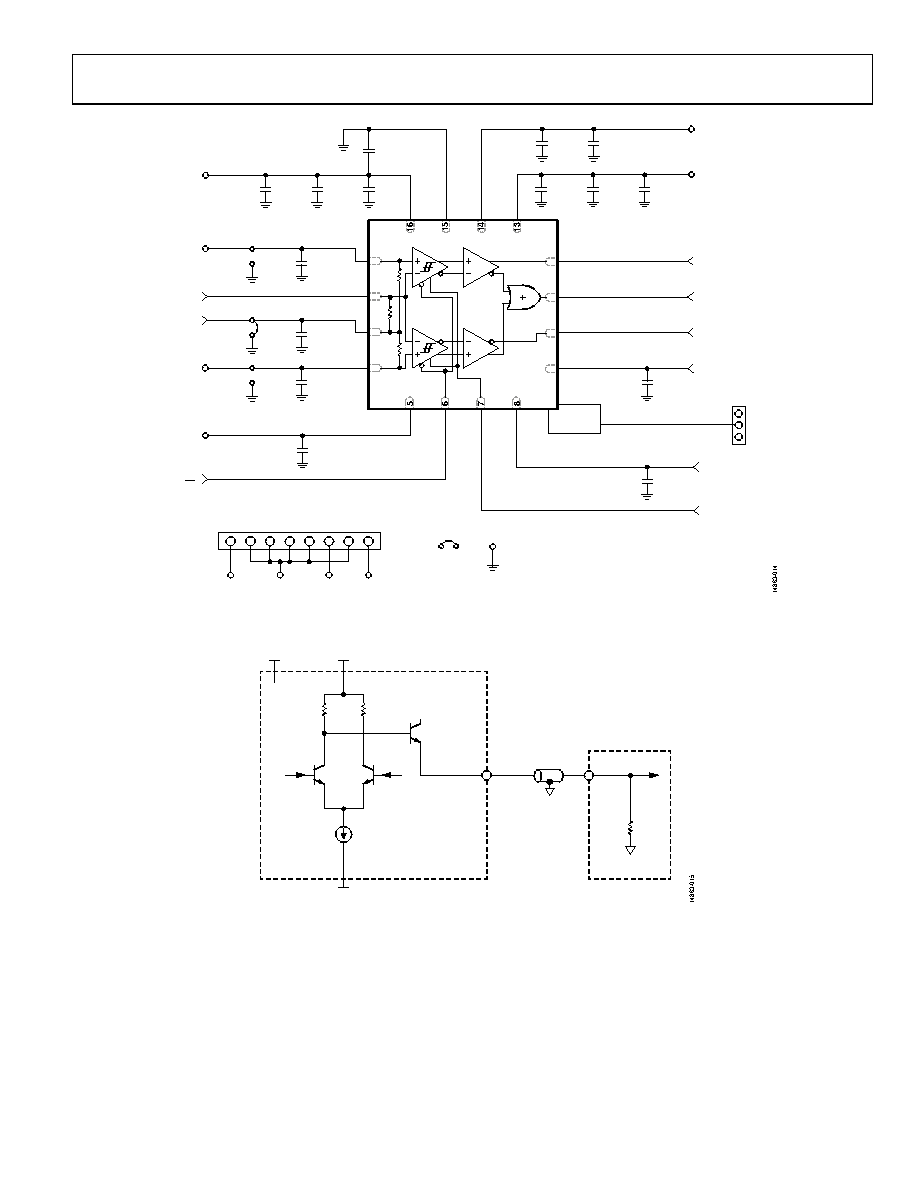

Figure 14. Evaluation Board Schematic
50
Ω
50
Ω
GND
ORB,
WOUTB,
URB
HMC974 10GHz
WINDOW COMPARATOR
VCM_OUT
~0.9V
VEE = –3.0V
OSCILLOSCOPE INPUT
VCCO = +2.0V
VCCI = +3.3V
Figure 15. Typical Application Circuit
