www.ti.com

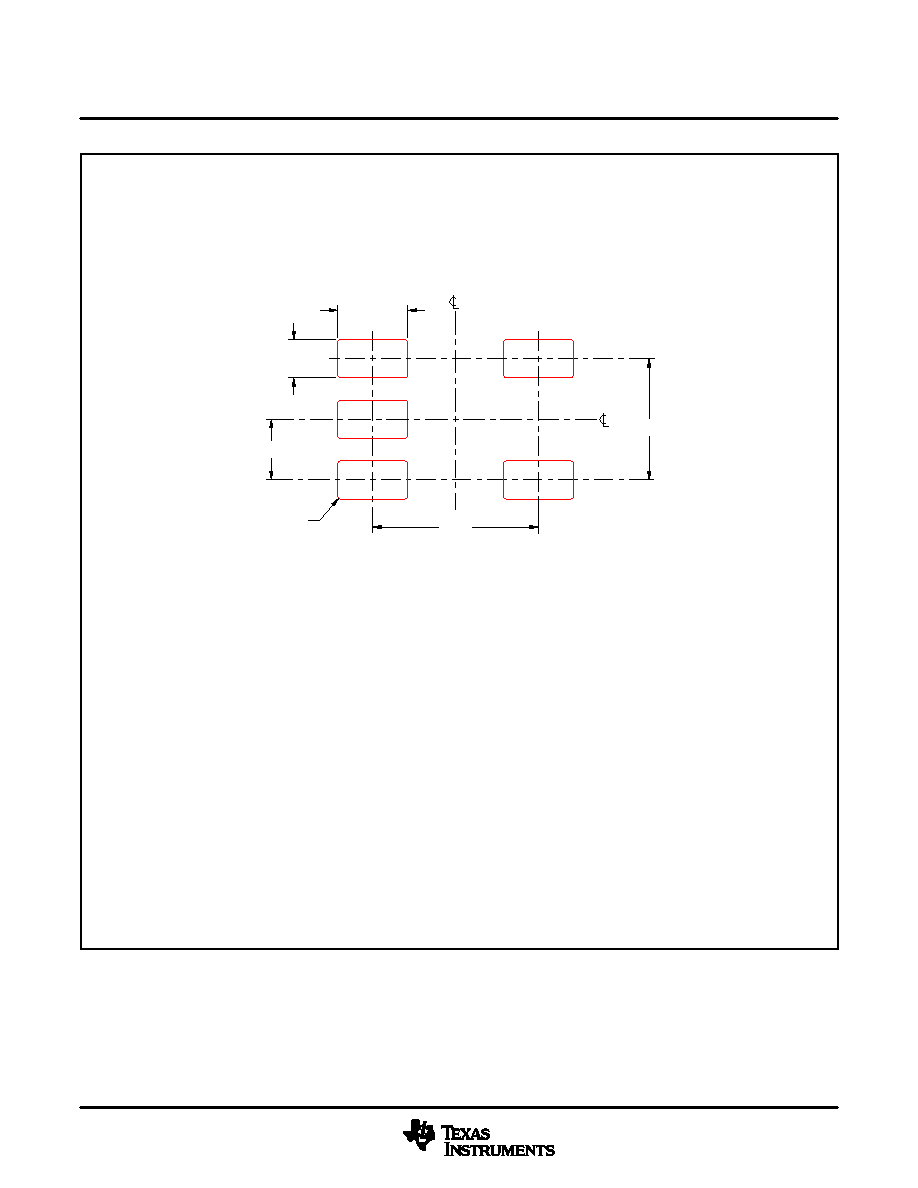

EXAMPLE STENCIL DESIGN

(2.6)

(1.9)

2X(0.95)

5X (1.1)

5X (0.6)

(R0.05) TYP

SOT-23 - 1.45 mm max height

DBV0005A

SMALL OUTLINE TRANSISTOR

4214839/C 04/2017

NOTES: (continued)

6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

7. Board assembly site may have different recommendations for stencil design.

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE:15X

SYMM

PKG

1

3

4

5

2
