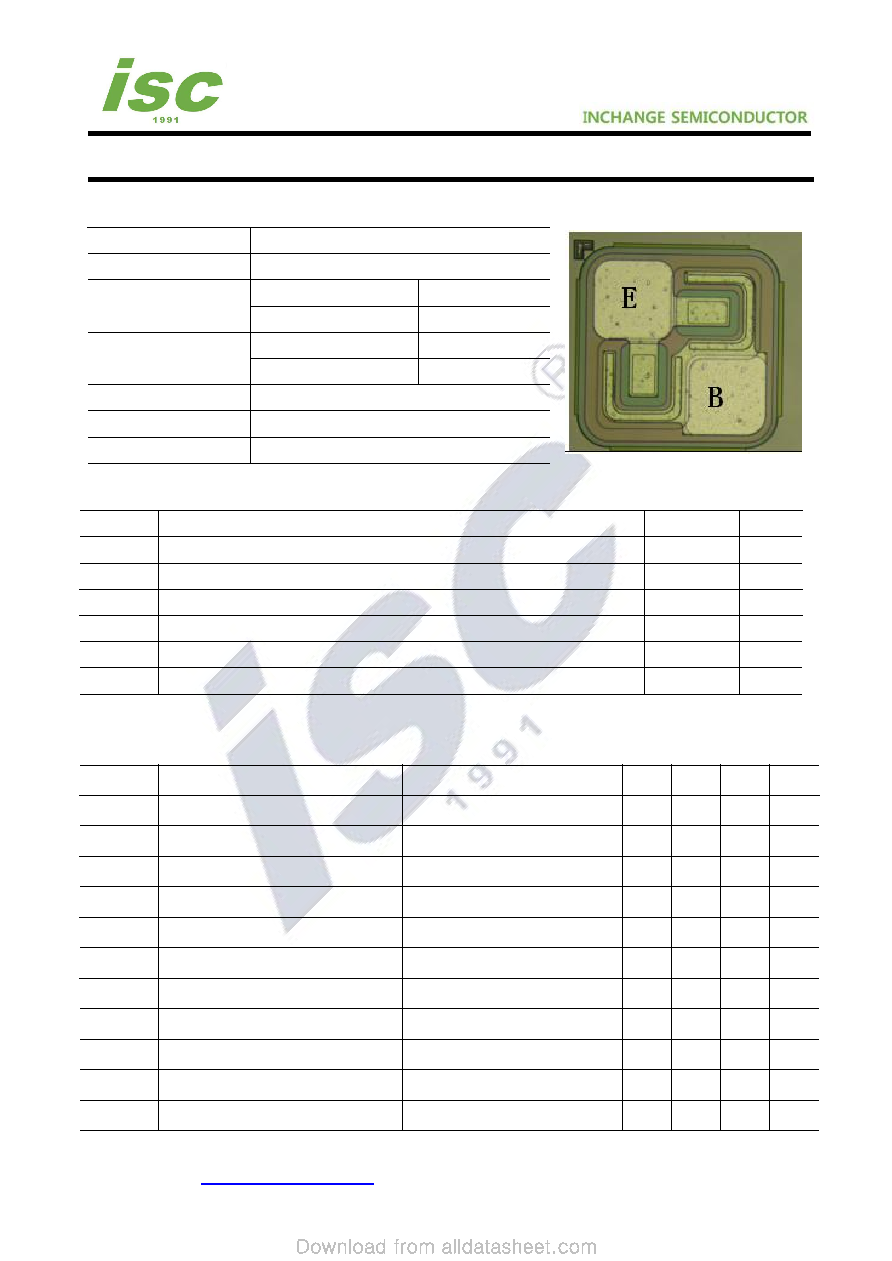

background image
isc website：www.iscsemi.com
isc & iscsemi is registered trademark
1
isc NPN Power Transistor Die
ISCN22
CHARACTERISTICS
Die Size
300um*300um
Thickness
165±15um
Metal
Solder joint layer
AL:2.8±0.3um
Backside layer
Au ≥1.2um
Bonding Area
Emitter
100um*100um
Base
100um*100um
Scribe Line Size
50um
Wafer Size
φ
125mm
Estimated Gross Die
114000
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
60
V
VCEO
Collector-Emitter Voltage
40
V
VEBO
Emitter-Base voltage
6
V
IC
Collector Current-Continuous
200
mA
PC
Collector Power Dissipation@ TC=25℃
200
mW
TJ
Junction Temperature
150
℃
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX UNIT
V(BR)CEO
Collector-Emitter Breakdown Voltage
IC= 10µA; IB= 0
60
V
V(BR)CBO
Collector-Base Breakdown Voltage
IC= 1mA; IE= 0
40
V
V(BR)EBO
Emitter-Base Breakdown voltage
IE= 10µA; IC= 0
6
V
VCE(sat)
Collector-Emitter Saturation Voltage
IC= 50mA; IB= 5mA
0.3
V
VBE(sat)
Base-Emitter Saturation Voltage
IC= 50mA; IB= 5mA
0.95
V
ICBO
Collector Cutoff Current
VCB= 30V; IE=0
100
nA
IEBO
Emitter Cutoff Current
VEB= 3V; IC=0
100
nA
hFE
DC Current Gain
IC= 10mA; VCE= 1V
100
300
hFE
DC Current Gain
IC= 0.1mA; VCE= 1V
40
hFE
DC Current Gain
IC= 100mA; VCE= 1V
30
fT
Gain Bandwidth Product
VCE=20V,IC=10mA,f=100MHz
250
MHz
