AL1663/AL1663R
Document number: DS38466 Rev. 2 - 2
14 of 15
www.diodes.com
March 2017
© Diodes Incorporated
AL1663/AL1663R

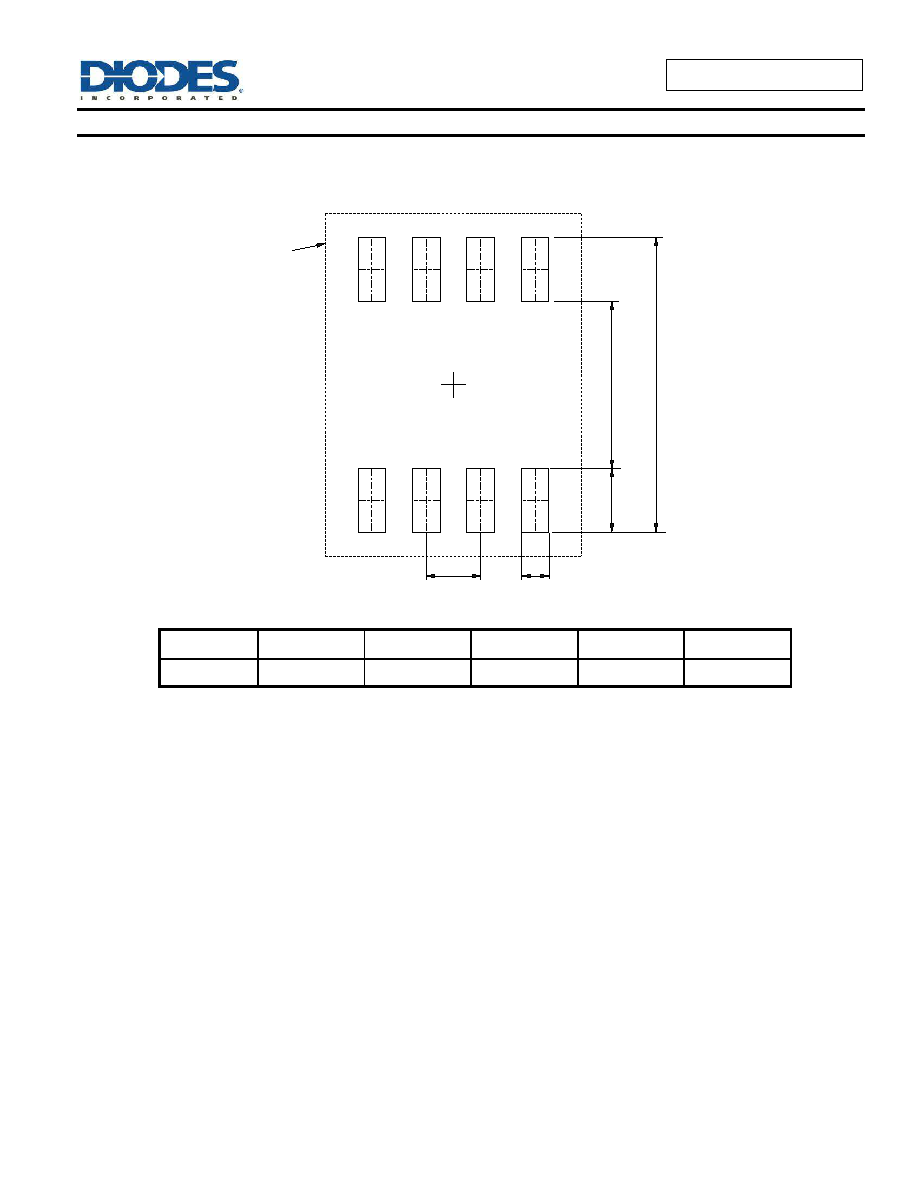

Suggested Pad Layout
(1)
Package Type: SO-8
Grid
placement
courtyard
Z
G
Y
E
X
Dimensions
Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value
6.900/0.272
3.900/0.154
0.650/0.026
1.500/0.059
1.270/0.050
