25DR10 Datasheet(PDF) 1 Page - Nell Semiconductor Co., Ltd |
|
|
|||||||||||||||||||||||||||||
25DR10 Datasheet(HTML) 1 Page - Nell Semiconductor Co., Ltd |
|
|

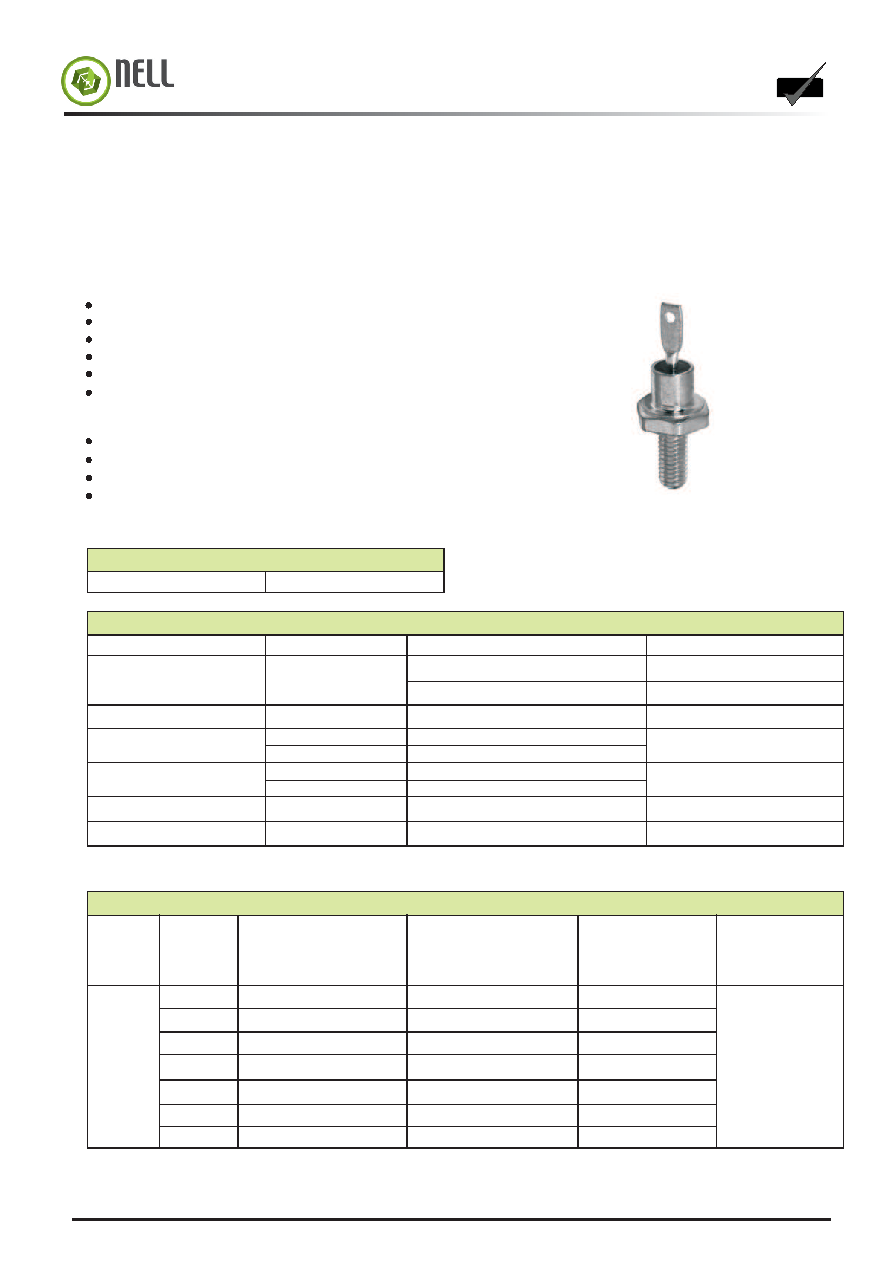

1 / 5 page  FEATURES High surge current capability Stud cathode and stud anode version Wide current range TYPICAL APPLICATIONS SEMICONDUCTOR RoHS RoHS Page 1 of 5 Glass Passivated Standard Recovery Diodes Nell High Power Products Voltage up to 1600V VRRM RoHS compliant 25D(R)Series (Stud Version), 25A DO-203AA(DO-4) Battery charges Converters Power supplies Machine tool controls PRODUCT SUMMARY IF(AV) 25A MAJOR RATINGS AND CHARACTERISTICS PARAMETER UNIT V VRRM IFSM IF(AV) 2 I t TJ 25 2 A s A A ºC TEST CONDITIONS VALUES IF(RMS) TC ºC A 120 39 356 373 634 578 200 to 1600 -65 to 175 50 HZ 60 HZ 50 HZ 60 HZ Range ELECTRICAL SPECIFICATIONS VOLTAGE RATINGS VOLTAGE TYPE NUMBER CODE VRRM,MAXIMUM REPETITIVE PEAK REVERSE VOLTAGE V VRSM,MAXIMUM NON-REPETITIVE PEAK VOLTAGE V VR(BR),MIMIMUM AVALANCHE VOLTAGE V(1) VRRM,MAXIMUM AT TJ=175°C mA 25D( R ) 02 04 06 08 10 12 16 200 400 600 800 1000 1200 1600 275 500 725 950 1200 1400 1800 - 500 750 950 1150 1350 12 (1) Avalanche version only available from VRRM 400V to 1600V Note 1750 Glass passivated chips www.nellsemi.com |
