FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1502

PIT03020 TYPE

●FEATURE

1.

Shielded construction

2.

Frequency range up to 5MHz, Low DCR(uH),Low Buzz Noise

●Applications

1.

Notebook, server application, High current power supplier

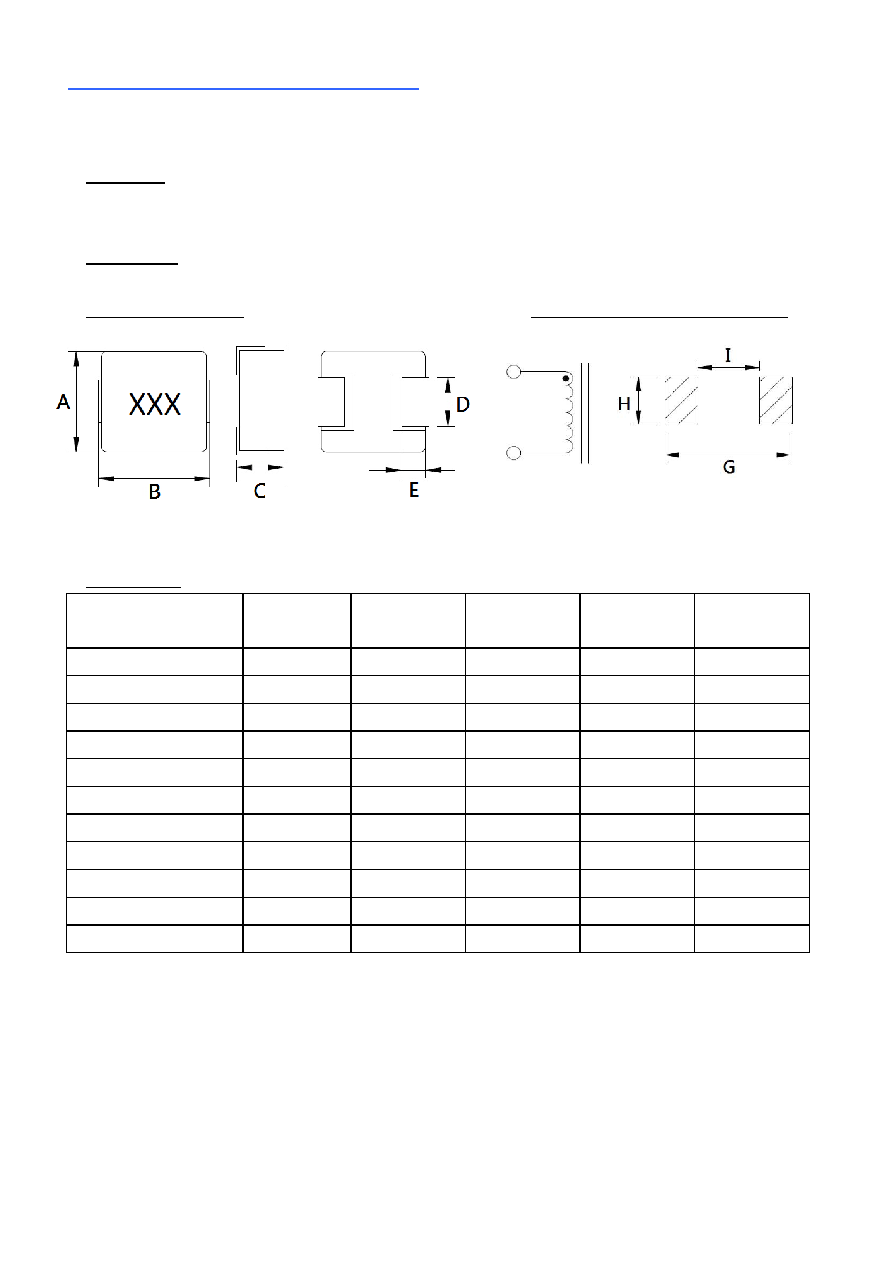

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=3.40m/m Max ; B=3.70m/m Max ; C=2.00m/m Max. ; D=1.20±0.2m/m ; E=1.00m/m Ref. ;

G=4.10m/m ; H=1.45m/m ; I=1.90m/m

●Specification

P/N

L

(μH)

RDC

(m

Ω) Typical

RDC

(m

Ω)Max

Isat

(A)

Irms

(A)

PIT03020-R47□

0.47

19.7

23.0

9.0

7.0

PIT03020-R68□

0.68

25.5

29.0

7.0

5.5

PIT03020-1R0□

1.0

32.0

38.0

5.0

4.0

PIT03020-1R5□

1.5

42.0

50.0

4.0

3.8

PIT03020-2R2□

2.2

65.0

75.0

3.7

3.5

PIT03020-3R3□

3.3

125

145

3.5

3.0

PIT03020-4R7□

4.7

172

200

3.0

2.6

PIT03020-5R6□

5.6

205

238

2.6

2.2

PIT03020-6R8□

6.8

260

300

2.2

1.9

PIT03020-8R2□

8.2

340

390

1.9

1.6

PIT03020-100□

10

366

422

1.6

1.4

Note1. Measurement frequency of Inductance value : at 100KHz, 1V

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat: DC current at which the inductance drops 30%(typ) from its value without current

Note4. Irms: Average current for 40℃ temperature rise from 25℃ ambient(typical)

Note5. Inductance tolerance□: M: ±20% ; N: ±30%

Note6. Packing: reel ; Quantity: 3000 Piece

Note7. Inductance: 2R2=2.2uH；Marking: 2.2
