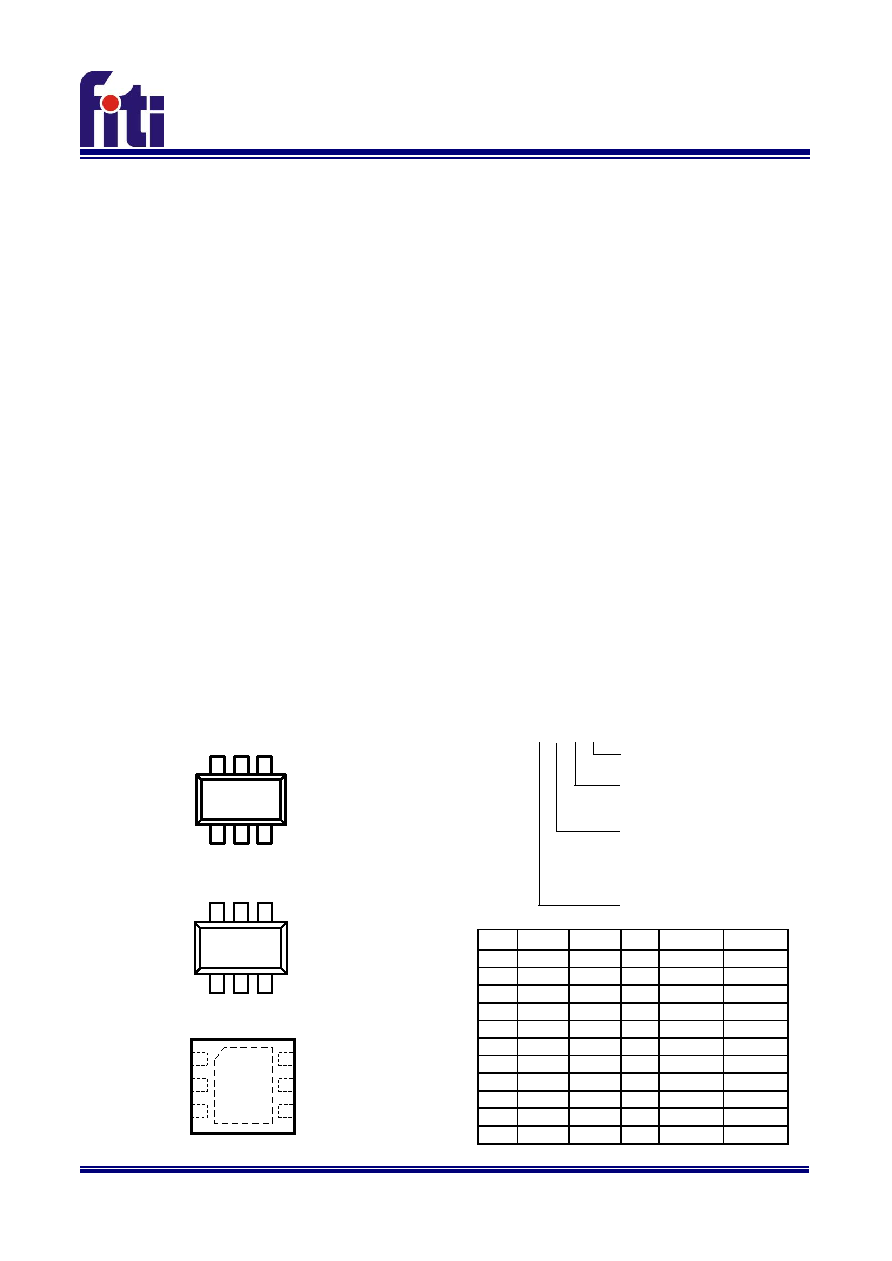

1 / 12 page  1 FP6121-3.5-DEC-2013 FP6121 fitipower integrated technology lnc. 300mA, High PSRR, Dual Output Low-Dropout Regulator LINEAR REGULATOR Description The FP6121 is a dual output, low dropout, high PSRR, low quiescent current linear regulators. The FP6121 can supply 200mA output current with a lower dropout voltage about 300mV for each channel. The FP6121 is suitable for portable and wireless application such as mobile phone and portable hand-sets. The FP6121 is designed and optimized to work with low-value, low cost ceramic capacitors. The FP6121 consumes less than 0.1 μA during shutdown mode which is independent for each channel, allowing for flexibility in power management. Besides its current limit protection and on chip thermal shutdown features provide protection against any combination of overload or ambient temperature that could exceed junction temperature. The FP6121 does n’t need external bypass capacitor and still could get better noise performance. The tiny SOT-23-6, TSOT-23-6 and TDFN-6 packages are attractive for hand-held applications. Features Low Dropout Voltage: 300mV at IOUT=200mA Guaranteed 300mA Output Current Per Channel Very Low Quiescent Current: 25 μA High Power Supply Rejection Ratio: 70dB at 10kHz Highly Accurate: 2% Needs Only 1µF Ceramic Capacitor for Stability Thermal Shutdown and Current Limiting Protection Tiny SOT-23-6, TSOT-23-6 and TDFN-6 Packages RoHS Compliant Applications Mobile Phone Portable or Wireless Instrument Camera PDA and Notebook Computer Pin Assignment S6 Package (SOT-23-6) 2 1 3 6 4 5 (Marking) EN1 VIN EN2 VOUT2 GND VOUT1 S9 Package (TSOT-23-6) 2 1 3 6 4 5 (Marking) EN1 VIN EN2 VOUT2 GND VOUT1 WD Package (TDFN-6) (1.6mm×1.6mm) 1 4 5 6 3 2 EN2 VIN EN1 GND VOUT1 VOUT2 GND Figure 1. Pin Assignment of FP6121 Ordering Information VOUT1 VOUT2 VOUT1 VOUT2 A 3.3V 2.8V L 1.8V 2.6V B 3.3V 2.5V M 1.8V 3.0V C 2.8V 1.8V N 2.8V 3.3V D 2.5V 1.8V O 1.8V 1.8V E 3.0V 1.8V P 2.85V 2.85V F 1.8V 2.8V Q 1.5V 3.0V G 2.8V 2.8V R 1.5V 3.3V H 1.5V 2.8V S 1.2V 3.3V I 1.8V 3.3V T 3.0V 2.85V J 1.3V 2.8V V 3.3V 3.3V K 1.2V 2.8V W 1.2V 1.8V FP6121- □□□□ P: Green G: Green TR: Tape/Reel Package Type S6: SOT-23-6 S9: TSOT-23-6 WD: TDFN-6 (1.6mm×1.6mm) Output Voltage |
