MT7697D
Internet-of-Things Wireless Connectivity
© 2016 MediaTek Inc.
Page 39 of 84
This document contains information that is proprietary to MediaTek Inc. (“MediaTek”) and/or its licensor(s).
Any unauthorized use, reproduction or disclosure of this document in whole or in part is strictly prohibited.
PU
PD
IO
E
G
O
AIO_ANALOG_DONT_TOUCH
Logic 1 -> Switch on
I
AGPIO
PU
PD
IO
E
O
I
GPIO
AGPIO Function Table
G E Function
=============================
0 0 Analog Function (IO <- -> AIO)
0 1 Analog Function (IO <- -> AIO)
---------------------------------------------------
1 0 Digital Function (IO -----> O)
1 1 Digital Function (IO <- -- I)
(4 – 16 mA Driving)
Floating Well
4 – 16 mA
Floating Well
4 – 16 mA

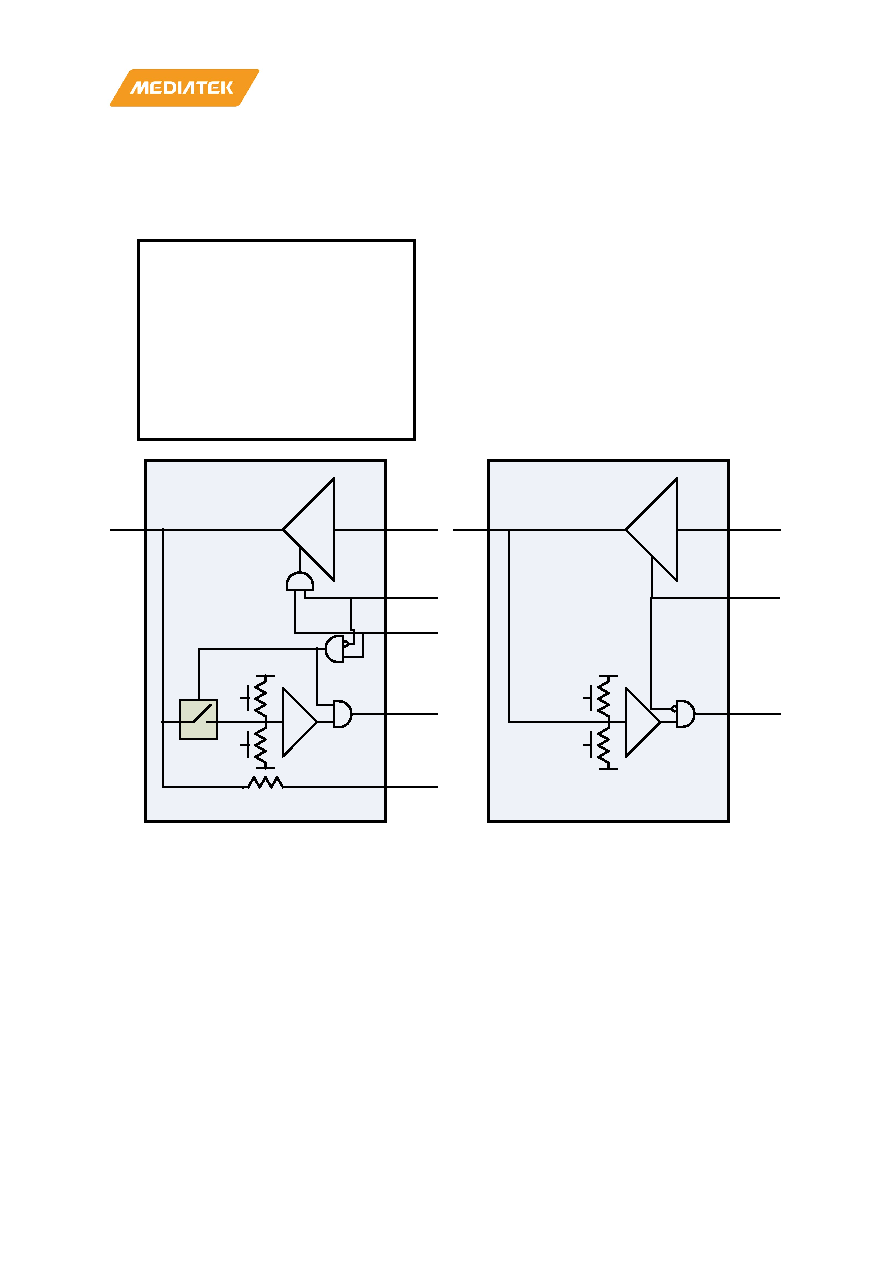

Figure 2-11. AGPIO/GPIO Block Diagram (Left: AGPIO; Right: GPIO)
The digital IO AGPIO function is equivalent to GPIO as shown above. A dedicated internal control
signal is used to select between the digital and analog functions. The IOs are multiplexed with 16
channels ADC.
