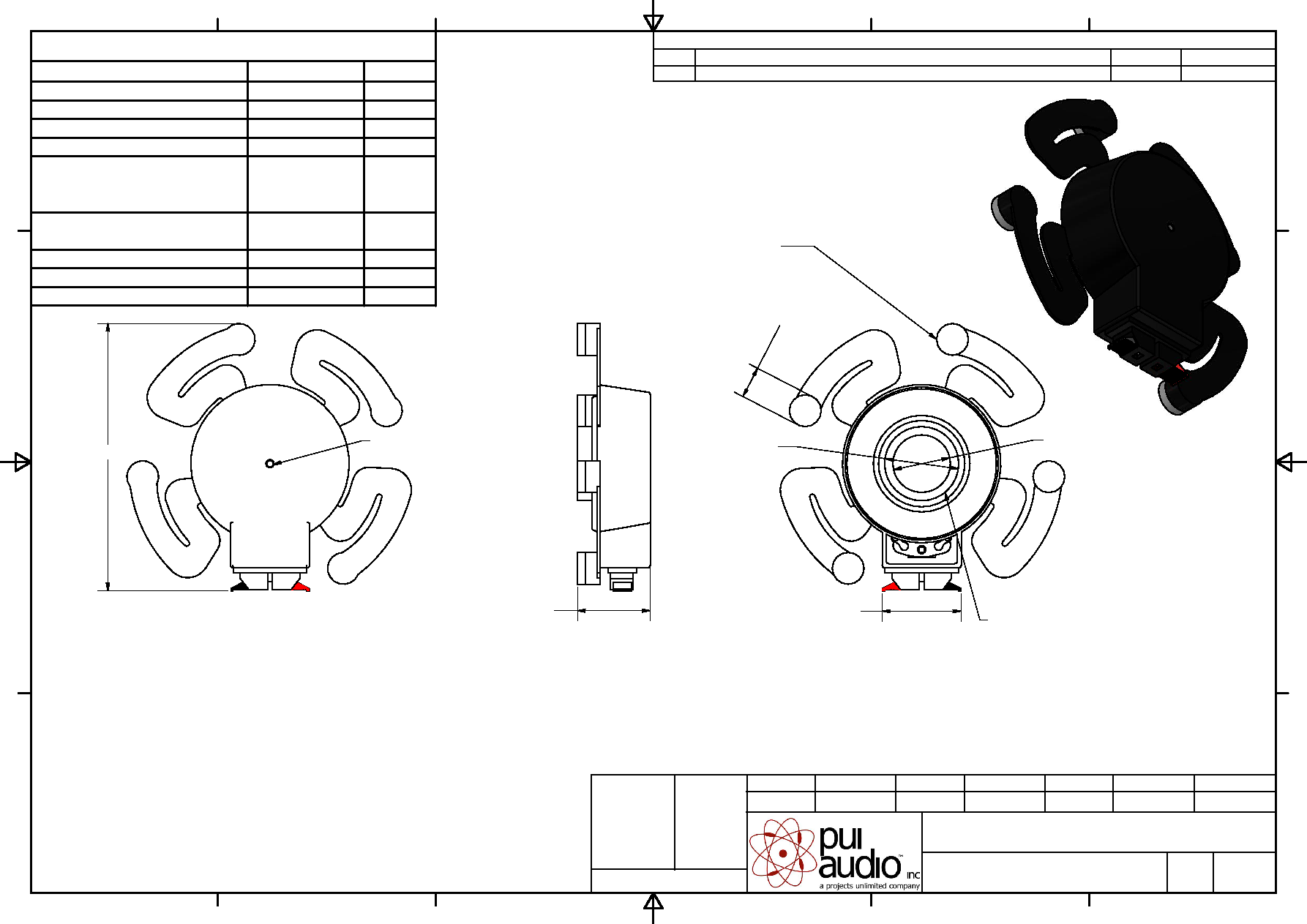

1 / 1 page  Exciter ASX10108-SPD-R M.V. M.V. B.R. 1/31/2017 - Designed by Checked by Approved by Drawn Date 1 / 1 Edition Sheet Date 1/31/2017 Date 1/31/2017 Date 1/31/2017 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS, TOLERANCES ARE 0.5 AND ANGLES ARE 3 . ASX10108-SPD-R.idw A3 SIZE REVISION HISTORY LTR DESCRIPTION DATE APPROVED - RELEASED FROM ENGINEERING 1/31/17 SPECIFICATIONS PARAMETERS VALUES UNITS RATED INPUT POWER 20 W MAX INPUT POWER 30 W IMPEDANCE 8 15% OHM RESONANT FREQUENCY 220 20% Hz AVG. SPL 1W/0.1M ON 4MM THICK PLA PANEL (AVG 0.5, 1.0, 2.0, AND 5.0 kHz) 102 dBA FREQUENCY RANGE (MATERIAL DEPENDANT) 70~ 15,000 Hz MAGNET MATERIAL NdFeB - OPERATING TEMPERATURE -20~ +60 C WEIGHT 91 grams THIS DOCUMENT CONTAINS DATA PROPRIETARY TO PROJECTS UNLIMITED, INC. ANY USE OR REPRODUCTION, IN ANY FORM, WITHOUT PRIOR WRITTEN PERMISSION OF PROJECTS UNLIMITED, INC. IS PROHIBITED. 2003, Projects Unlimited Inc. NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS. 2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL WITHOUT NOTICE. 3. THIS PART IS RoHS 2011/65/EU COMPLIANT. 4. FOR APPLICATIONS THAT ARE TO BE SUBJECTED TO EXTERNAL FORCE, SHOCK, OR VIBRATION, PUI AUDIO RECOMMENDS SOLID MECHANICAL REINFORCEMENT TO ENSURE RIGID COUPLING BEYOND THAT PROVIDED BY THE 3M VHB F-9473PC DOUBLE-SIDED TAPE. 101.4 0.3 24.77 0.5 26.5 0.5 21.7 28 12 0.15 EVA MOUNTING PADS WITH 3M VHB DOUBLE-SIDED TAPE (4) MOUNTING RING 3M VHB DOUBLE-SIDED TAPE M3 THREADS 4MM DEEP |
