TMPF0402LR-R82MN-D Datasheet(PDF) 2 Page - TAI-TECH Advanced Electronics Co., Ltd.

Part # TMPF0402LR-R82MN-D
Description  SMD Power Inductor
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]
Direct Link  https://www.tai-tech.com.tw/en/
Logo TAI-TECH - TAI-TECH Advanced Electronics Co., Ltd.

TMPF0402LR-R82MN-D Datasheet(HTML) 2 Page - TAI-TECH Advanced Electronics Co., Ltd.

  TMPF0402LR-R82MN-D Datasheet HTML 1Page - TAI-TECH Advanced Electronics Co., Ltd. TMPF0402LR-R82MN-D Datasheet HTML 2Page - TAI-TECH Advanced Electronics Co., Ltd.
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
TAI-TECH
P7

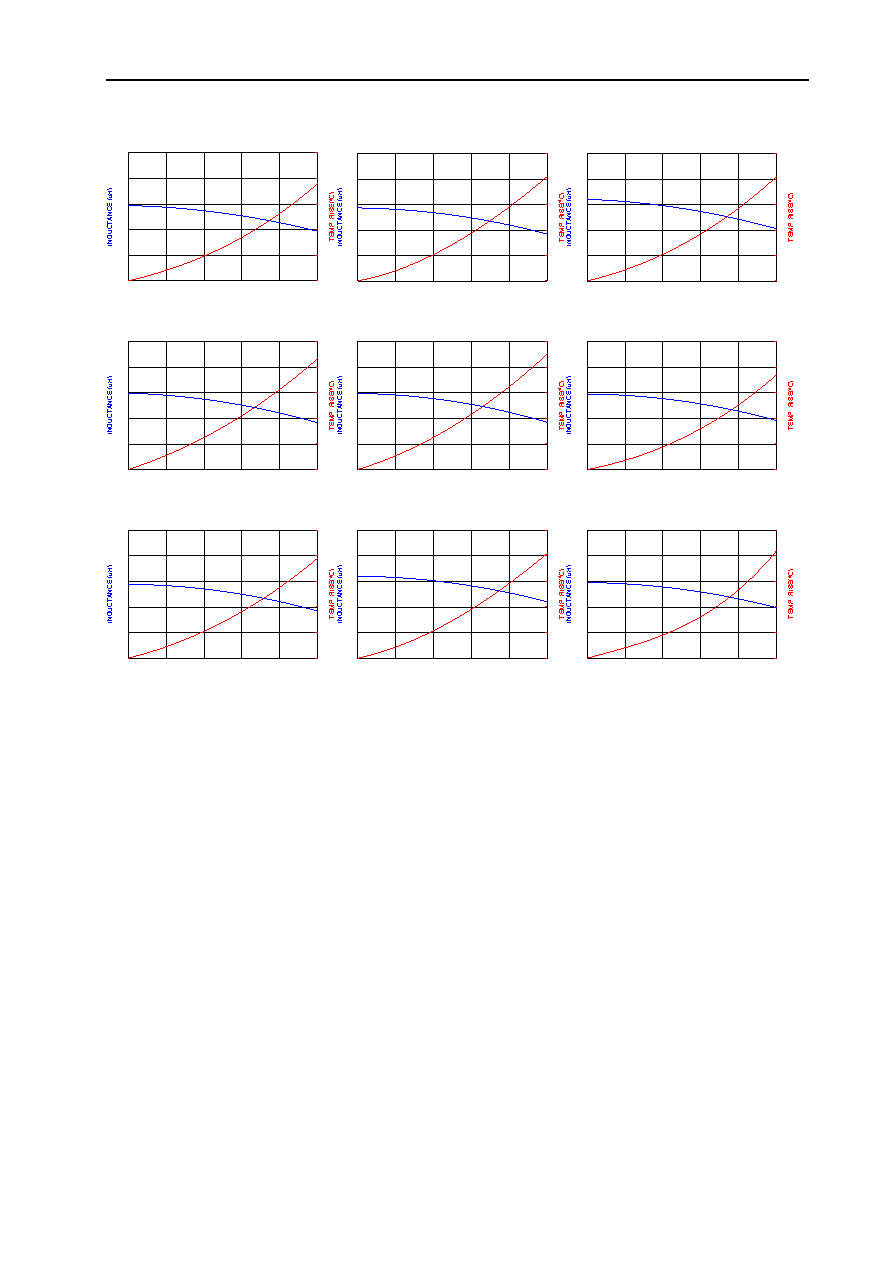

11. Typical Performance Curves
0
3.2
6.4
9.6
12.8
16
DC CURRENT(A)
0
0.16
0.32
0.48
0.64
0.8
0
10
20
30
40
50
TMPF0402-R47
0
3
6
9
12
15
DC CURRENT(A)
0
0.24
0.48
0.72
0.96
1.2
0
10
20
30
40
50
TMPF0402-R68
0
2.8
5.6
8.4
11.2
14
DC CURRENT(A)
0
0.26
0.52
0.78
1.04
1.3
0
10
20
30
40
50
TMPF0402-R82
0
2.8
5.6
8.4
11.2
14
DC CURRENT(A)
0
0.34
0.68
1.02
1.36
1.7
0
12
24
36
48
60
TMPF0402-1R0
0
2.8
5.6
8.4
11.2
14
DC CURRENT(A)
0
0.4
0.8
1.2
1.6
2
0
12
24
36
48
60
TMPF0402-1R2
0
2
4
6
8
10
DC CURRENT(A)
0
0.5
1
1.5
2
2.5
0
10
20
30
40
50
TMPF0402-1R5
0
2
4
6
8
10
DC CURRENT(A)
0
0.7
1.4
2.1
2.8
3.5
0
11
22
33
44
55
TMPF0402-2R0
0
2
4
6
8
10
DC CURRENT(A)
0
0.7
1.4
2.1
2.8
3.5
0
11
22
33
44
55
TMPF0402-2R2
0
1.4
2.8
4.2
5.6
7
DC CURRENT(A)
0
1.1
2.2
3.3
4.4
5.5
0
10
20
30
40
50
TMPF0402-3R3
