DSC2311KI1-R0054

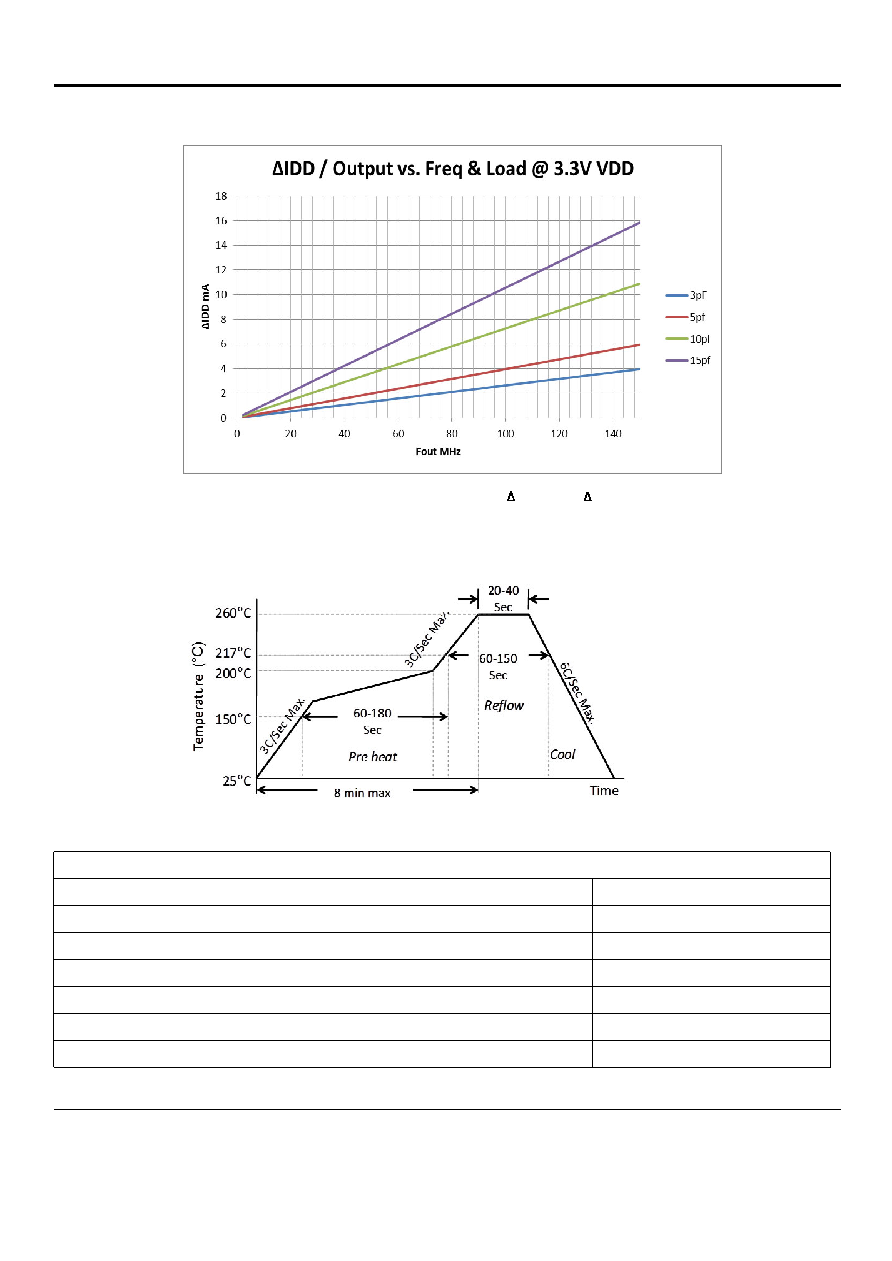

Current Consumption

Figure 1. Total Current = Disabled Current +

IDD Fout1 +

IDD Fout2

Solder Reflow Profile

Figure 2. Solder Reflow Profile

6 QFN

MSL 1 @ 260°C refer to JSTD-020C

Ramp-Up Rate (200°C to Peak Temp)

3°C/sec Max.

Preheat Time 150°C to 200°C

60 - 180 sec

Time maintained above 217°C

60 - 150 sec

Peak Temperature

255 - 260°C

Time within 5°C of actual Peak

20 - 40 sec

Ramp-Down Rate

6°C/sec Max.

Time 25°C to Peak Temperature

8 min Max.

December 19, 2016

Revision 1.0
