CYNTEC CO., LTD.
乾坤科技股份有限公司
Mar., 2020
DOCUMENT
: CMLE104T-000
REVISION
: A4
PAGE
: 3 OF 3

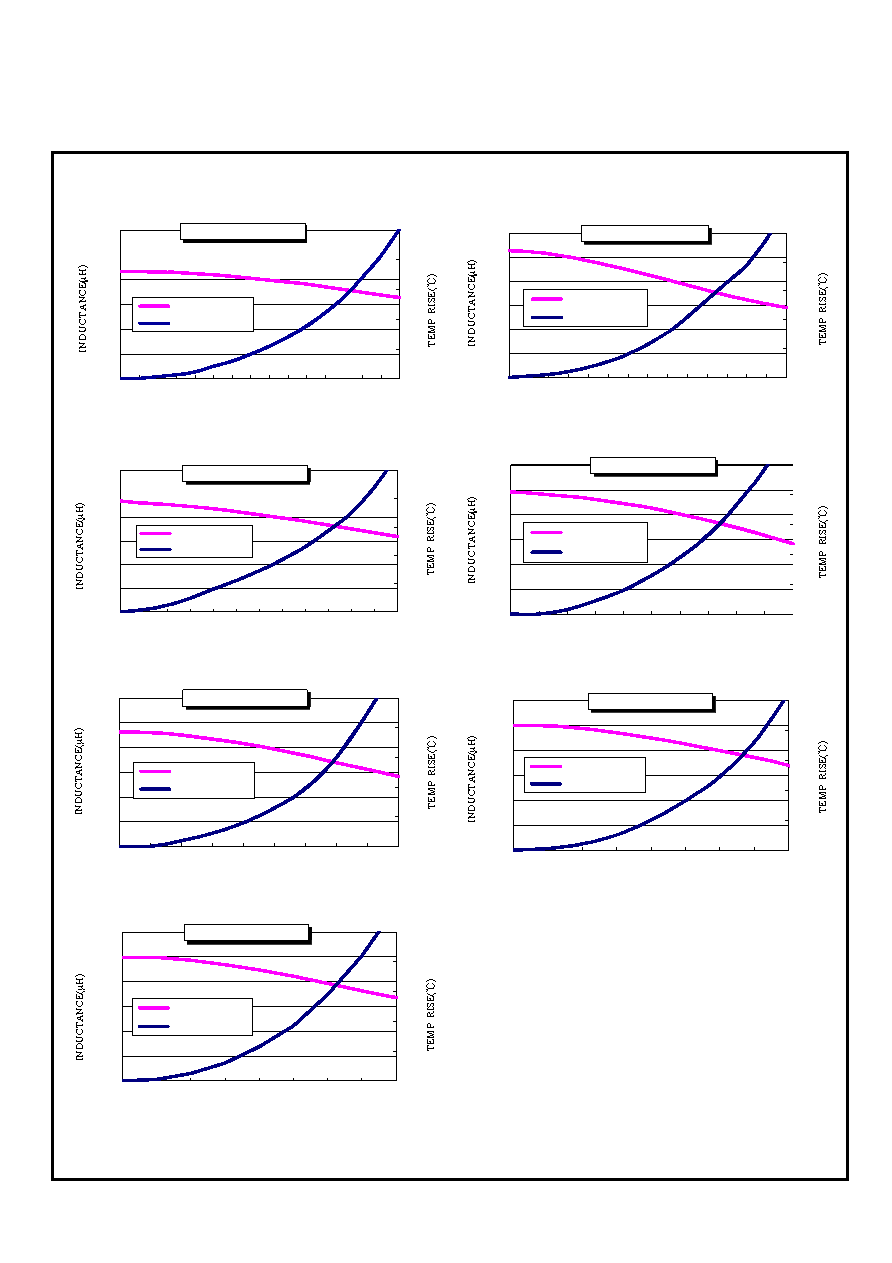

Current Characteristic
0
20
40
60
80
100
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0
5 10 15 20 25 30 35 40 45 50 55 60 65 70 75
DC BIAS(Amps)
CMLE104T-R22MS0R607
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.07
0.14
0.21
0.28
0.35
0.42
0
5
10 15 20 25 30 35 40 45 50 55 60 65 70
DC BIAS(Amps)
CMLE104T-R36MS0R765
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0
5
10
15
20
25
30
35
40
45
50
55
60
DC BIAS(Amps)
CMLE104T-R45MS1R007
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.12
0.24
0.36
0.48
0.60
0.72
0
5
10
15
20
25
30
35
40
45
50
DC BIAS(Amps)
CMLE104T-R56MS1R407
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.14
0.28
0.42
0.56
0.70
0.84
0
5
10
15
20
25
30
35
40
45
DC BIAS(Amps)
CMLE104T-R68MS1R607
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.18
0.36
0.54
0.72
0.90
1.08
0
5
10
15
20
25
30
35
40
DC BIAS(Amps)
CMLE104T-R88MS2R307
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.20
0.40
0.60
0.80
1.00
1.20
0
5
10
15
20
25
30
35
40
DC BIAS(Amps)
CMLE104T-1R0MS2R307
INDUCTANCE(μH)
TEMP. RISE(℃)
