CYNTEC CO., LTD.

乾坤科技股份有限公司

乾坤科技股份有限公司

乾坤科技股份有限公司

乾坤科技股份有限公司

Nov., 2017

DOCUMENT

: HMLE32251E-000

REVISION

: A0

PAGE

: 1 OF 3

Power Choke Coil HMLE32251E MSR type

Features

High performance (Isat) realized by metal dust core.

Low profile

：3.2mm x 2.5mm x 1.5mm

Low loss realized with low DCR

100% lead (Pb) free meet RoHS standard

Application

DC/DC converter for CPU in Notebook PC

Cellular phones, LCD displays, HDDs, DVCs, DSCs, PDAs etc..

Thin type on-board power supply module for exchanger

VRM for server

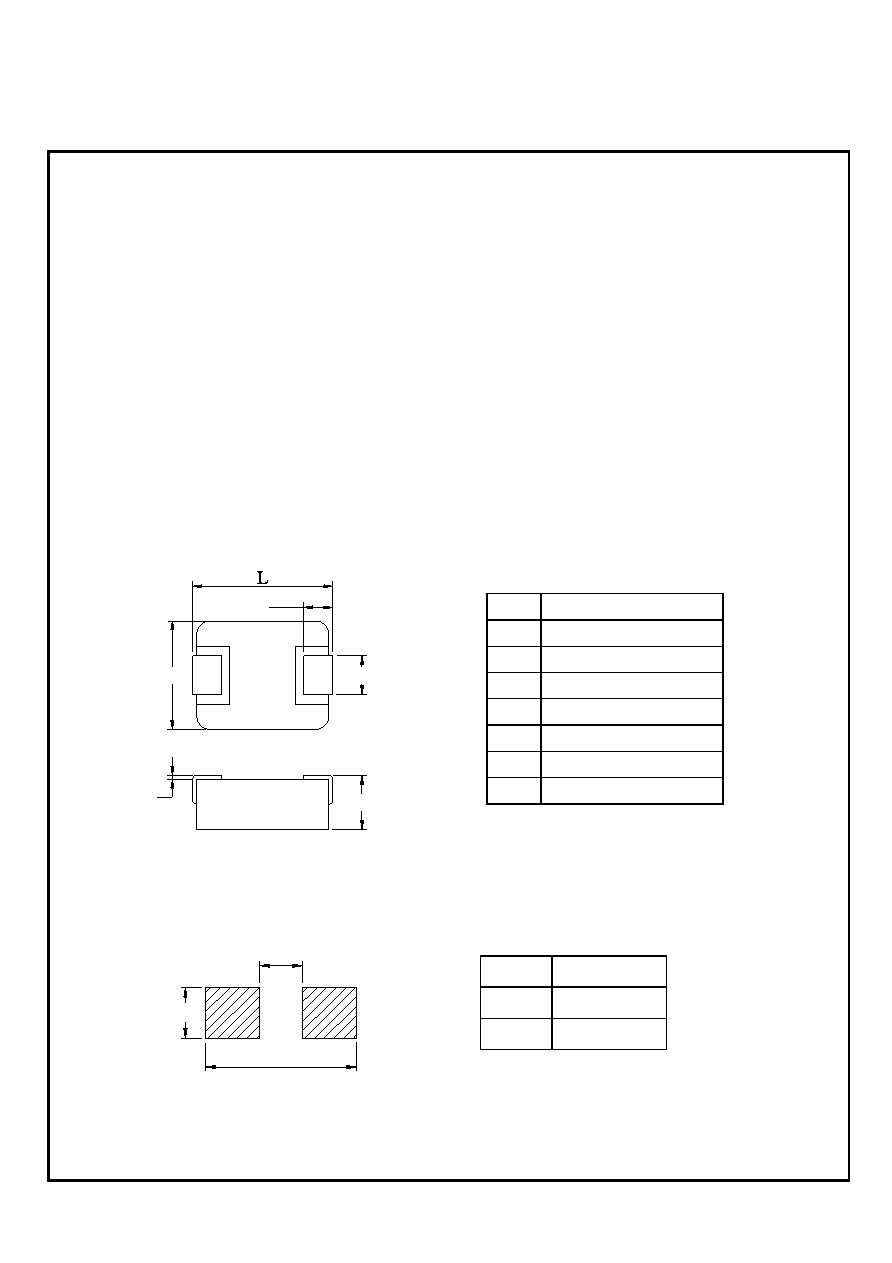

Outline Dimensions

B

A1

T

W

H

Recommend Land Pattern Dimensions

The customer shall determine the land dimensions shown below after confirming and safety.

B

A

C

A

1.2

B

1.0

C

3.5

Unit : mm

Code

Dimensions (mm)

L

3.2 ± 0.2

Lw

3.0 ± 0.2

W

2.5 ± 0.2

T

1.3 ± 0.2

A

0.7 ± 0.3

B

1.2 ± 0.3

H

0 ~ +0.15
