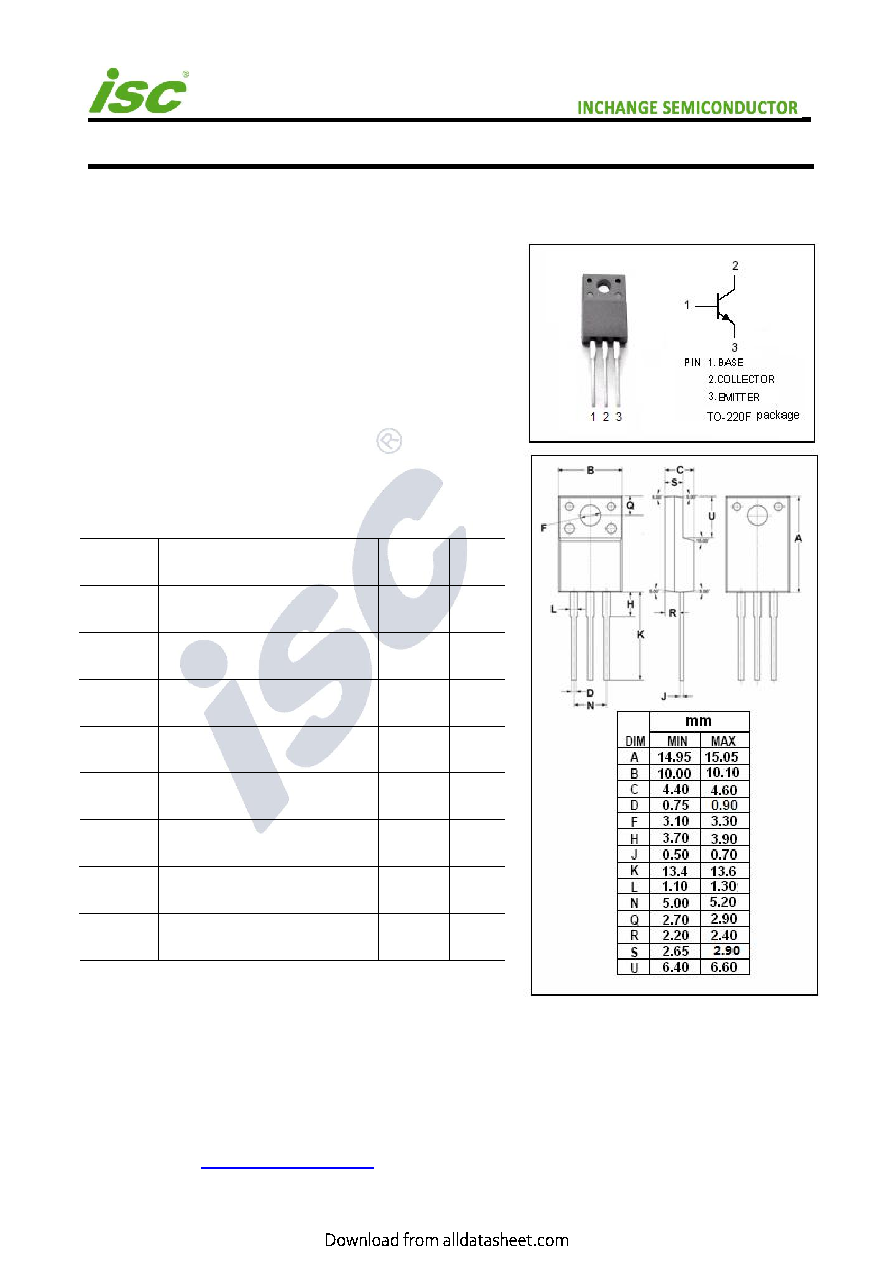

isc Silicon NPN Power Transistor
ISCN209F
DESCRIPTION
·
High Breakdown Voltage-(Vcb=1000V)
·
High Reliability
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·
Inverter-controlled
·
Lighting
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
1000
V
VCEO
Collector-Emitter Voltage
600
V
VEBO
Emitter-Base Voltage
9
V
IC
Collector Current- Continuous
6
A
ICM
Collector Current-Peak
8
A
PC
Collector Power Dissipation
@ TC=25℃
40
W
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature Range
-55~150
℃
