8.36 INFORMATION ROW ERASE OPERATION (IRER, 64h)

Information Row Erase (IRER) instruction erases the data in the Information Row x (x: 0~3) array. Prior to the

operation, the Write Enable Latch (WEL) must be set via a Write Enable (WREN) instruction. The WEL bit is

automatically reset after the completion of the operation.

The sequence of IRER operation: Pull CE# low to select the device  Send IRER instruction code  Send three

address bytes  Pull CE# high. CE# should remain low during the entire instruction sequence. Once CE# is pulled

high, Erase operation will begin immediately. The internal control logic automatically handles the erase voltage and

timing.

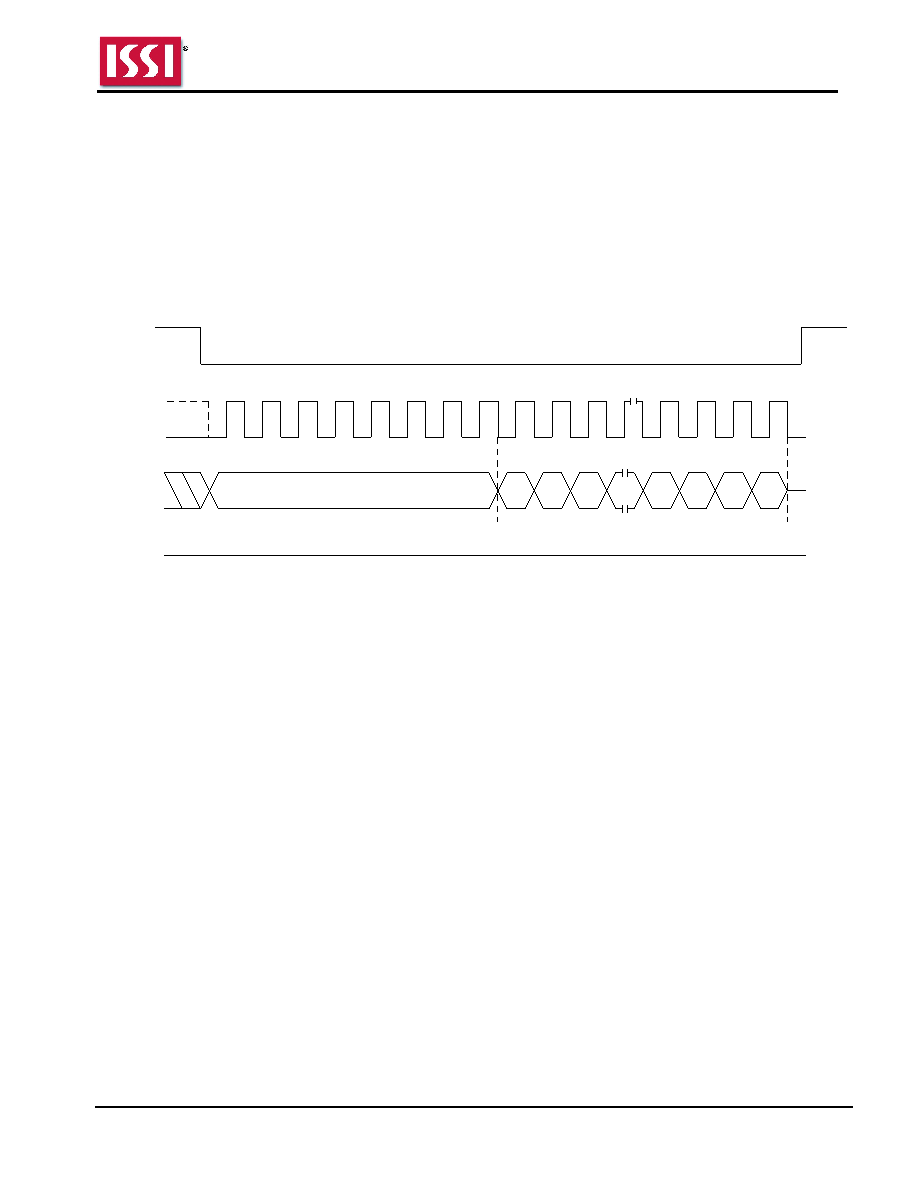

Figure 8.60 IRER (Information Row Erase) Sequence

Instruction = 64h

CE #

SCK

3-byte Address

High Impedance

...

Mode 3

Mode 0
