ADAR2001ACCZ-R7 Datasheet(PDF) 1 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADAR2001ACCZ-R7 Datasheet(HTML) 1 Page - Analog Devices |
|
|

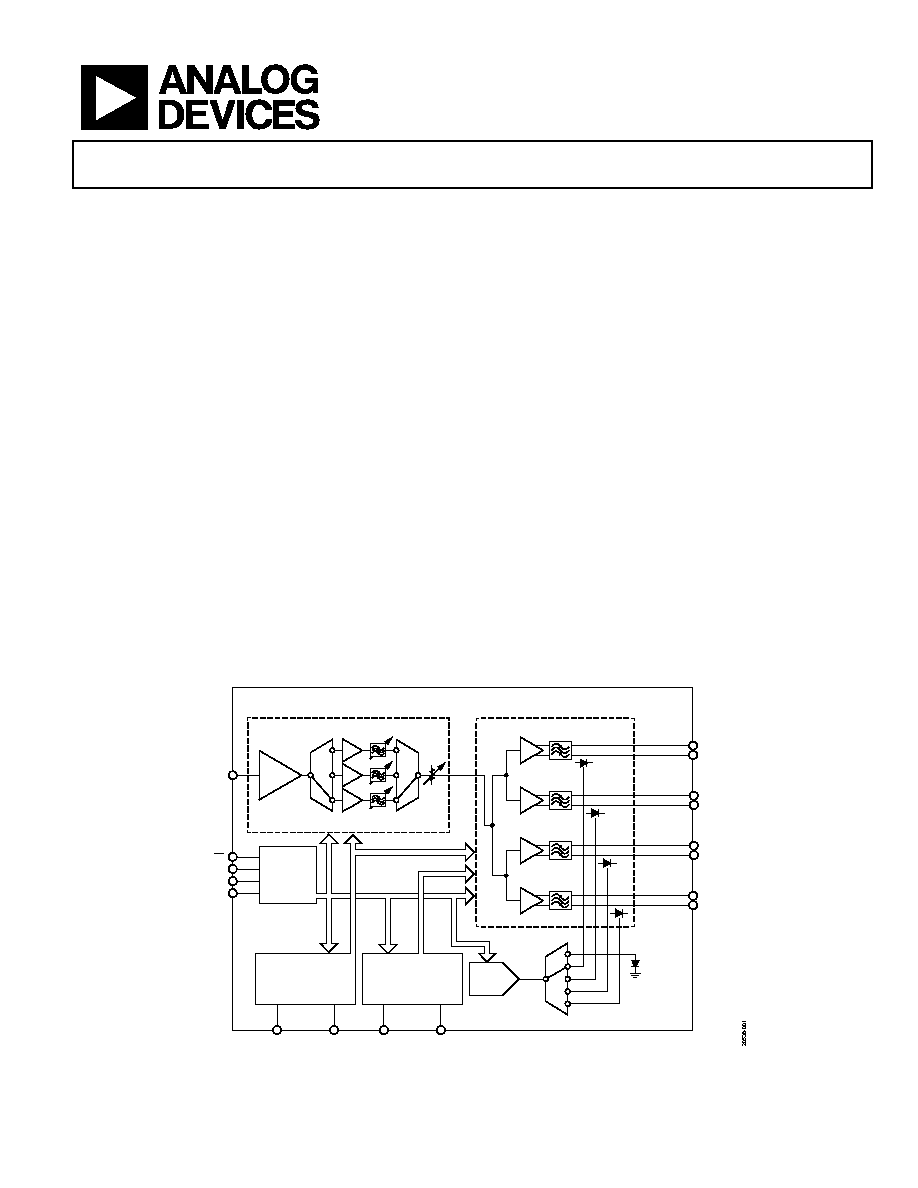

1 / 39 page  10 GHz to 40 GHz, 1:4 Channel, 4× Frequency Multiplier/Filter Data Sheet ADAR2001 Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2020 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com FEATURES 4× input frequency multiplier with programmable harmonic filter Quad differential output PAs with independent enable control Input frequency range: 2.5 GHz to 10 GHz Output frequency range: 10 GHz to 40 GHz Input power: −20 dBm (50 Ω) Output power: 5 dBm differential (100 Ω) Harmonic rejection: −20 dBc to −40 dBc at all frequencies 3-wire or 4-wire SPI control of all functions On-chip programmable state machines for fast multiplier/filter and transmitter switching and control On-chip temperature sensor, output power detectors, and ADC DC power: 450 mW (2.5 V supply) 6 mm × 6 mm, 40-terminal LGA package APPLICATIONS Millimeter wave imaging Security Medical Industrial Wideband local oscillator (LO) multiplier/distributor GENERAL DESCRIPTION The ADAR2001 is a transmitter IC optimized for millimeter wave body scanning applications. Accepting a single-ended continuous wave (CW) input signal between 2.5 GHz and 10 GHz, the ADAR2001 provides gain, 4× frequency multiplication, harmonic filtering, 1:4 signal splitting, and four independently controllable power amplifiers (PAs) with differential outputs designed to directly drive dipole antennas with differential inputs. All device functions and configuration options can be accessed by a 3-wire or 4-wire Analog Devices, Inc., serial peripheral interface (SPI). Two state machines are also integrated into the ADAR2001, which facilitate easy configuration, control, and fast switching of the frequency multiplier, filter, and transmitter sections. These sequencers are programmed through the SPI and are then operated by pulsed inputs (reset and advance). The output power and chip temperature can be monitored by four on-chip detectors and a temperature sensor whose outputs are multiplexed to an 8-bit ADC. The ADAR2001 requires only a single 2.5 V supply with power consumption of 450 mW with one channel turned on. The ADAR2001 is available in a compact, 40-terminal, 6 mm × 6 mm LGA package and is specified from −40°C to +85°C. FUNCTIONAL BLOCK DIAGRAM ADAR2001 RFIN BUFFER ×4 ×4 ×4 MULTIPLIER/FILTER SEQUENCER TRANSMITTER SEQUENCER ADC RFOUT1+ RFOUT1– RFOUT2+ RFOUT2– RFOUT3+ RFOUT3– RFOUT4+ RFOUT4– CS SDIO SCLK SDO SPI CONTROL MRST MADV TxRST TxADV PA PA PA PA TEMP. SENSOR MULTIPLIER/FILTER STATE MACHINE (16 STATES) TRANSMITTER STATE MACHINE (70 STATES) Figure 1. |
