Table 15. QFN3x4x1.0 24L mechanical data
Symbol
mm
Min.
Typ.
Max.
A
0.80
0.90
1.00
A1
0.00
0.02
0.05
A3
0.20 REF.
b
0.15
0.20
0.25
D
3.00 BSC
E
4.00 BSC
e
0.40 BSC
D2
1.65
1.80
1.90
E2
2.65
2.80
2.90
K
0.15
L
0.25
0.35
0.45
N
24
Note:
N is the total number of terminals. Dimension b applies to metallized terminal. If the terminal has a radius on its
end dimension b should not be measured in that radius area.

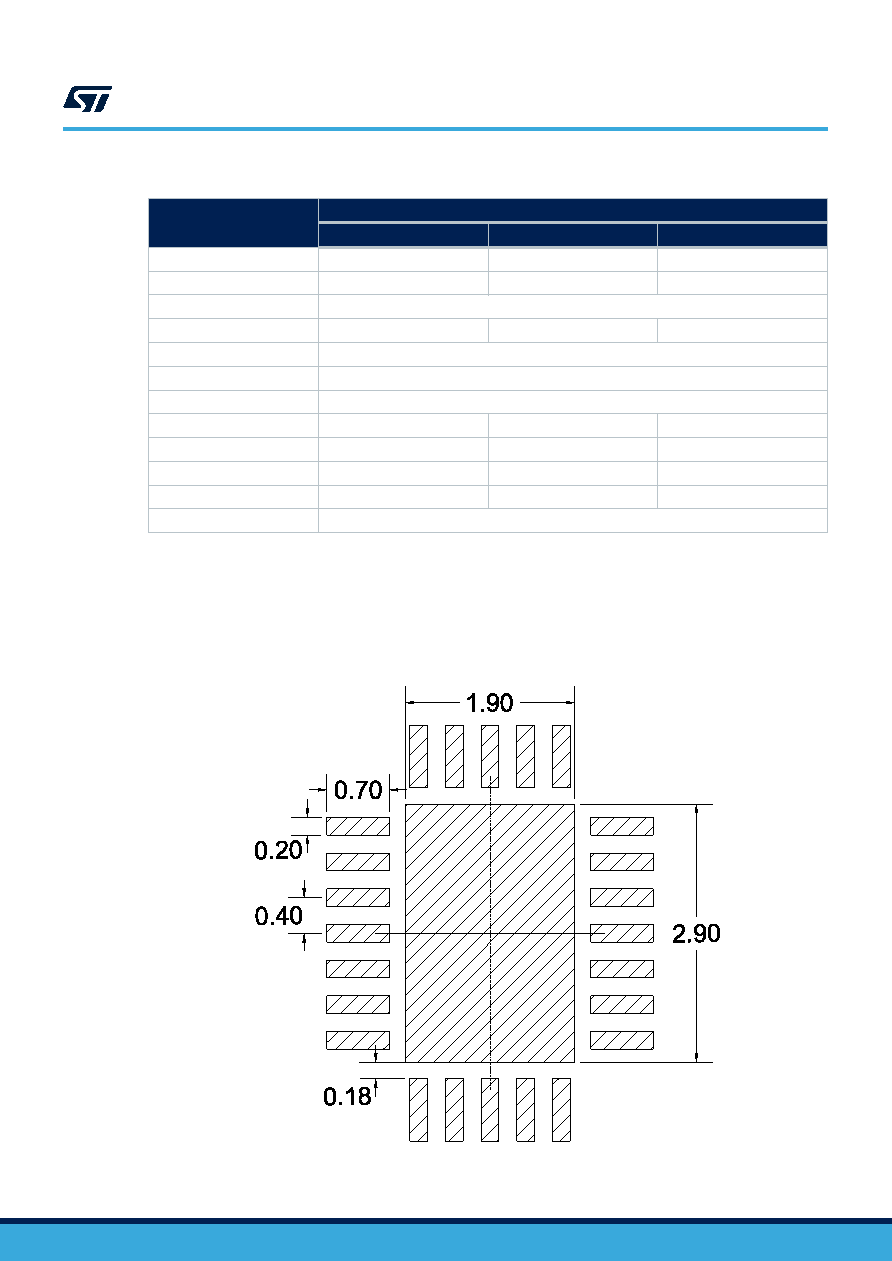

Figure 46. QFN3x4x1.0 24L recommended footprint
STPD01
QFN3x4x1.0 24L package information
DS13473 - Rev 1
page 36/43
