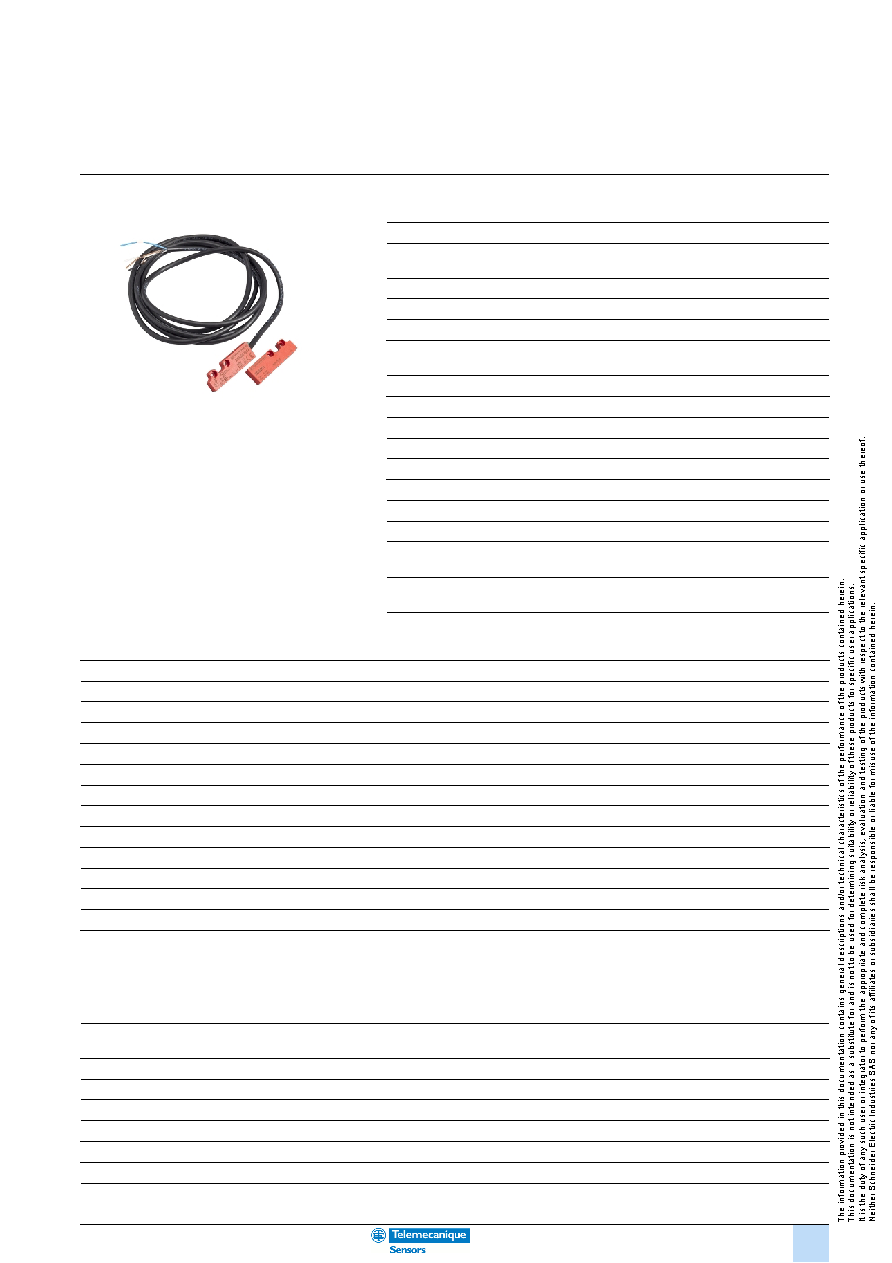

Product data sheet

Characteristics

XCSDMC79110

coded magnetic switch XCSDMC - 2 NC -

staggered - 10m

Main

Range of product

Preventa Safety detection

Product or component

type

Coded magnetic switch

Component name

XCSDMC

Design

Rectangular, compact

Size

51 x 16 x 7 mm

Contacts type and

composition

2 NC

Contact operation

Staggered

Material

Plastic

Electrical connection

Pre-cabled

Cable composition

4 x 0.25 mm²

Cable length

10 m

Number of poles

2

Local signalling

1 LED

Approach directions

3 directions

[Ue] rated operational

voltage

24 V DC

[Ui] rated insulation

voltage

100 V DC

Complementary

[Sa] assured operating distance

5 mm

[Sar] assured tripping distance

15 mm

Maximum [Ie] rated operational current

100 mA

[Uimp] rated impulse withstand voltage

2.5 kV EN/IEC 60947-5-1

Resistance across terminals

57 Ohm

Short-circuit protection

500 mA external cartridge fuse type gG (gl)

Contacts material

Rhodium

Electrical durability

1200000 cycles

Maximum switching voltage

100 V DC

Switching capacity in mA

5...100 mA

Insulation resistance

1000 MOhm

Breaking capacity

3 VA

Switching frequency

150 Hz

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach PL = e with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach SIL 3 with the appropriate monitoring system and correctly wired

conforming to EN/IEC 61508

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or

contact wear

Enclosure material

Thermoplastic PBT

Cable material

PVC

Depth

7 mm

Height

51 mm

Width

16 mm

Net weight

0.101 kg
