MODEL: M2SBS

M2SBS SPECIFICATIONS

ES-5089 Rev.16 Page 3/4

http://www.m-system.co.jp/

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

Low Voltage Directive

EN 61010-1

Measurement Category II (input)

Installation Category II (power)

Pollution Degree 2

Input 1 or input 2 or output to power input:

Reinforced insulation (300 V)

Input 1 or input 2 to output: Basic insulation (300 V)

RoHS Directive

EN 50581

Approval:

UL/C-UL nonincendive Class I, Division 2,

Groups A, B, C, and D

(ANSI/ISA-12.12.01, CAN/CSA-C22.2 No.213)

UL/C-UL general safety requirements

(UL 61010-1, CAN/CSA-C22.2 No.61010-1)

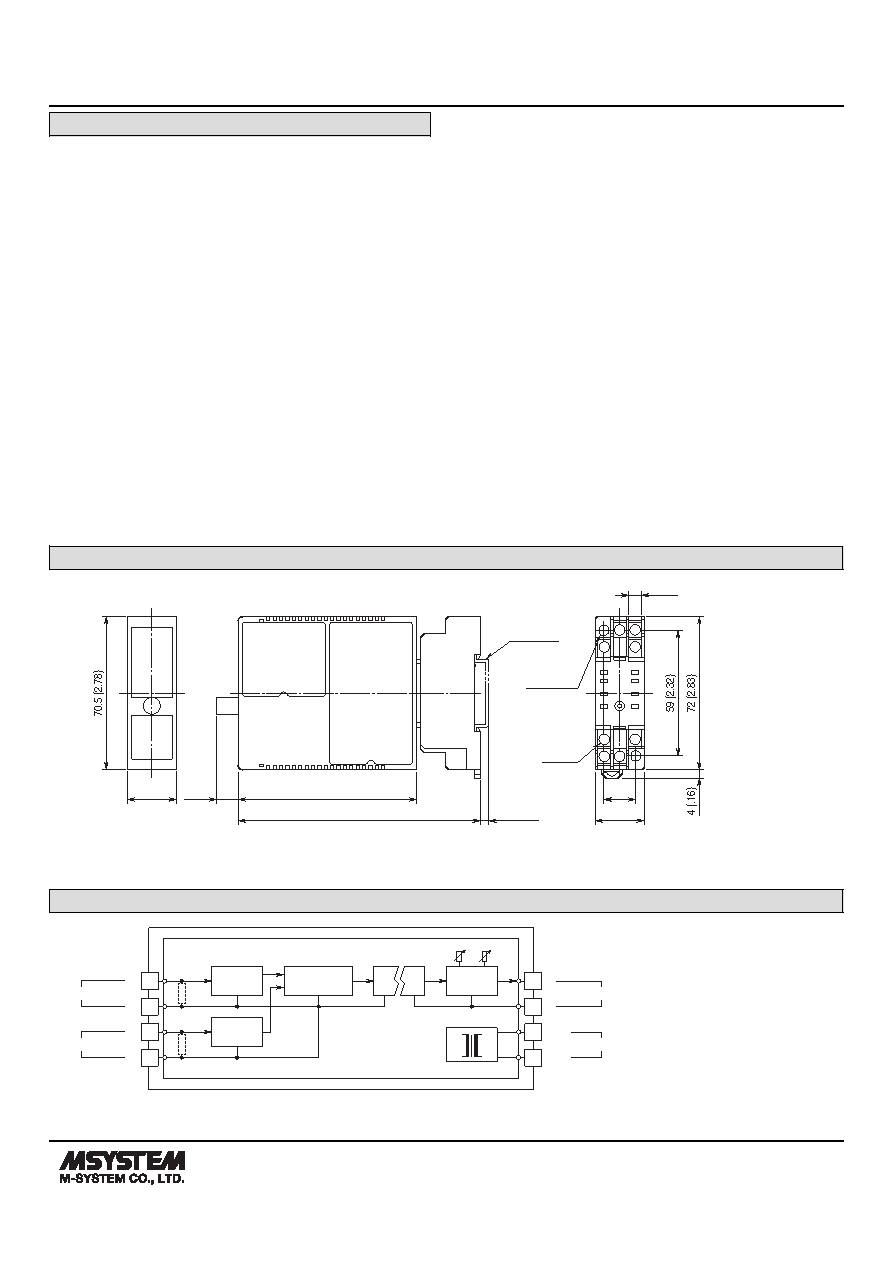

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

21.5 (.85)

84 (3.31)

10 (.39)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

114 (4.49)

• When mounting, no extra space is needed between units.

14 13

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

–

Isolation

Base Socket

Low Drift

Amplifier

Output

Driver

OUTPUT

–

*Input shunt resistor incorporated for current input.

Low Drift

Amplifier

INPUT 2

INPUT 1

Digital

Computation

U(+)

V(–)

POWER
