MODEL: M2WVS

M2WVS SPECIFICATIONS

ES-5149 Rev.1 Page 3/4

http://www.m-system.co.jp/

Output 1 or output 2 to power input: Basic insulation (300

Input to output 1 to output 2: Basic insulation (300 V)

RoHS Directive

EN 50581

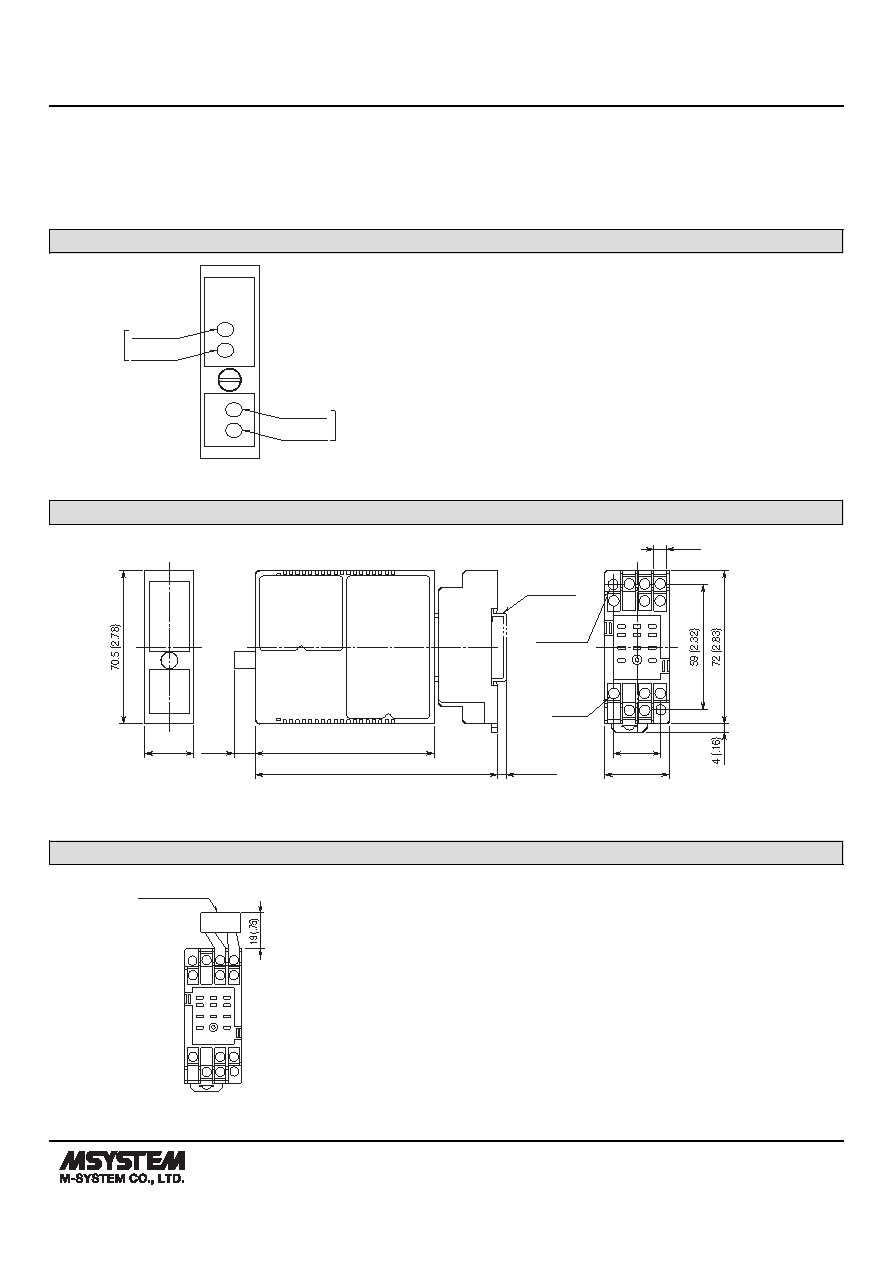

EXTERNAL VIEW

ZERO

SPAN

OUT2

ZERO

SPAN

OUT1

Zero Adj.

Span Adj.

Output 2

Zero Adj.

Span Adj.

Output 1

EXTERNAL DIMENSIONS unit: mm (inch)

8 7

22 (.87)

6 (.24)

11–M3

SCREW

29.5 (1.16)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

• When mounting, no extra space is needed between units.

21.5 (.85)

84 (3.31)

10 (.39)

DIN RAIL

35mm wide

[4 (.16)]

114 (4.49)

TERMINAL ASSIGNMENTS unit: mm (inch)

8 7

INPUT RESISTOR

(model: REM2)

Input shunt resistor attached

for current input.
