MODEL: DL30
DL30 SPECIFICATIONS
ES-8571 Rev.6 Page 4/11
https://www.m-system.co.jp/

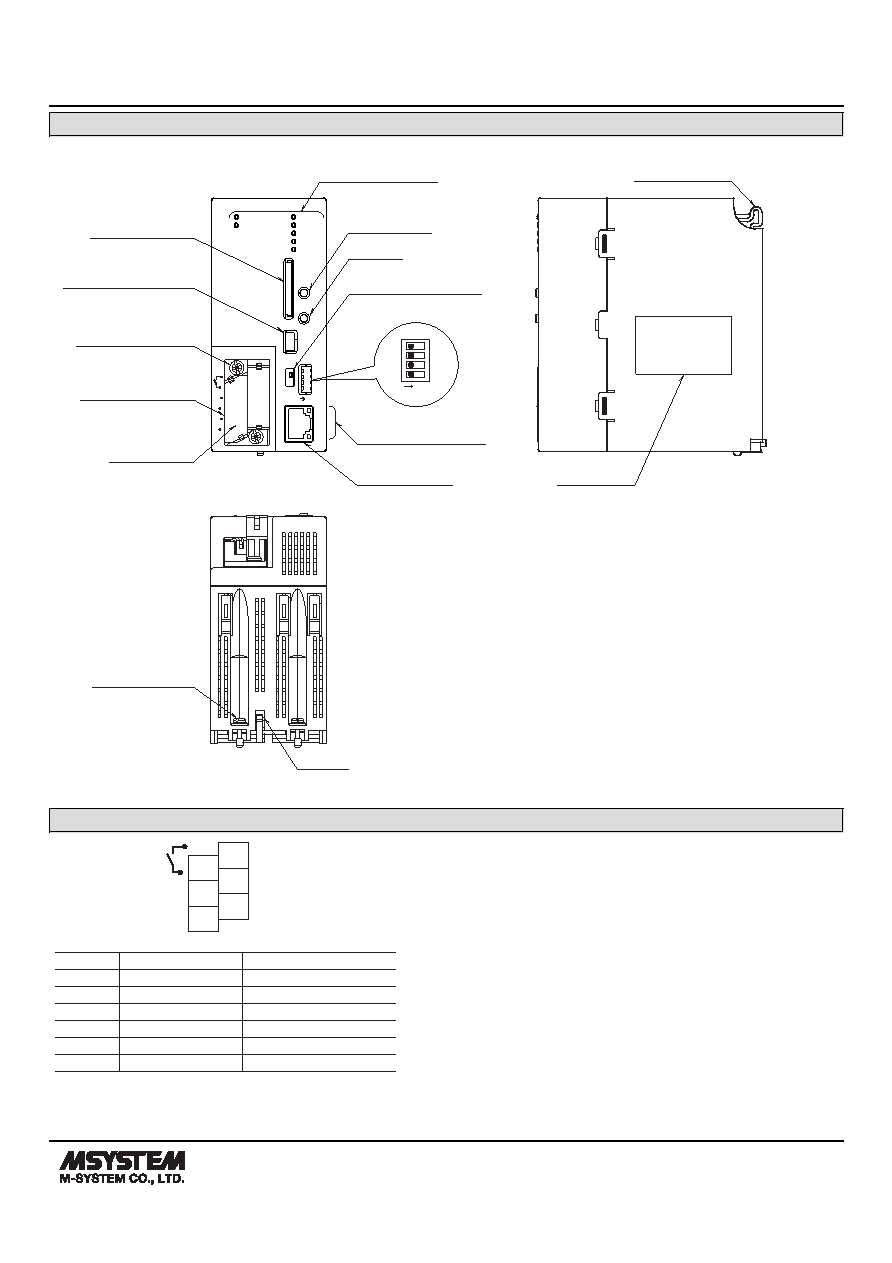

EXTERNAL VIEW
Status Indicator LEDs
RJ-45 Connector
for Ethernet
Lock Tab
Specifications
Ethernet Indicator LEDs
SD Card Slot
■ FRONT VIEW
■ BOTTOM VIEW
■ SIDE VIEW
Configuration Select SW
Logging Button
SD Button
Function Setting DIP SW
Terminal Block for
RUN Contact Output,
Power Supply
Terminal Fixing Screw
Base Fixing Screw
ON
4
3
2
1
DL30 RUN
LOGGING
SD CARD
PWR
RUN
ERROR
CFG
DPX
LNK
LOGGING
SD CARD
DL30
2
I/O
On
4
3
1
Configuration Connector
U(+)
NC
V(-)
FE
Positioning Guide
Terminal Cover
MAINT
TERMINAL ASSIGNMENTS
4
5
NC
FE
6
1
2
U(+)
3
V(-)
NO.
ID
FUNCTON
1
RUN contact output
RUN contact output
2
U (+)
Power supply (24 V DC)
3
V (-)
Power supply (0 V DC)
4
RUN contact output
RUN contact output
5
NC
Not used
6
FE
Functional earth
