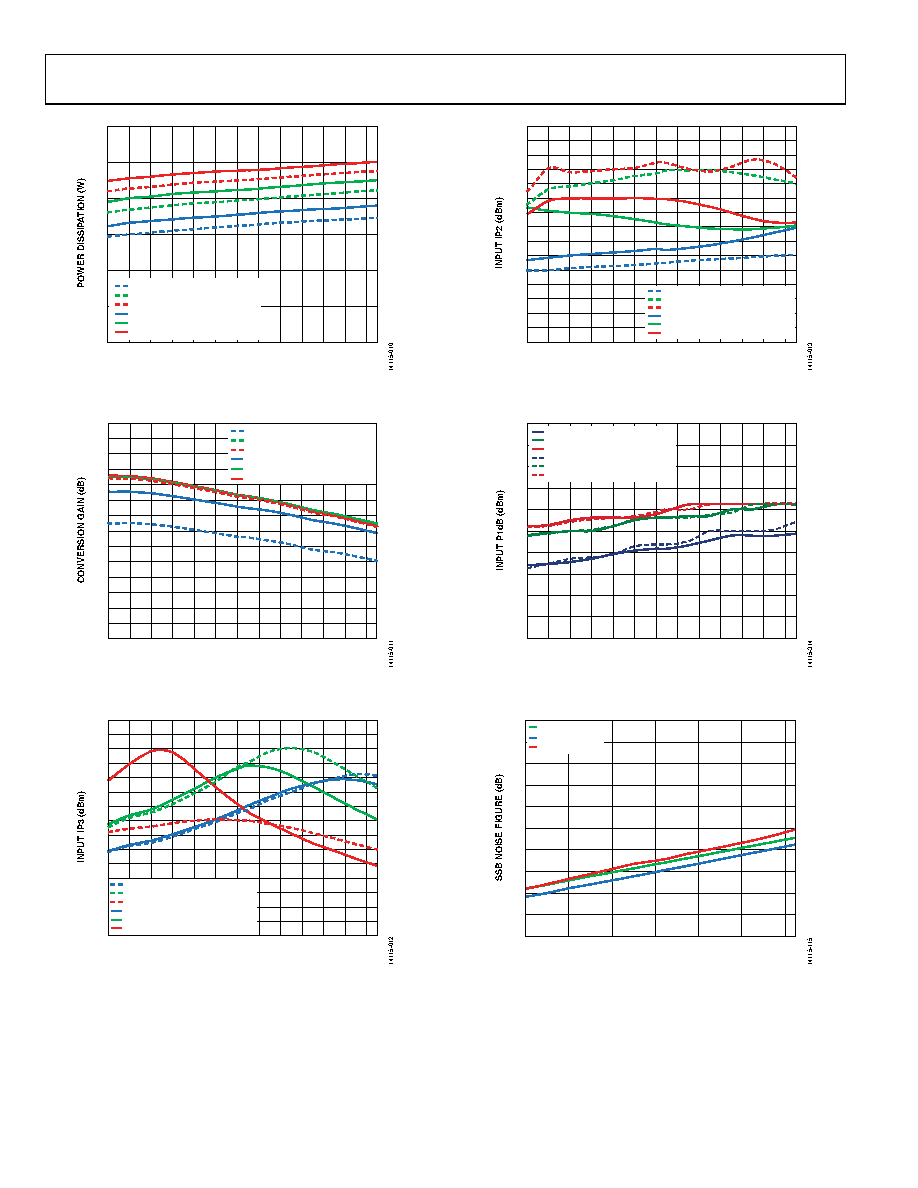

ADRF6614
Data Sheet
Rev. 0 | Page 14 of 61
1.5
1.7
1.9
2.1
2.3
2.5
2.7
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
TEMPERATURE (°C)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 10. Power Dissipation vs. Temperature for Three RF Frequencies
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
TEMPERATURE (°C)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 11. Power Conversion Gain vs. Temperature for Three RF Frequencies
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
TEMPERATURE (°C)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 12. Input IP3 vs. Temperature for Three RF Frequencies
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
TEMPERATURE (°C)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 13. Input IP2 vs. Temperature for Three RF Frequencies
TEMPERATURE (°C)
5
6
7
8
9
10
11
12
13
14
15
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2700MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2700MHz, HIGH-SIDE LO
Figure 14. Input P1dB vs. Temperature for Three RF Frequencies
8
9
10
11
12
13
14
15
16
17
18
–40
–20
0
20
40
60
80
TEMPERATURE (°C)
RF = 900MHz
RF = 1900MHz
RF = 2500MHz
Figure 15. SSB Noise Figure vs. Temperature for Three RF Frequencies
