MODEL: KSL
KSL SPECIFICATIONS
ES-3613 Rev.10 Page 4/5
http://www.m-system.co.jp/

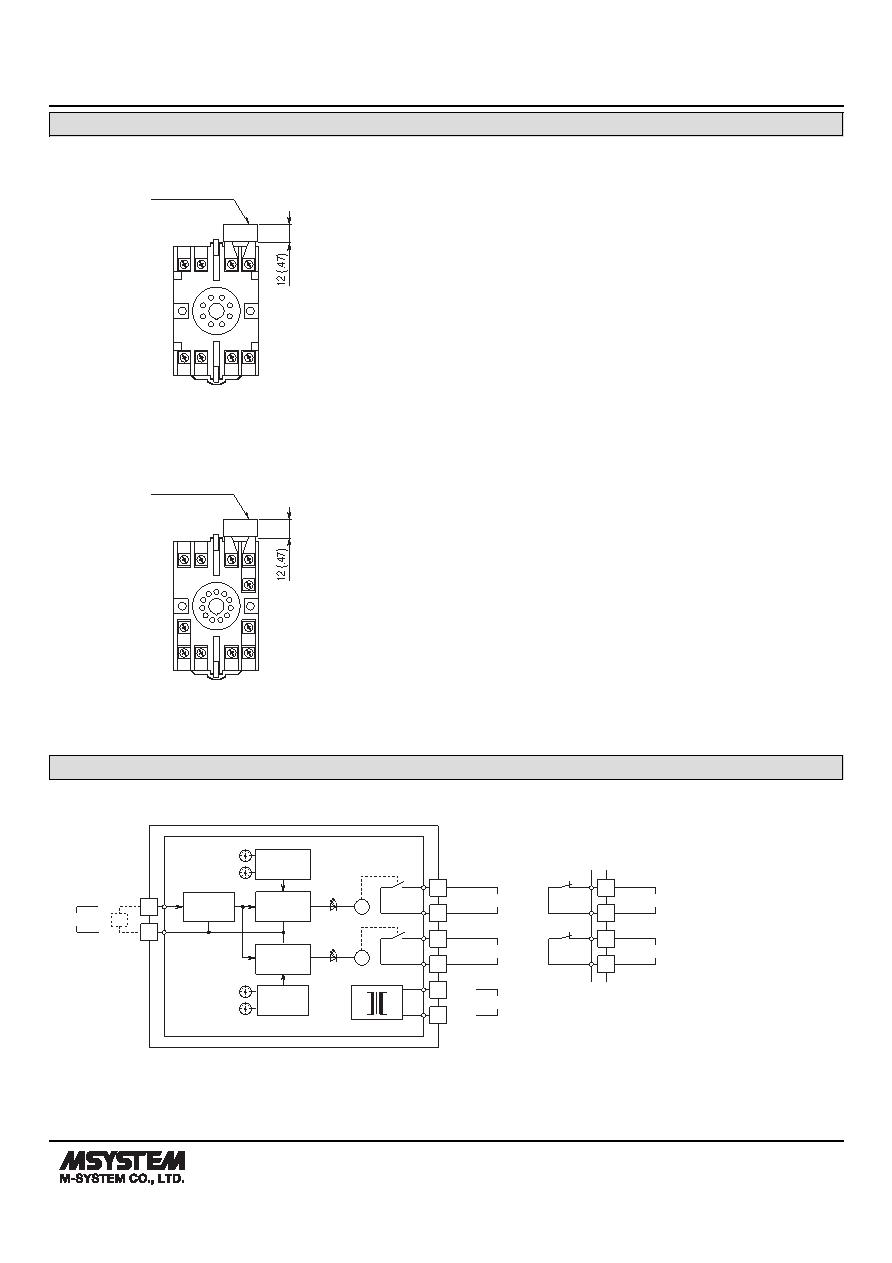

TERMINAL ASSIGNMENTS unit: mm (inch)
■OUTPUT CODE: 2, 3
5
6
2
1
8
7
3
4
INPUT RESISTOR
(model: REM)
Input shunt resistor attached
for current input.
■OUTPUT CODE: 5
7
8
2
1
11
10
3
9
4
INPUT RESISTOR
(model: REM)
5
6
Input shunt resistor attached
for current input.
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
■OUTPUT CODE: 2, 3
Ry
U(+)
V(–)
7
8
+
–
*
3
R
4
6
5
D / A
Converter
Ry
2
1
2
1
6
5
N.O. (make) Relay
N.C. (break) Relay
■
■
*Input shunt resistor attached for current input.
Base Socket
Comparator
Comparator
Low Drift
Amplifier
D / A
Converter
POWER
LO OUTPUT
LO OUTPUT
HI OUTPUT
HI OUTPUT
INPUT
ROTARY
SWITCH
ROTARY
SWITCH
