MODEL: LRP

http://www.m-system.co.jp/

LRP SPECIFICATIONS

ES-1977 Rev.15 Page 3/5

12

OUT

20mA

0

1000var

(Lead)

1000

(Lag)

0

OUT

+10V

4

12

OUT

20mA

0

OUT

+10V

4

-10V

-10V

0

1000var

(Lead)

1000

(Lag)

0

1000var

(Lead)

1000

(Lag)

0

1000var

(Lead)

1000

(Lag)

• Negative in lag, positive in lead

• Negative in lead, positive in lag

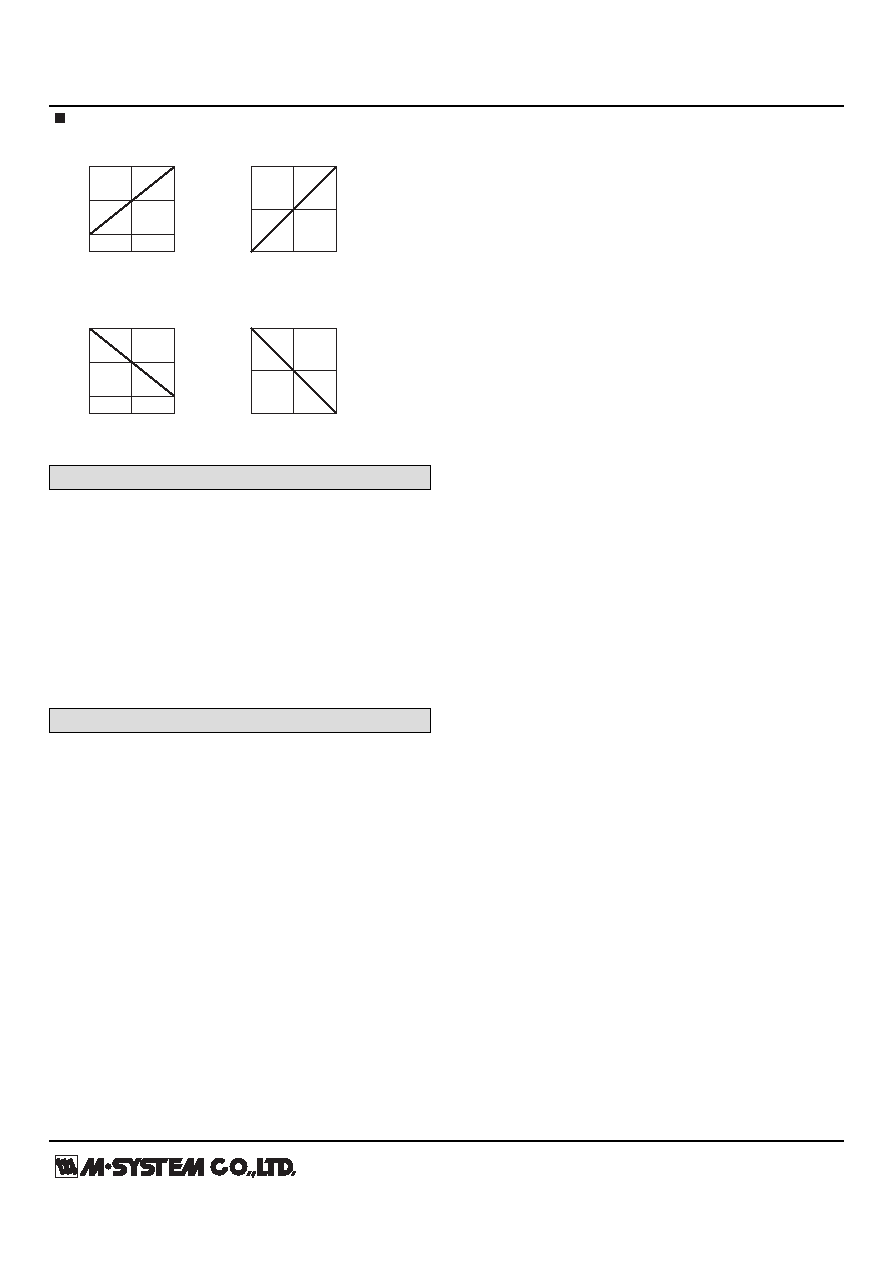

OPERATION DIAGRAM (example)

INSTALLATION

Auxiliary power supply

•AC: Operational voltage range: rating -15/+10 %,

50/60 Hz, approx. 2 VA

•DC: Operational voltage range: rating ±10 %,

or 85 – 150 V for 110 V rating, ripple 10 %p-p max.,

approx. 2 W (18 mA at 110 V)

Operating temperature: -10 to +55°C (14 to 131°F)

Operating humidity: 30 to 85 %RH (non-condensing)

Mounting: Surface or DIN rail

Weight: 450 g (0.99 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.5 % (at 23°C ±10°C or 73.4°F ±18°F,

45 – 65 Hz)

Response time: ≤ 2 sec. (0 – 100 % ±1 %)

Ripple: 0.5 %p-p max.(The output ripple may increase when

there is great difference between the frequencies of input

signal and power supply)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @ 1 minute

(voltage input to current input to output to auxiliary power

to ground)

Impulse withstand voltage: 1.2 / 50 μsec., ±5 kV

(input to output or ground)
