MODEL: R1MS-GH3
R1MS-GH3 SPECIFICATIONS
ES-5671 Rev.12 Page 3/8
http://www.m-system.co.jp/

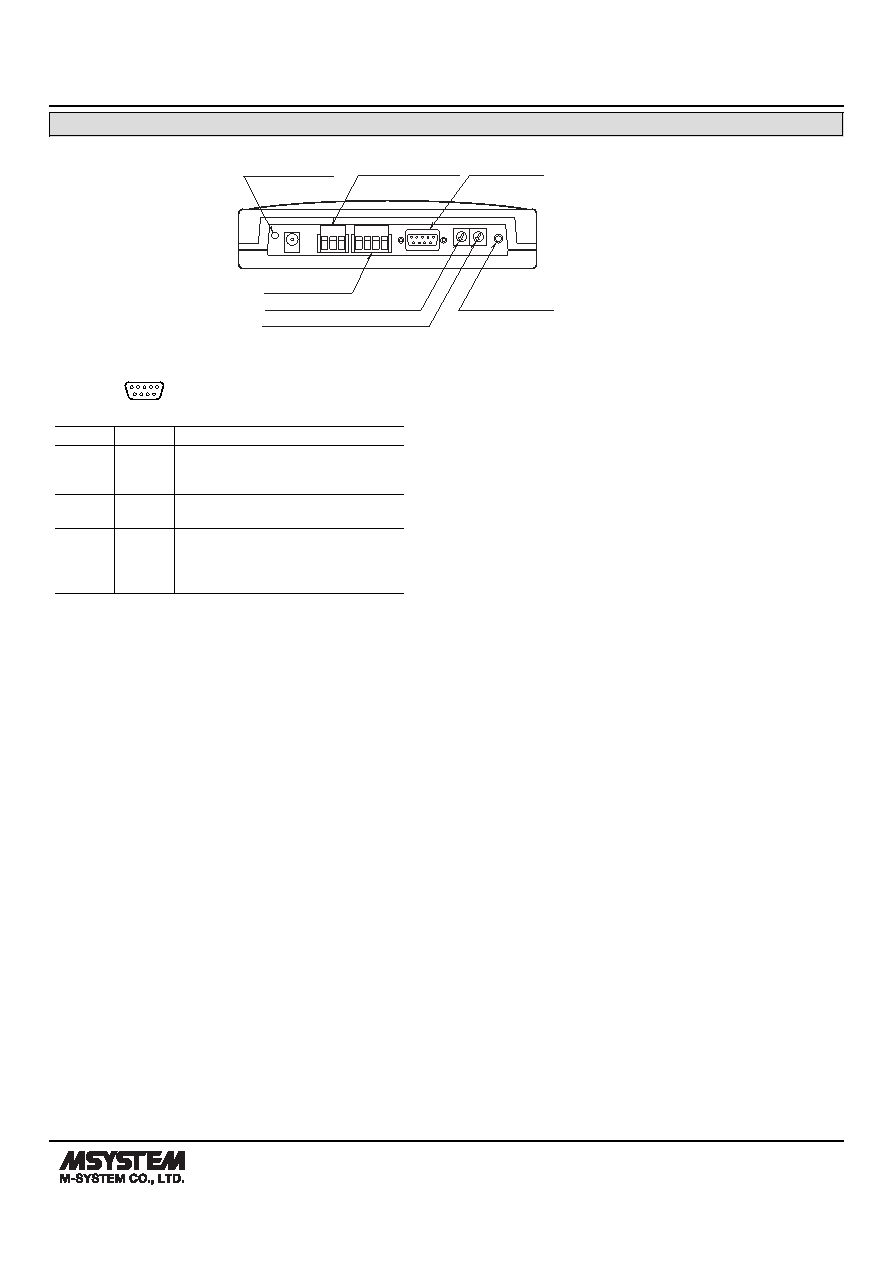

EXTERNAL VIEW
RS-485 Connector
Power / FG Terminals
Node Address Setting Rotary SW
Operating Mode Setting Rotary SW
Configurator Jack
RS-232-C
9-pin Connector
RUN Indicator LED
ABBR.
PIN NO.
EXPLANATION OF FUNCTION
BA (SD)
2
Transmitted Data
BB (RD)
3
Received Data
AB (SG)
5
Signal Common
CB (CS)
7
Clear to Send
CA (RS)
8
Request to Send
1
Not Used.
4
DO NOT connect. Connecting may
6
cause malfunctions.
9
1
5
6
9
■ RS-232-C INTERFACE
