MODEL: R7E

R7E SPECIFICATIONS

ES-7807 Rev.13 Page 8/31

http://www.m-system.co.jp/

EXTENSION MODULE

A ‘basic’ module can be attached with one ‘extension’ module. The extension module is powered from the basic module.

By combining two modules, single station can handle mixed analog and discrete signals, 32-point discrete inputs, 32-point

discrete outputs, 16-point discrete I/Os and other combinations of signals.

■ OUTPUT AT THE LOSS OF COMMUNICATION

The extension module is set to ‘Hold Output’ by factory default setting. The PC Configurator software is used to change the

setting to ‘Reset Output.’

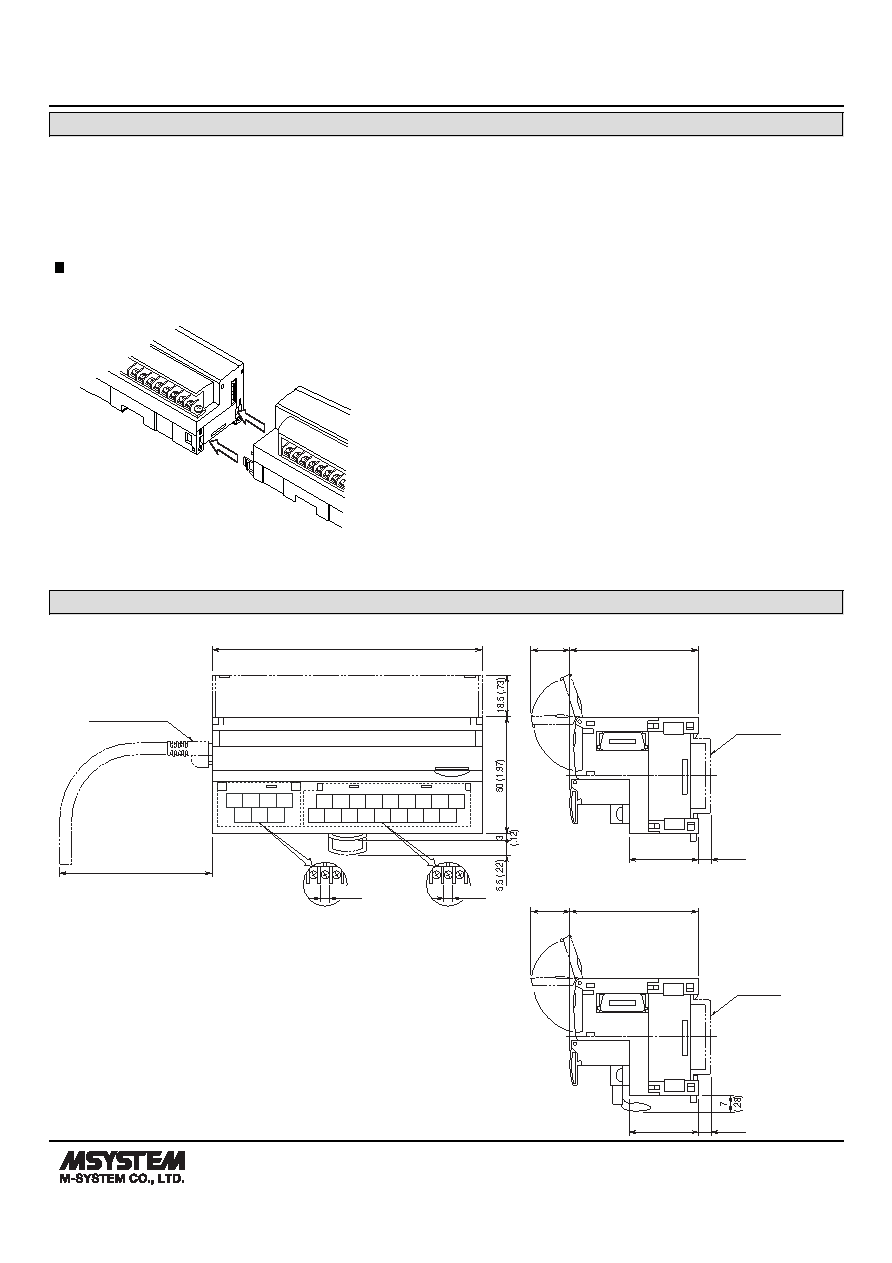

CONNECTING THE EXTENSION MODULE

1) Remove the extension connector cover located at the side of the basic module.

2) Connect the extension module.

3) Mount the combined module on a DIN rail.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

■ BASIC MODULE

4

5

6

7

1

2

3

10 11 12 13

2

3

4

1

15 16 17 18

7

8

9

6

14

5

• R7E-TS4

30 (1.18)

65 (2.56)

[5 (.20)]

DIN RAIL

35mm wide

54 (2.13)

17 (.66)

115 (4.53)

RJ-45 CONNECTOR

7–M3 SCREW

TERMINALS for POWER

18–M3 SCREW

TERMINALS for I/O

6 (.24)

6 (.24)

30 (1.18)

[5 (.20)]

DIN RAIL

35mm wide

54 (2.13)

17 (.66)
