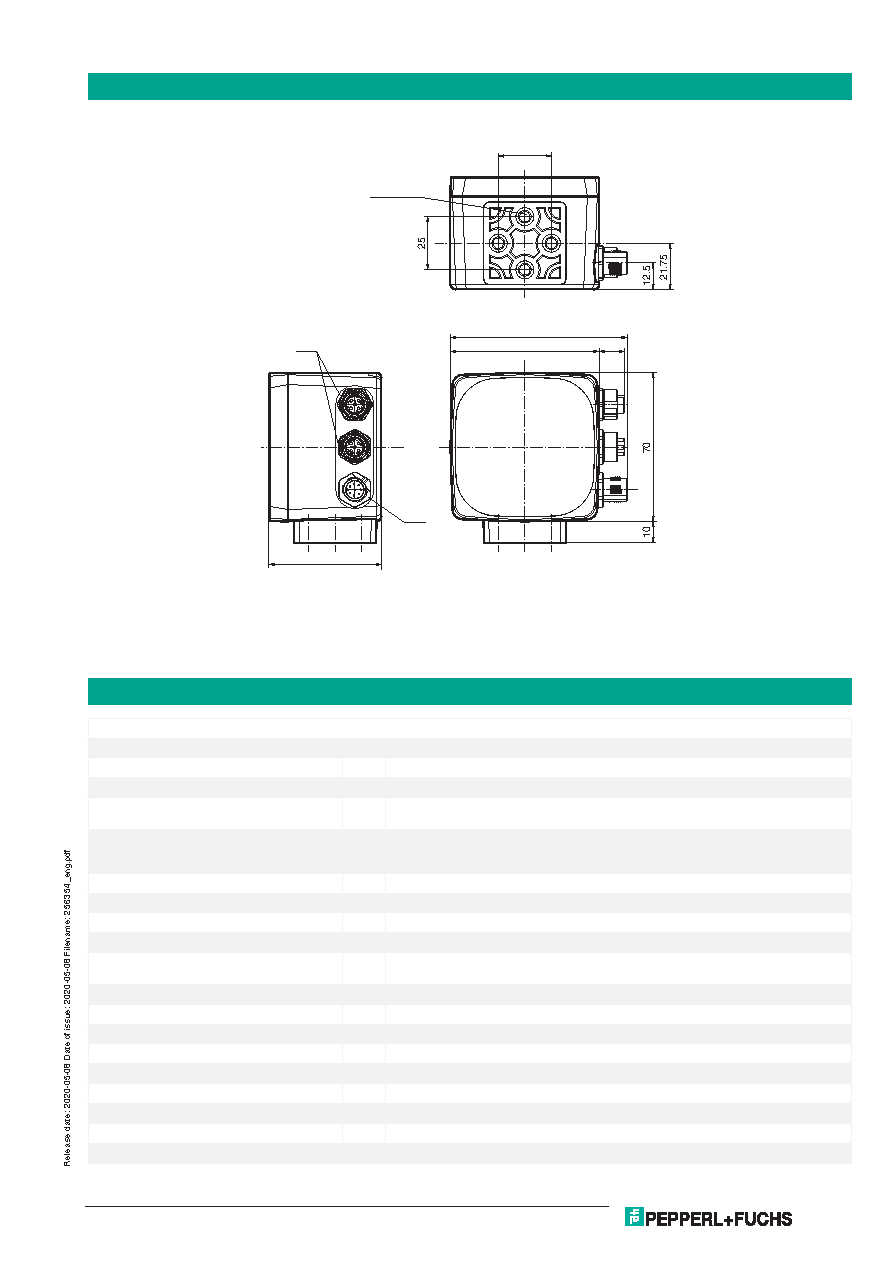

Dimensions

25

12

70

83.8

54

M12

M12

M6 x 9 (4x)

Technical Data

General specifications

Light type

Integrated LED lightning (white)

Polarization filter

yes

Symbologies

Data Matrix, Code 39, Code 128, Int 2 of 5, EAN13, Pharmacode

Read distance

70 ... 180 mm

Nominal distance: 120 mm

Reading field

Minimum read field: 28 mm x 45 mm

Read field at nominal distance: 45 mm x 70 mm

Maximum read field: 65 mm x 105 mm

Modul size

Minimum module size: 0.2 mm

Evaluation frequency

up to 100 Hz

Target velocity

triggered max. 10 m/s

Data Matrix

Symbol size

rectangular up to 144 x 144 modules

rectangular up to 16 x 48 modules

Data format

ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646

Orientation

omnidirectional

Nominal ratings

Camera

Type

CMOS , Global shutter

Number of pixels

752 x 480 pixels

Gray scale

256

Image recording

real-time , Program-controlled or triggered externally

Functional safety related parameters

Stationary read device

OPC120P-F201-R2

2
