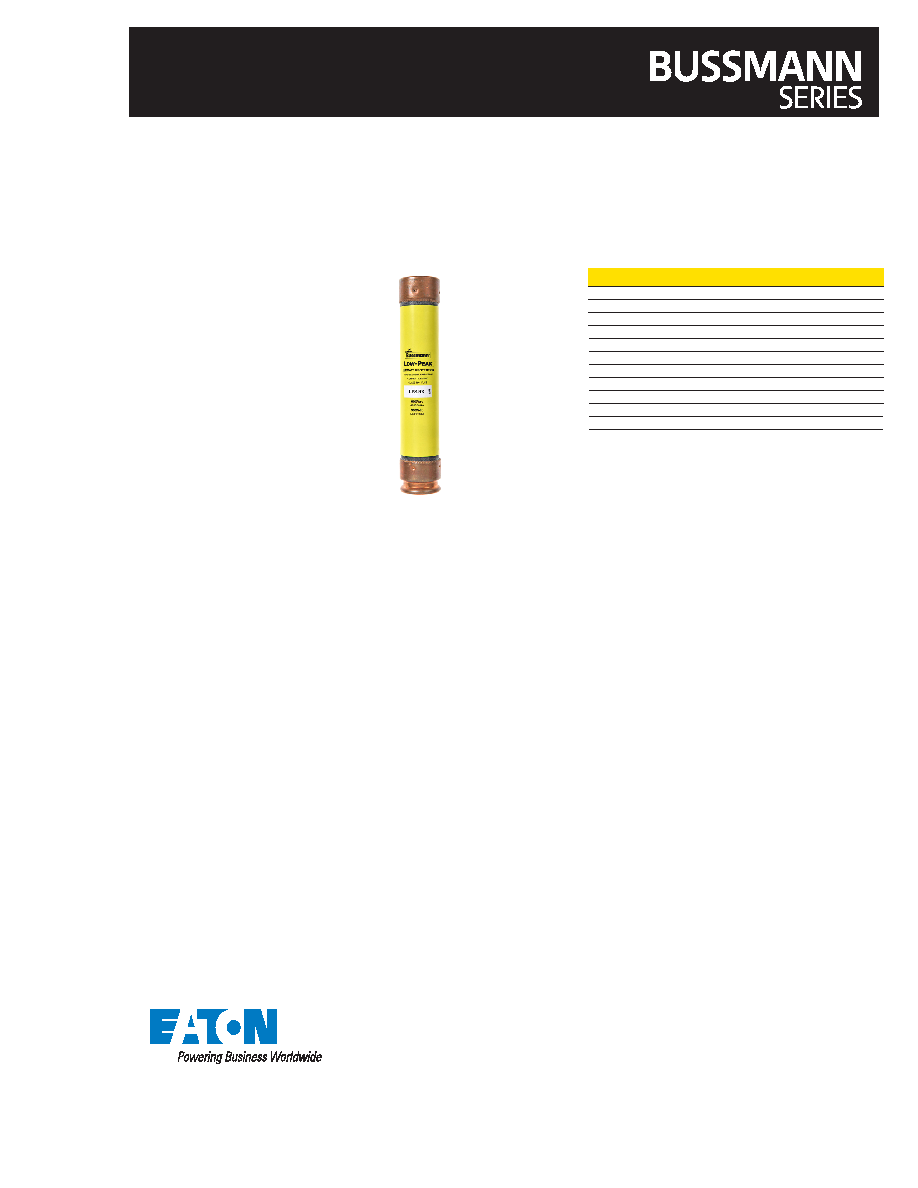

1 / 4 page  Technical Data 1001 Effective August 2018 Supersedes March 2017 LPS-RK — 600 Vac/300 Vdc, 1⁄10-60A, dual element, time-delay fuses Catalog symbols: • LPS-RK-_SP (non-indicating) • LPS-RK-_SPI (indicating Description: Ultimate protection Class RK1 dual element, current-limiting, time-delay fuses available with optional open fuse indication on select ratings. Time-delay – 10 seconds (minimum) at 500% of rated current. Rating • Volts • 600 Vac • 300 Vdc* • Amps 1/10-60 A • IR • 300 kA Vac RMS Sym. • 100 kA DC * DC rating does not apply all indicating versions (LPS-RK-_ SPI) and the LPS-RK-60SP, non-indicating fuse. Agency information • UL Listed, Guide JDDZ, File E4273 • CSA Certified, Class 1422-02, File 53787, Class RK1 per CSA C22.2, No. 248.12 • CE Catalog no. LPS-RK-1/10SP LPS-RK-11/2SP LPS-RK-41/2SP LPS-RK-171/2SP* LPS-RK-2/10SP LPS-RK-16/10SP LPS-RK-5SP LPS-RK-20SP* LPS-RK-3/10SP LPS-RK-18/10SP LPS-RK-56/10SP LPS-RK-25SP* LPS-RK-4/10SP LPS-RK-2SP LPS-RK-6SP* LPS-RK-30SP* LPS-RK-1/2SP LPS-RK-21/4SP LPS-RK-61/4SP* LPS-RK-35SP* LPS-RK-6/10SP LPS-RK-21/2SP LPS-RK-7SP* LPS-RK-40SP* LPS-RK-8/10SP LPS-RK-28/10SP LPS-RK-8SP* LPS-RK-45SP* LPS-RK-1SP LPS-RK-3SP LPS-RK-9SP* LPS-RK-50SP* LPS-RK-11/8SP LPS-RK-32/10SP LPS-RK-10SP* LPS-RK-60SP* LPS-RK-11/4SP LPS-RK-31/2SP LPS-RK-12SP* LPS-RK-14/10SP LPS-RK-4SP LPS-RK-15SP* * Open fuse indication available by inserting the suffix “I,” e.g., LPS-RK-15SPI. Requires 75Vac minimum voltage. Indicating fuses and the LPS-RK-60SP non-indicating fuse are not Vdc rated. Carton quantity • 10 Applications • Feeder and branch circuits • Motors • Transformers • Solenoids • General purpose circuits Features and benefits • Industry’s only UL Listed and CSA Certified fuse with a 300kA interrupting rating that allows for simple, worry-free installation in virtually any application. • Fast short-circuit protection and dual-element, time-delay performance provide ultimate protection. • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses. • Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective coordination easy. • Time-delay permits 130% FLA sizing for back-up motor protection. • Current-limitation protects downstream components against damaging thermal and magnetic effects of short-circuit currents. • Protects against single-phase motor damage. • Proper sizing can provide “no damage” Type 2 coordinated protection for NEMA and IEC motor controllers. |
