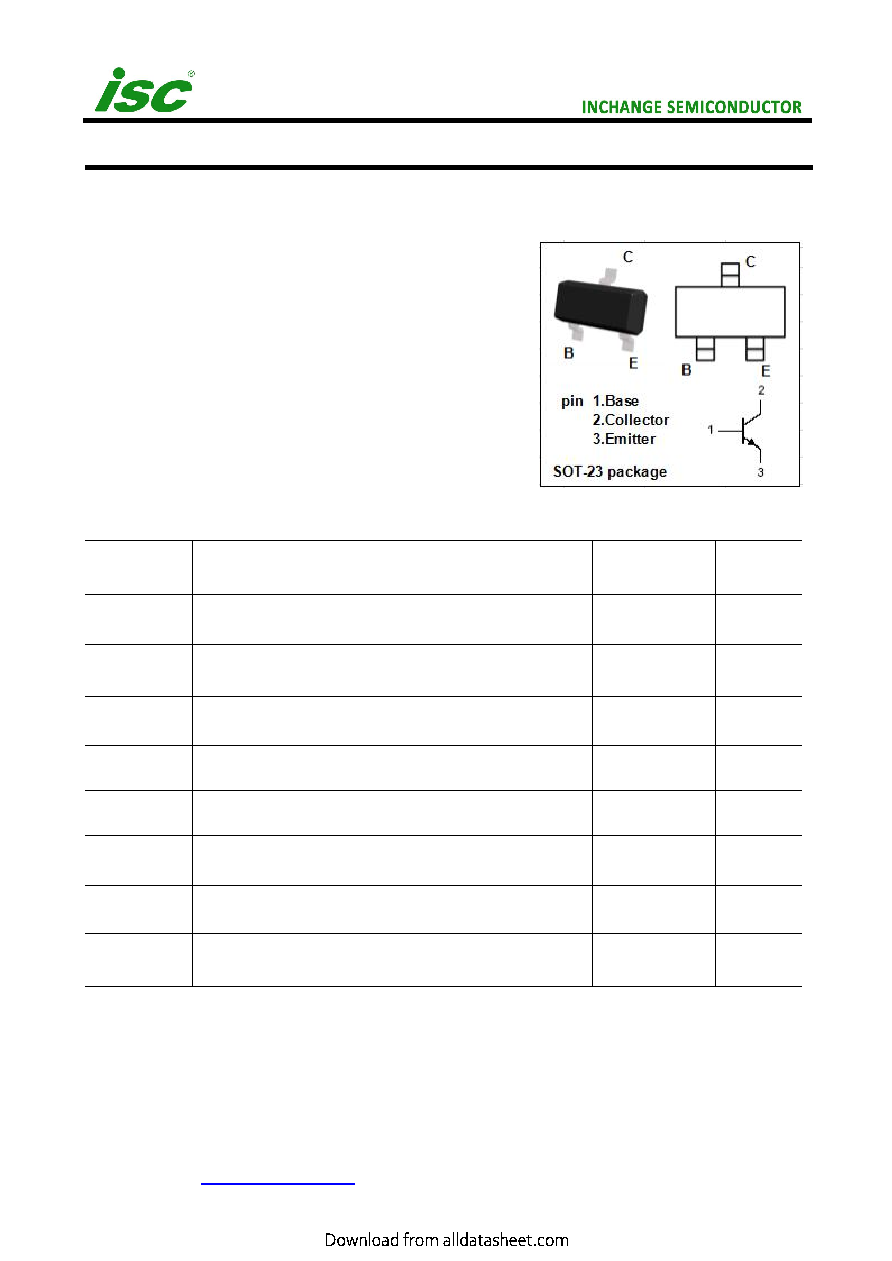

isc Silicon NPN Power Transistors
STR1550
DESCRIPTION
·
Collector-Emitter Saturation Voltage-
: VCE(sat) = 0.2V(Max.)@IC= 0.02A
·
Collector-Emitter Breakdown Voltage-
: V(BR) CEO= 500V(Min)
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·
Relay drivers,lamp drivers,motor drivers
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
500
V
VCEO
Collector-Emitter Voltage
500
V
VEBO
Emitter-Base Voltage
9
V
IC
Collector Current-Continuous
0.5
A
ICM
Collector Current-Pulse
1
A
PC
Collector Power Dissipation
TC=25℃
0.5
W
Tj
Max.Junction Temperature
150
℃
Tstg
Storage Ttemperature Range
-65~150
℃
