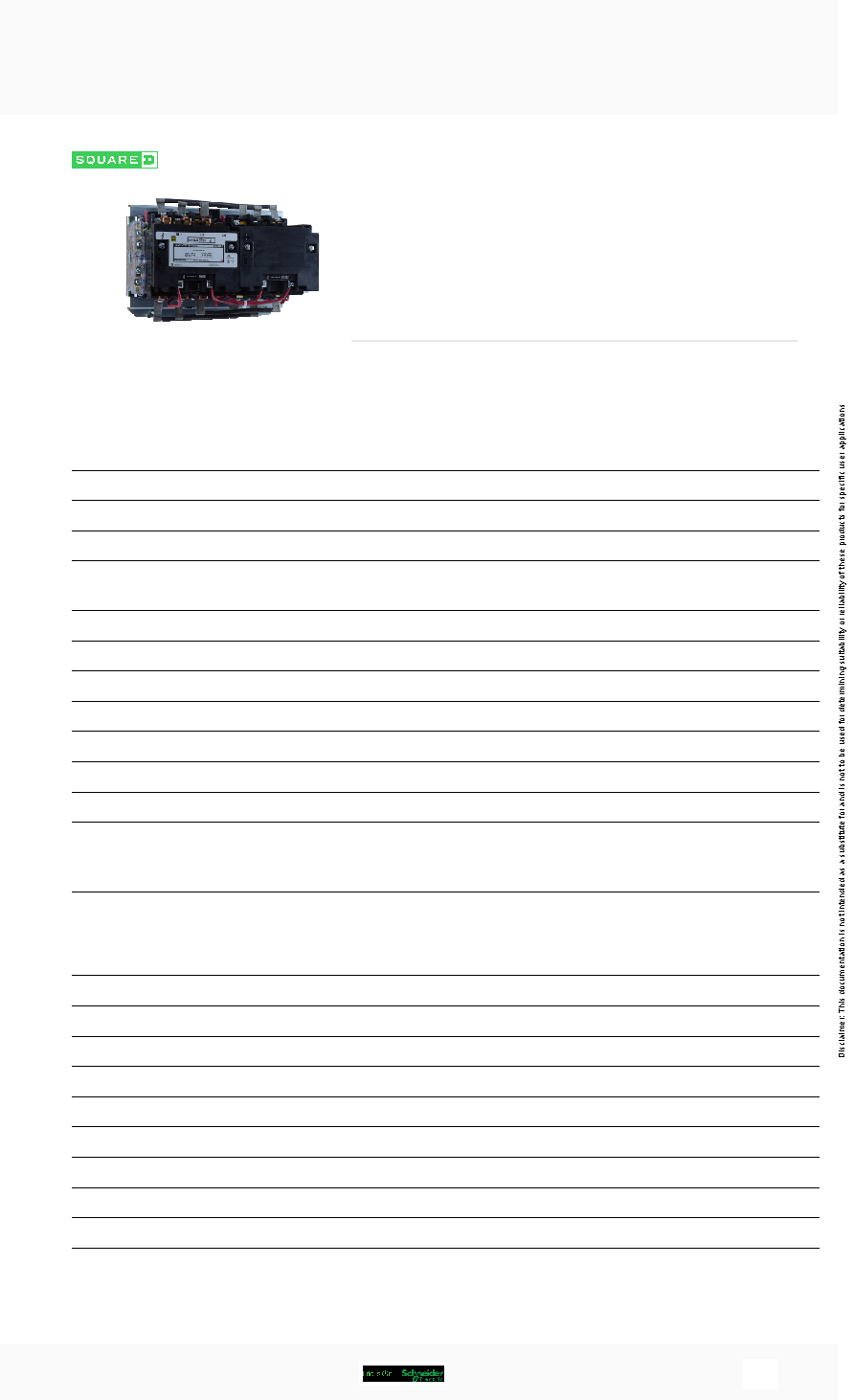

Product data sheet

Specifications

NEMA Contactor, Type S, reversing,

horizontal, Size 2, 45A, 25 HP at

575 VAC, 3 phase, 3 pole, 24 VAC

coil, open style

8702SDO2V01S

Product availability : Non-Stock - Not normally stocked in

distribution facility

Main

Product Type

Contactor

Product Range

Type S

Contactor Type

Reversing

Complementary

NEMA Size

2

Rated Current

45 A

Number of Poles

3P

Mounting Orientation

Horizontal

Wiring Mode

3 wires

Maximum Voltage Rating

600 V AC

Phase

3 phase

Horsepower Rating

10 HP 200 V AC

15 HP 230 V AC

25 HP 460 V AC

25 HP 575 V AC

SCCR

Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC

Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC

Coil Voltage

24 V AC 60 Hz

Control Circuit Type

Separate control circuit

Control Units

No control units

Pilot Light

No indicator

Other Equipment

Fuse not supplied

Terminal Type

Screw clamp terminals

Height

6.88 in (174.75 mm)

Width

9.00 in (228.60 mm)

Depth

6.03 in (153.16 mm)
