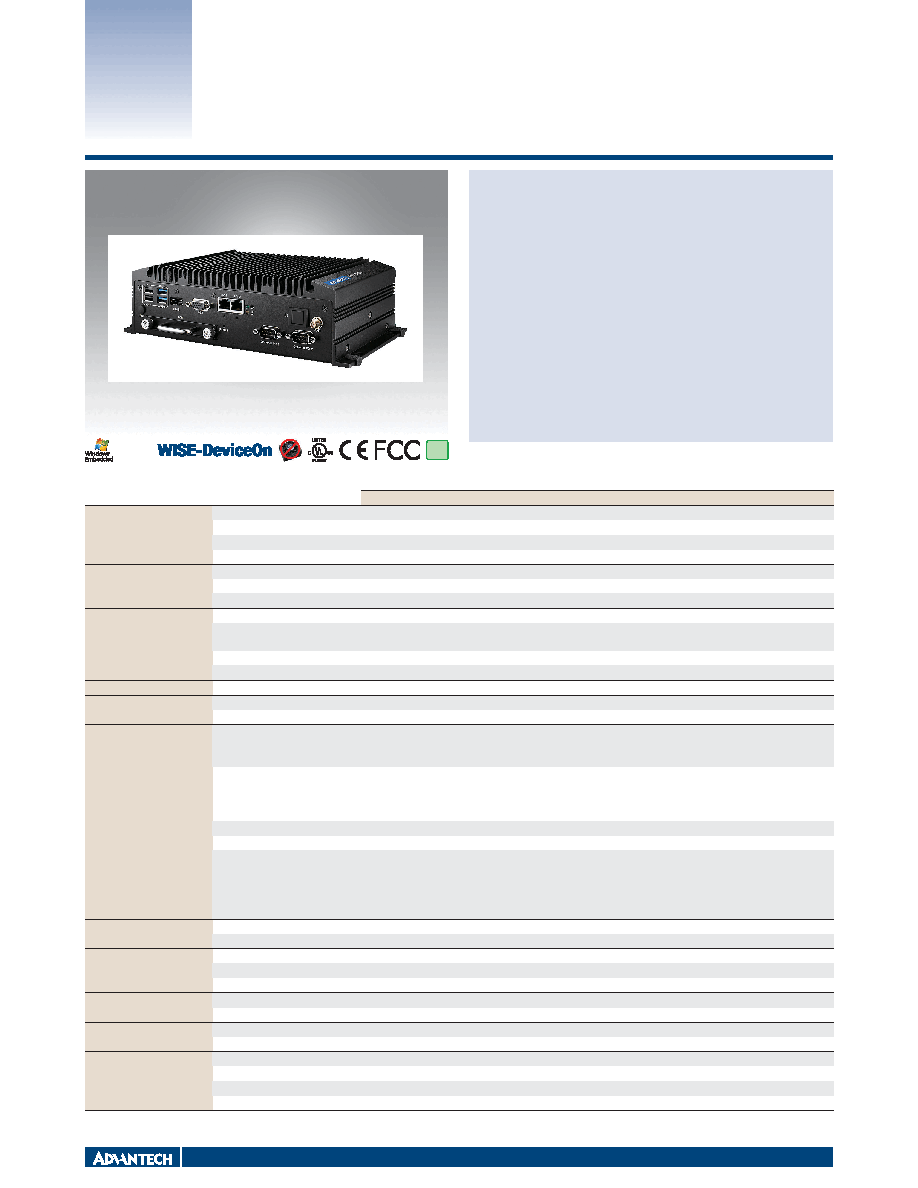

Fanless Embedded Box PCs

Features

TS-206

In-Vehicle Full HD NVR w/4 PoE Ports

6th Gen. Intel® Core i7 6600U / Core i5

6300U SoC Fanless Box PC

ƒ

Intel® Core i7-6600U 2.6GHz / Core i5-6300U 2.4GHz SoC

ƒ

4 PoE Ports to Support Mainstream IP Cameras

ƒ

Diversity Communication Abilities, ex. WWAN, WLAN

ƒ

Intelligent Vehicle Power Ignition

ƒ

12/24VDC with E-Mark certification

ƒ

1 x Removable 2.5" drive bay

ƒ

Advantech DeviceOn built-in for easy manageability

Specifications

TS-206-U6A1E

TS-206-U4A1E

Processor System

CPU

Intel® Core i7-6600U Dual Core

Intel® Core i5-6300U Dual Core

Frequency

2.6 GHz

2.4 GHz

L3 Cache

4 MB

3 MB

BIOS

AMI EFI 128 Mbit

Memory

Technology

DDR3L 1600 MHz

Max. Capacity

16GB

Socket

2 x 204-pin SO-DIMM

Graphics

Chipset

HD Graphics 520

Graphic Engine

DurectX 12, DirectX 11.3, OpenGL 4.4, and OpenCL 2.1

Full AVC/VC1/MPEG2 HW Decode

VGA

1920 x 1200@60Hz or 2048 x1152@60Hz with reduced blanking

HDMI

Lockable HDMI connector, up to 4K at 24 Hz

Audio

Main System

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Ethernet

LAN #1

10/100/1000 Mbps Intel® I219LM

LAN #2

10/100/1000 Mbps Intel® I210-IT

I/O Interface

Power over Ethernet, PoE

4 x 10/100 Mbps

-4ports full-load, IEEE802.3af Class2(7Watt)

-2ports full-load, IEEE802.3af Class3(15.4Watt)

N/A

Serial Ports

2x non-isolated RS-232/422/485 with auto flow

control

2x isolated RS-232/422/485 with auto flow control

(3KV isolation)

2x non-isolated RS-232/422/485 with auto flow

control

CANBus

Option, 2ch CANBus 2.0A/B (1xCOM will be replaced)

USB Interface

2 x USB 2.0 & 2 x USB3.0

GPIO

6 x DI & 2 x DO w/ 3KV isolation

Input Voltage: 0 to 30 VDC,

Output Current: Max. 500 mA per channel

On-state Voltage: 24 VDC nominal, open collector to

30 VDC

Other

Watchdog timer

255-level timer interval, setup by software

TPM

TPM2.0

Expansion

Mini PCIe #1

Full-size Mini PCIe w/SIM holder (PCIe, USB interface)

Mini PCIe #2

Full-size Mini PCIe (PCIe, USB, SATA interface)

Mini PCIe #3/4

2 x Full-size Mini PCIe w/SIM holders (USB interface)

Storage

2.5" Drive Bay

1 x removable 2.5" drive bay (Standard 9.5mm height, 15mm height support by project)

mSATA

Laverage MiniPCIe #2 slot

Software Support

Microsoft Windows

WES7, Windows7, Windows 10

Linux

Support by project

Power Requirement

Power Input Voltage

12/24VDC with E-Mark certification

Vehicle Power Ignition

Selectable boot-up & shut-down voltage, on/off delay time

Power Consumption

26W (Typical), 76W (Max)

26W (Typical), 46W (Max)

Isolation

1.5 KV Isolated

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 15-Oct-2021
