ISC16DP15LM Datasheet(PDF) 1 Page - Infineon Technologies AG

Part # ISC16DP15LM
Description  OptiMOSTM Power-Transistor, -150 V
PDF  11 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  INFINEON [Infineon Technologies AG]
Direct Link  http://www.infineon.com
Logo INFINEON - Infineon Technologies AG

ISC16DP15LM Datasheet(HTML) 1 Page - Infineon Technologies AG

  ISC16DP15LM Datasheet HTML 1Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 2Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 3Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 4Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 5Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 6Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 7Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 8Page - Infineon Technologies AG ISC16DP15LM Datasheet HTML 9Page - Infineon Technologies AG Next Button
Zoom Inzoom in Zoom Outzoom out

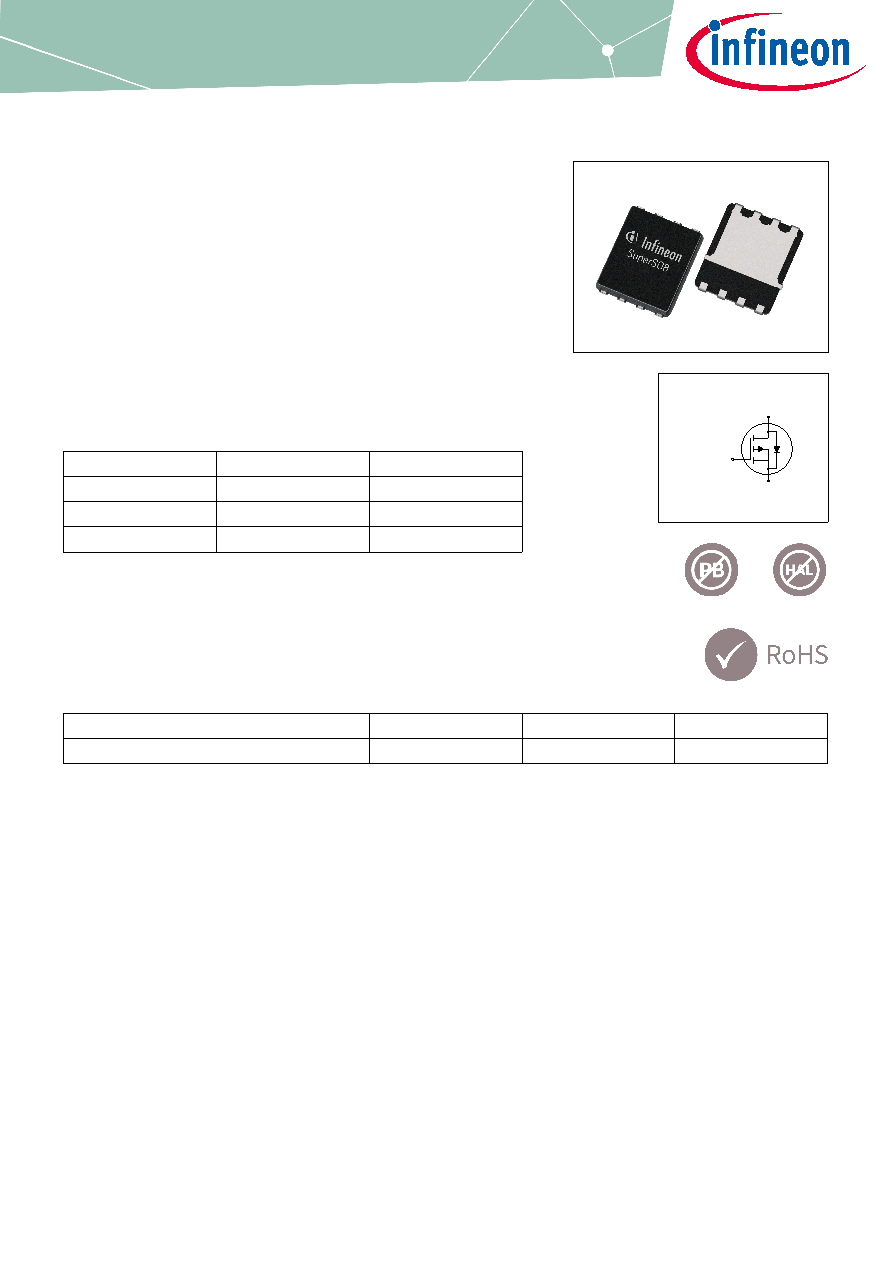

 1 / 11 page
background image
1
ISC16DP15LM
Rev.2.0,2022-10-07
Final Data Sheet
1
2
3
4
5
6
7
8
4
3
2
1
5
6
7
8
SuperSO8
Drain
Pin 5-8
Gate
Pin 4
Source
Pin 1-3
*1
*1: Internal body diode
MOSFET
OptiMOSTMPower-Transistor,-150V
Features
•P-Channel
•Verylowon-resistanceRDS(on)@VGS=4.5V
•100%avalanchetested
•LogicLevel
•Enhancementmode
•Pb-freeleadplating;RoHScompliant
•Halogen-freeaccordingtoIEC61249-2-21
Productvalidation
FullyqualifiedaccordingtoJEDECforIndustrialApplications
Table1KeyPerformanceParameters
Parameter
Value
Unit
VDS
-150
V
RDS(on),max
160
m
Ω
ID
-22
A
Type/OrderingCode
Package
Marking
RelatedLinks
ISC16DP15LM
PG-TDSON-8
16DP15LM
-


Similar Part No. - ISC16DP15LM
