See Section I

for analab Services

G-33

Ferrite Cable

Clamp, Model

PCLM-FT

($2.50),

Attaches

to Standard

Connectors

to Provide

EMI Protection

FERRITE

CORE

INCLUDED

Ferrite Cable Clamp

Ordering Example: PCLM-SMP-FT, ferrite cable clamp for subminiature connector, $2.50 ea.

Max Wire

Impedance (ohms)

Price

Compatible

Gage for

@ ±20%

Model No.

Each

Connectors (By Type) Duplex Wire @25 Mhz @100 Mhz Description

PCLM-FT

$2.50

OST, OSTW,

14 AWG

120

225

Ferrite Cable Clamp

(for Standard

HST, HSTW, OGP

Standard Size

Connectors)

GST, HGST, OTP

PCLM-SMP-FT

2.50

SMP, SMPW,

22 AWG

105

155

Ferrite Cable

(for Miniature

GMP, HGMP,

Clamp,

Connectors)

HMP, HMPW, MTP

Miniature Size

PCLM-SMP-RSC-FT

2.50

SMP, SMPW,

22 AWG

105

155

Ferrite Cable

(for Miniature

GMP, HGMP,

Clamp, Miniature Size

Connectors

HMP, HMPW, MTP

Use with RSC Cable

ALL MODELS AVAILABLE FOR FAST DELIVERY!

EMI Protection Hardware

with Nickel-Zinc Ferrite Cores

Cable Clamps for Standard and Miniature Connectors

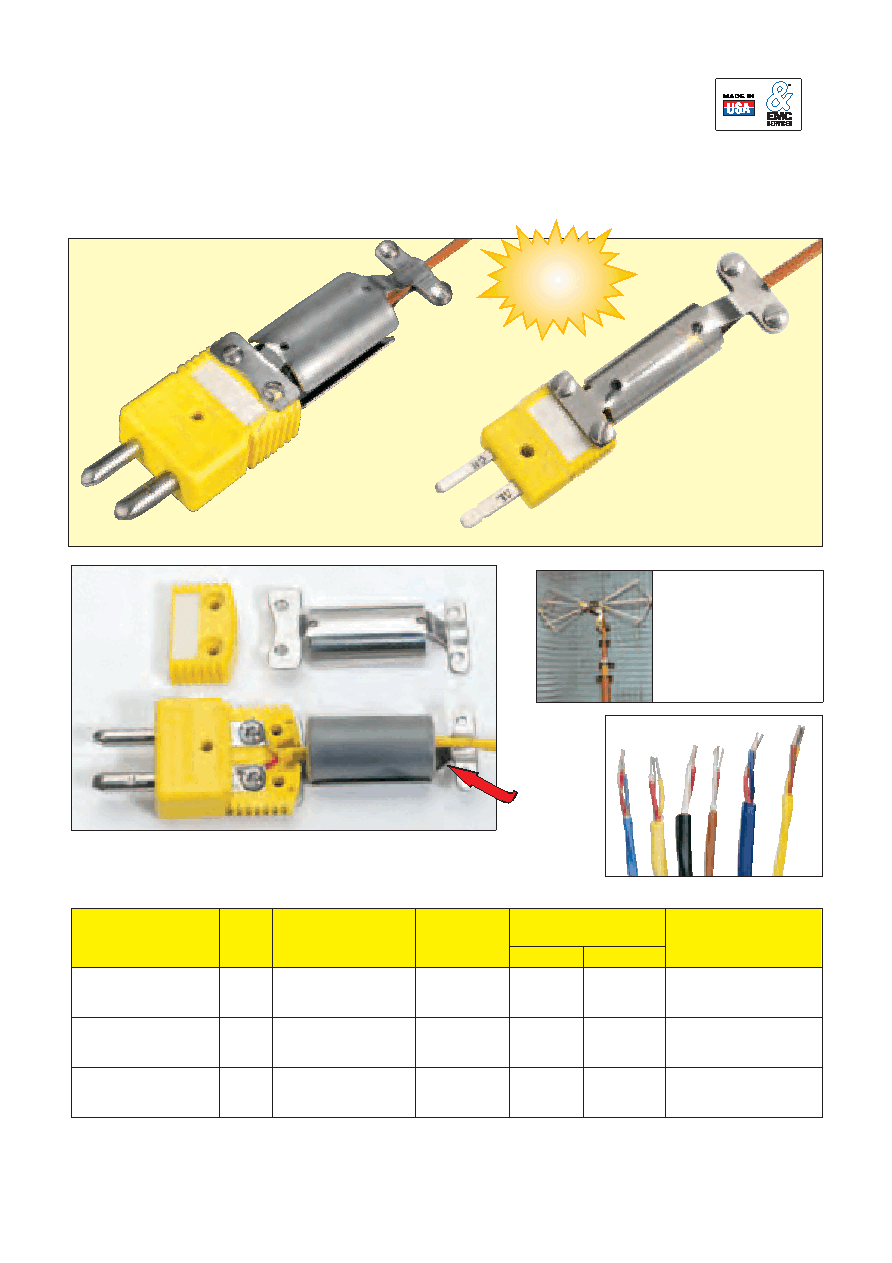

PCLM-SMP-FT

Ferrite Core and

Cable Clamp

PCLM-FT

Ferrite Core and

Cable Clamp

$2.50 ea.

Standard

Size

Miniature

Size

EMI/RFI Problems?

a

analab

&

&

®

analab

analab

&

&

®

® Can Help!

Complete EMC and FCC

Compliance Testing and

Technical Assistance.

For Complete Information

See Section I

Shown

Actual

Size

Each Clamp Comes

Complete with a

Ferrite Core

Covered by U.S and

International patents and

pending applications

PATENTED

Twisted Shielded Wire

See Page, H-36.
