Nexperia

PCMFxUSB3BA/C series

Common-mode EMI filter for differential channels with integrated bidirectional ESD protection

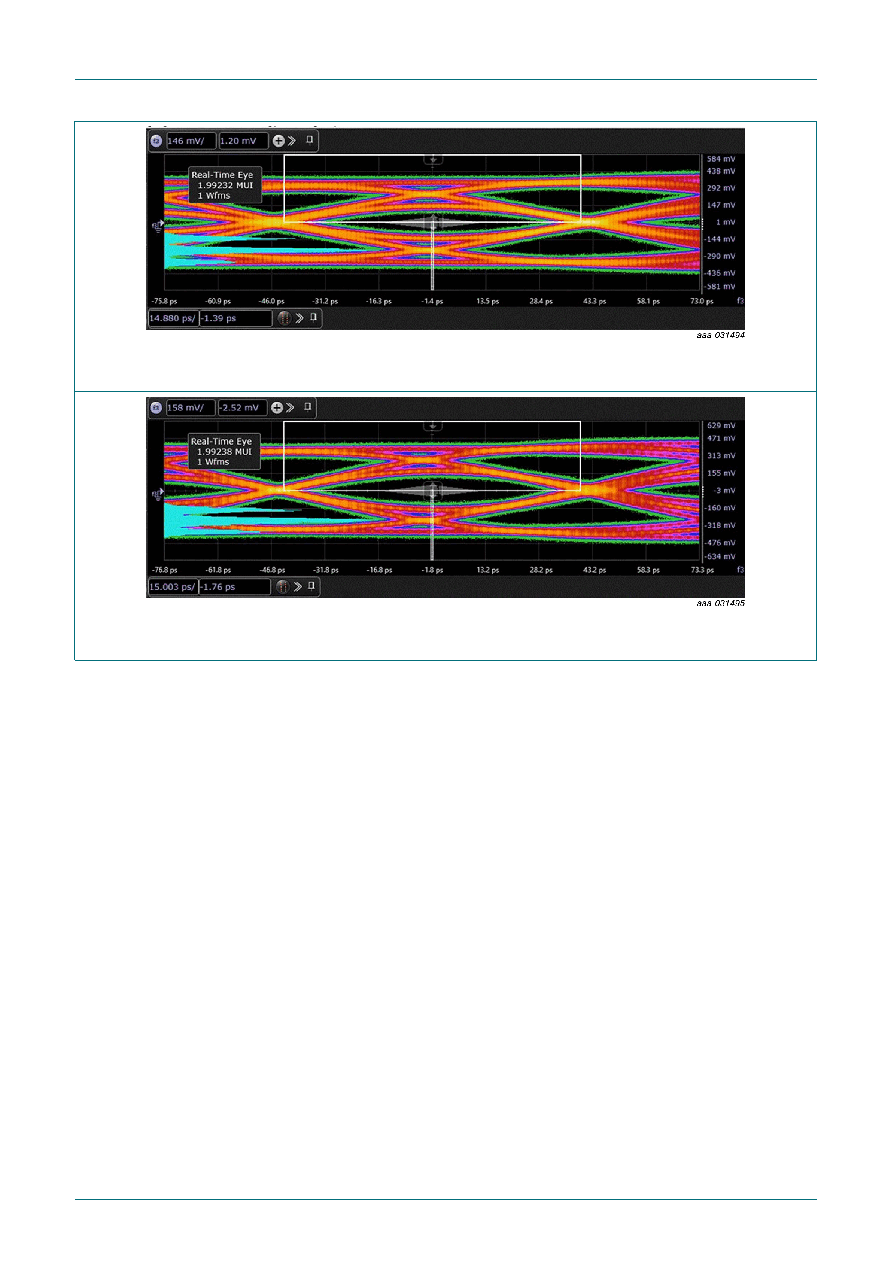

Worst cable model measured with CTLE gain setting 8 dB

Fig. 9. HDMI 2.1 12G FRL eye diagram, PCB with device; typical values

Worst cable model measured with CTLE gain setting 8 dB

Fig. 10. HDMI 2.1 12G FRL eye diagram, PCB without device; typical values

PCMFXUSB3BA_C_SER

All information provided in this document is subject to legal disclaimers.

©

Nexperia B.V. 2020. All rights reserved

Product data sheet

Rev. 4 — 12 May 2020

8 / 19
