LS1240A
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R108-002.I

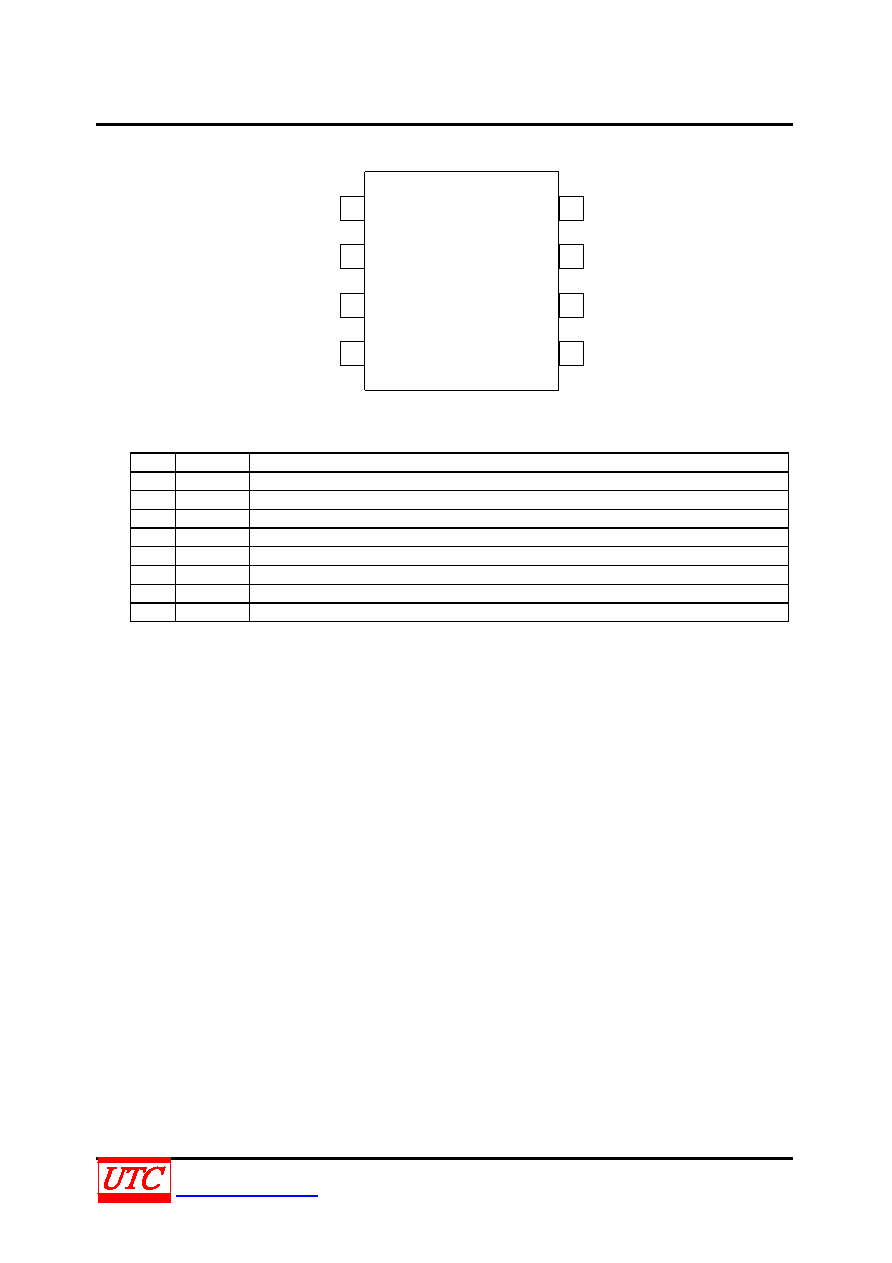

PIN CONFIGURATION
1
2
3
4
8
7
6
5
LINE
GND
CSW
Ra
LINE
NULL
OUT
Cr
UTC LS1240A
PIN DESCRIPTION
PIN
PIN NAME
DESCRIPTION
1
LINE
Connecting pin to B-wire
2
GND
Ground
3
Csw
Sweep rate control capacitor
4
Ra
Output frequency control resistor
5
OUT
Buzzer
6
NULL
Not connected
7
Cr
Rectifier capacitor
8
LINE
Connecting pin to A-wire
