PI3CSW12 Datasheet(PDF) 2 Page - Diodes Incorporated

Part # PI3CSW12
Description  High-Speed I3C 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  DIODES [Diodes Incorporated]
Direct Link  http://www.diodes.com
Logo DIODES - Diodes Incorporated

PI3CSW12 Datasheet(HTML) 2 Page - Diodes Incorporated

  PI3CSW12 Datasheet HTML 1Page - Diodes Incorporated PI3CSW12 Datasheet HTML 2Page - Diodes Incorporated PI3CSW12 Datasheet HTML 3Page - Diodes Incorporated PI3CSW12 Datasheet HTML 4Page - Diodes Incorporated PI3CSW12 Datasheet HTML 5Page - Diodes Incorporated PI3CSW12 Datasheet HTML 6Page - Diodes Incorporated PI3CSW12 Datasheet HTML 7Page - Diodes Incorporated PI3CSW12 Datasheet HTML 8Page - Diodes Incorporated PI3CSW12 Datasheet HTML 9Page - Diodes Incorporated Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 12 page
background image
2
www.diodes.com
March 2021
Diodes Incorporated
PI3CSW12
Document Number DS42881 Rev 4-2
A Product Line of
Diodes Incorporated
PI3CSW12
Pin Description
Name
Description
OE
Active LOW, Output enable
S
Select input
D
COM port
nD
I/O for I3C data path (port 1 and port 2)
Pin Configuration

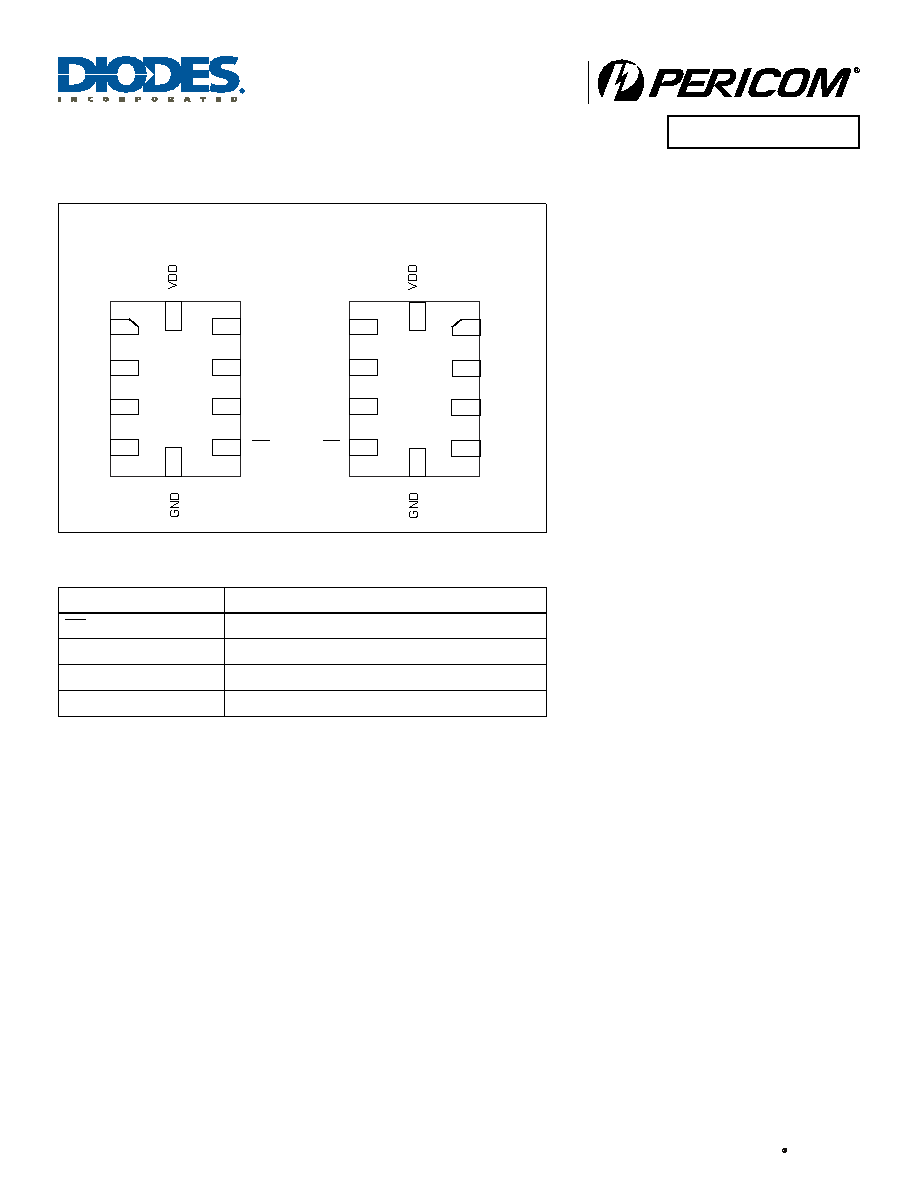

UQFN Package
(Top View)
1
2
3
4
9
8
7
6
10
5
1D+
1D-
2D+
2D-
S
D+
D-
OE
1
2
3
4
9
8
7
6
10
5
1D+
1D-
2D+
2D-
S
D+
D-
OE
UQFN Package
(Bottom View)
