CUI DEVICES | MODEL: PJ-059B | DESCRIPTION: DC POWER JACK

date 03/15/2023 | page 2 of 3

cuidevices.com

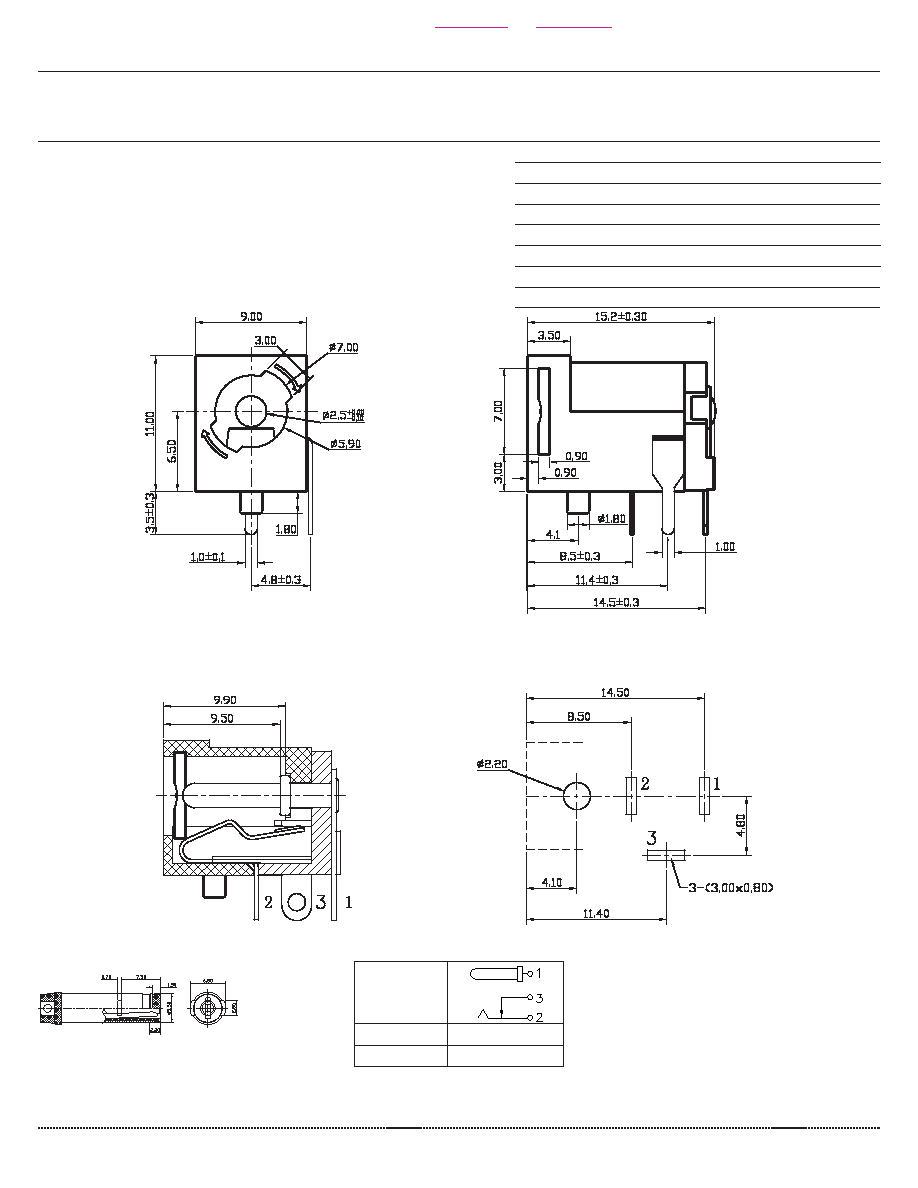

MECHANICAL DRAWING

MATING PLUG

Jack Insertion Depth: 9.5 mm

SCHEMATIC

Model

PJ-059B

Center Pin

Ø2.5 mm

Recommended PCB Layout

Top View

units: mm

tolerance:

X. ±0.50 mm

X.X ±0.30 mm

X.XX ±0.20 mm

X.XXX ±0.10 mm

PCB: ±0.05 mm

unless otherwise specified

DESCRIPTION

MATERIAL

PLATING/COLOR

center pin

brass

nickel

terminal 1

brass t=0.30

tin

terminal 2

bronze t=0.25

tin

terminal 3

brass t=0.30

tin

cover

PBT (UL94V-0)

black

housing

PBT (UL94V-0)

black

Additional Resources: Product Page | PCB Footprint
