Specifications are subject to change without notice (25.06.99)
1
Housing
Rated
Ordering no.
1) For non-flush mounting
diameter
operating
Namur
2) For flush mounting
dist. (Sn) 3)
3) Object: Grounded steel plate
M 14
3 mm 1)
DR 3 G
PG 21
5 mm 2)
DR 6 G
1 3/8”
10 mm 1)
DR 10 G
Housing material
Body
Chromatized steel
Front
Yellow thermoplastic
polyester
Back
Yellow thermoplastic
polyester
Cable
2 m, 2 x 0.25 mm2
black PVC
Weight
DR 3 G
60 g
DR 6 G
140 g
DR 10 G
140 g
Tightening torque
DR 3 G
17.5 Nm
DR 6 G
175.0 Nm
DR 10 G 175.0 Nm

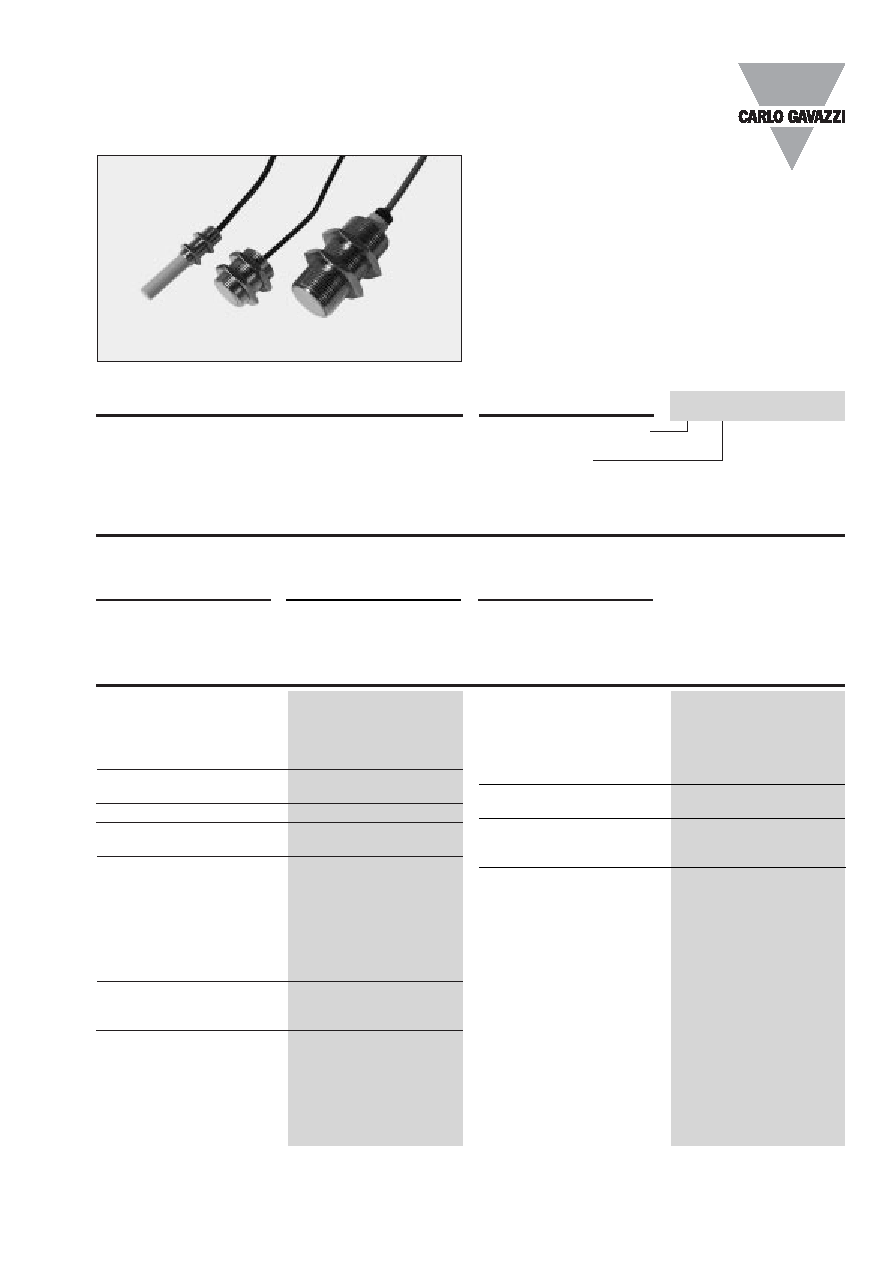

Proximity Sensors Capacitive
Steel Housing
Types DR G, M14, PG 21, 1 3/8”,Namur
• Steel housing, cylindrical
• Diameter: M 14, PG 21
• Sensing distance: 3 to 5 mm
• Output: Namur (DIN 19 234)
• 2 m cable
Product Description
Type: Capacitive proximity
switch
Housing material
Capacitive proximity switch
in cylindrical steel housing
with front and back in yellow
thermoplastic polyester. De-
signed in accordance with
Namur DIN 19 234. Delivered
with 2 m cable.
Specifications
Rated operational volt. (Ue)
8.2 VDC
(UB)
7 to 9 VDC
(6 to 35 VDC, all specifica-
tions not observed in
extended supply range)
No-load supply current (Io)
Activated:
≤ 1 mA
Not activated:
≥ 2.2 mA
Protection
None
Frequency of operating
cycles (f)
500 Hz
Rated operating dist. (Sn)
DR 3 G
3 mm
DR 6 G
5 mm
DR 10 G
10 mm
Reference object:
Grounded steel plate.
Other objects:
Refer to "Reduction
Factors", Techn. information
Ambient temperature
Operating
-20° to +60°C (-4° to +140°F)
Storage
-20° to +60°C (-4° to +140°F)
Degree of protection
IP 67 (Nema 1, 3, 4, 6, 13)
Ordering Key
Type Selection
DR 3 G
