Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 14 of 92
TA = 25°C, unless otherwise noted.

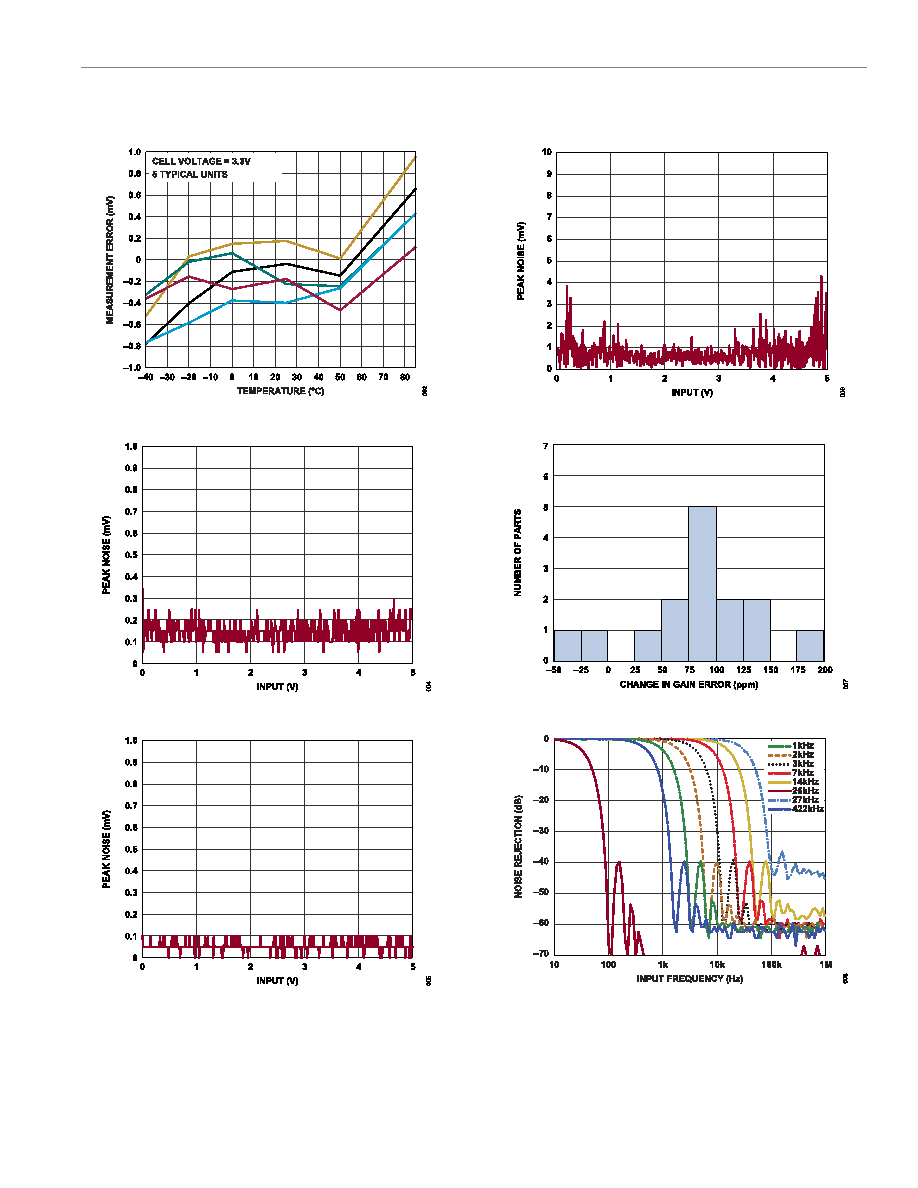

Figure 3. Cell 18 Measurement Error vs. Temperature
Figure 4. Measurement Noise vs. Input, Normal Mode
Figure 5. Measurement Noise vs. Input, Filtered Mode
Figure 6. Measurement Noise vs. Input, Fast Mode
Figure 7. Measurement Error Due to IR Reflow
Figure 8. Noise Filter Response
