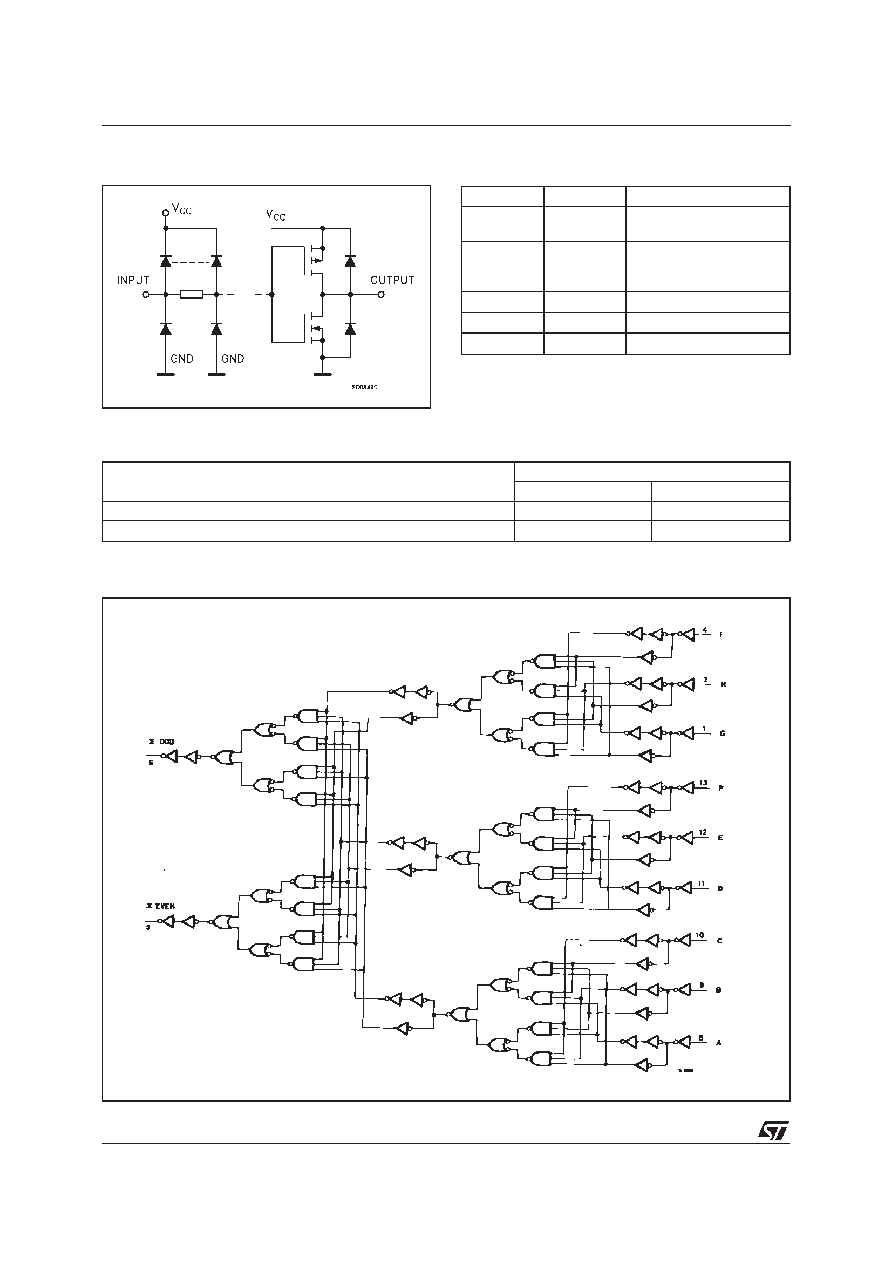

background image
INPUT AND OUTPUT EQUIVALENT CIRCUIT
TRUTH TABLE
NUMBER OF INPUTS A THRU I THAT ARE HIGH
OUTPUT
ΣEVEN
ΣODD
0, 2, 4, 6, 8
H
L
1, 3, 5, 7, 9
L
H
PIN DESCRIPTION
PI N No
SYMBOL
NAME AND FUNCT ION
5, 6
ΣEVEN
ΣODD
Parity Outputs
8, 9, 10, 11,
12, 13, 1, 2,
4
A to I
Data Inputs
3
NC
No Connection
7
GND
Ground (0V)
14
VCC
Positive Supply Voltage
LOGIC DIAGRAM
74AC280
2/8
