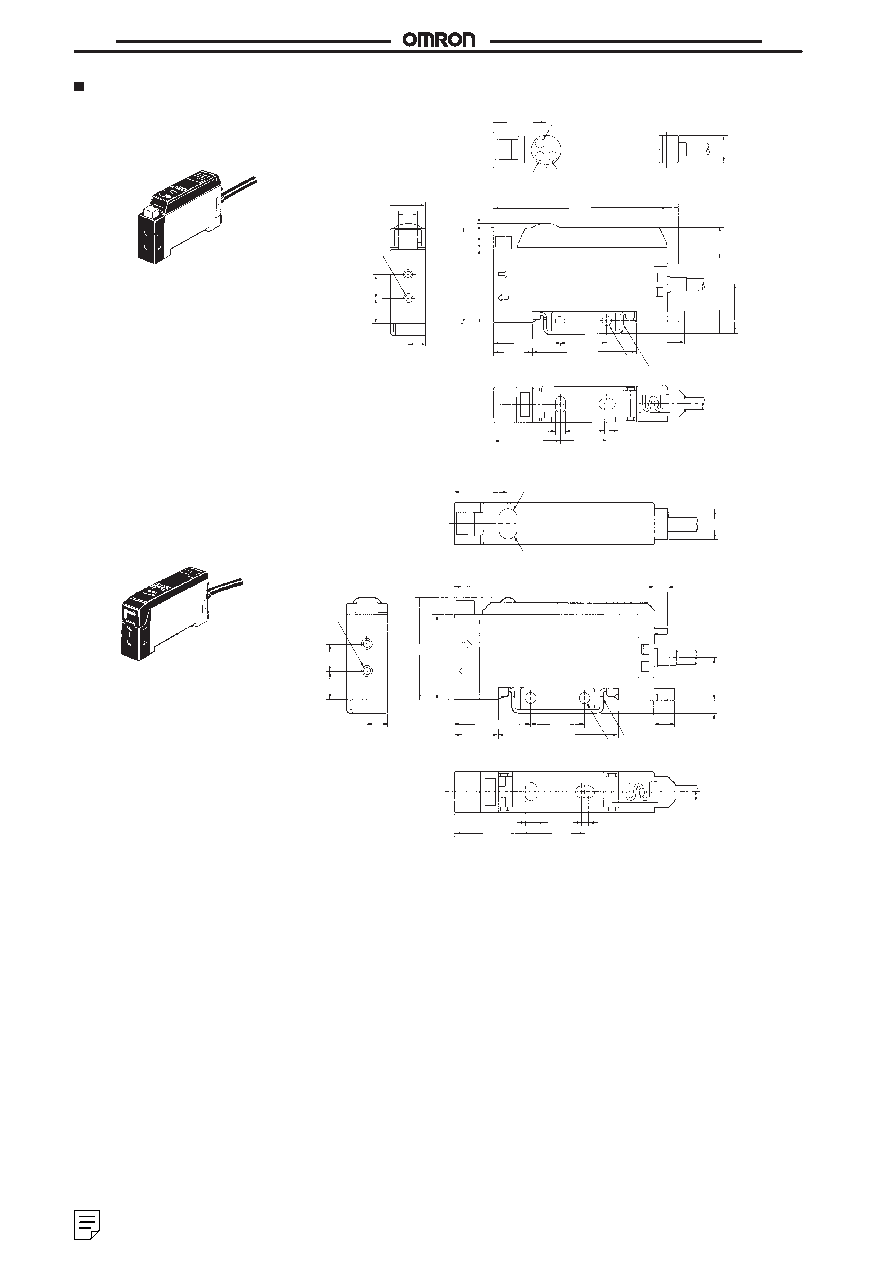

E3X
E3X
12
Amplifier
E3X-T11
E3X-T21
Cord:
2-m
polyvinyl
chloride-covered
cord
(4-mm dia., 3 cores*)
Weight: Approx. 100 g
*The cords for the E3X-T21 model has 6 cores.
Light reception indicator
Stable operation
indicator
Tuning indicator
Mounting bracket (removable)
12
6.5
Two, 2.4
8.4
1.2
25
4.2
4
11
12.5
3.9
6
3.2 dia.
22.5
13
16
2
9
0.4
6
3.4
17.8
59
32
8
16
35.5
22.5
E3X-H11
E3X-A
jj
E3X-F
jj
E3X-VG
jj
Cord:
2-m
polyvinyl
chloride-covered
cord
(4-mm dia., 5 cores*)
Weight: Approx. 100 g
*The cords for the E3X-A11, E3X-A41, and
E3X-VG11 models have 3 cores.
Light reception indicator
Stable operation indicator
9
Two, 2.4 dia.
8.4
6
25
4
3.9
Mounting bracket (removable)
3.2 dia.
16
13
16
2
3.4
6
15.8
59
30
8
22.5
35.5
12.5
22.5
55
